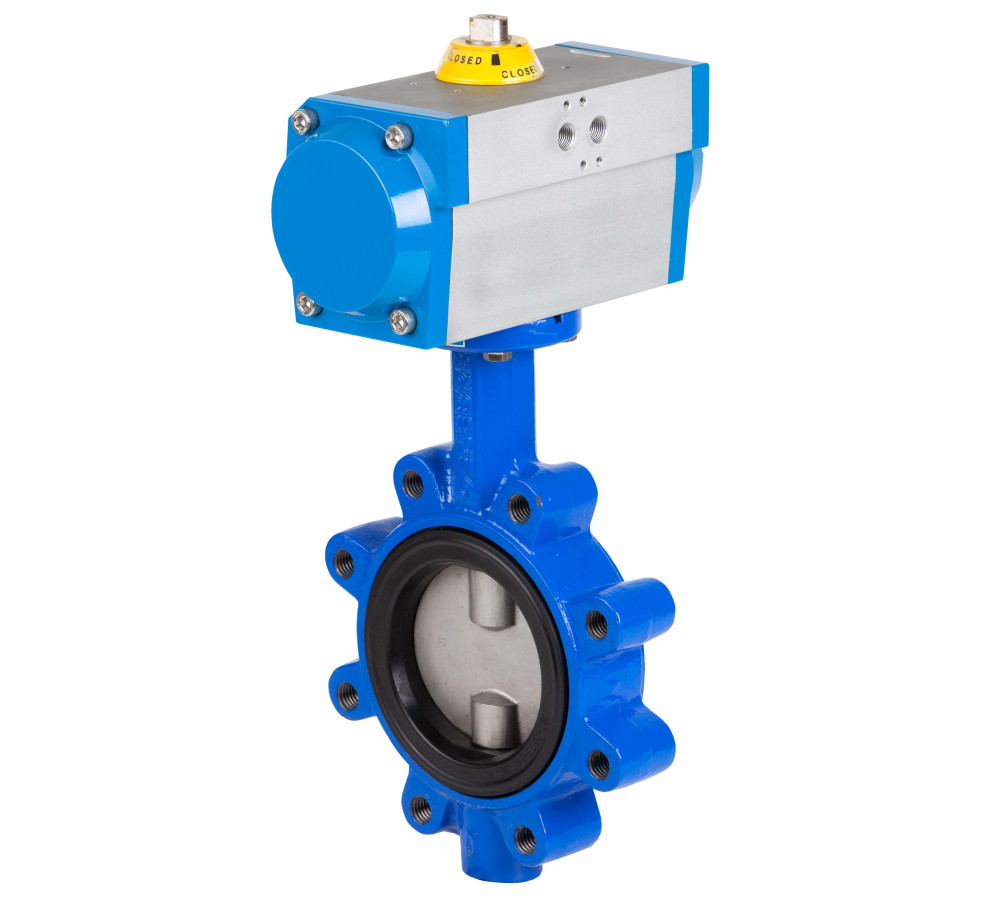

Butterfly valve LUG type (ANSI flanges)

Butterfly valve LUG type (ANSI flanges).
Body: ductil iron GGG-40. Disc: CF8M (316).
Seat: EPDM. Stem o’ring NBR.
Working temperature -20ºC +120ºC.
Mounting actuator according to ISO 5211 std.
Handle up to 10” with gear operator from 12”.
With Gen-air actuator.
-4ºF + 248ºF

Reference: 5508A

Gen-Air Actuator technical sheet
Valve Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
5508A 09 48 DOUBLE ACTING ACTUATOR: GN OR GNP 1 6.63 1/1
5508A 10 85 V. 2108A 2"1/2 W/ACT. GN-25 S5 1 9.98 1/1
5508A 12 64 V. 2108A 4" W/ACT. GN-20 1 11.83 1/1
5508A 13 65 DOUBLE ACTING ACTUATOR: GN OR GNP 1 15.17 1/1
5508A 14 65 V. 2108A 6" W/ACT GN-25 1 17.3 1/1
5508A 16 67 V. 2108A 6" W/ACT GN-35 1 25.78 1/1
5508A 18 68 V. 2108A 10" W/ACT GN-40 1 37.5 1/1
5508A 20 69 V. 2108A 12" W/ACT GN-45 1 56.9 1/1
5508A 22 57 V. 2108A 14" W/ACT GN-60 1 99 1/1
5508A 28 100 V. 2108A 20" W/ACT GN-70 1 247.5 1/1
