Gate valves

•

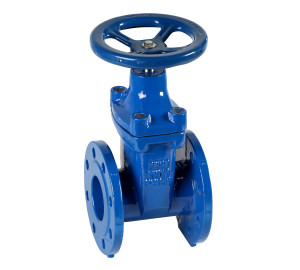

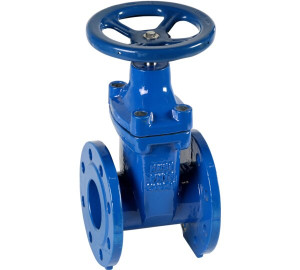

  Gate valve with EPDM seal and ductile iron body PN 16

  Referencia: 2102

  Fixed stem. Design according to DIN 3352, DIN 2501, DIN 3202-F4. Suitable for water conduction. Max. working temp. 80ºC.

•

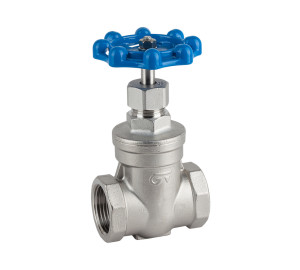

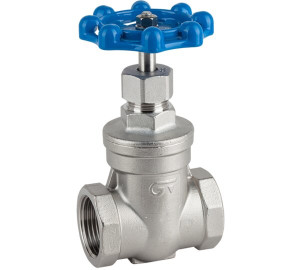

  Gate valve PN 16

  Referencia: 2220

  Constr. stainless steel CF8M (316) investment casting.Gasket: PTFE: gas threaded ends ISO 7-1 (EN 10226-1).Max. pressure: 16 BAR at 120ºC - 10 BAR at 180ºC.Minimum temp.: -30ºC.

•

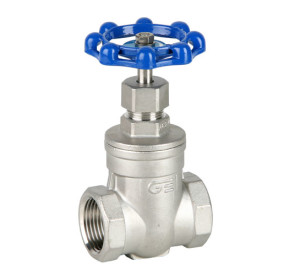

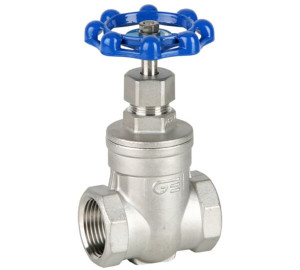

  Gate valve PN-16

  Referencia: 2220N

  Constr. stainless steel CF8M (316) investment casting.Gasket: PTFE: NPT threaded ends.Max. pressure: 16 BAR at 120ºC - 10 BAR at 180ºC.Minimum temp.: -30ºC.230 Psi at 248ºF145 Psi at 356ºF

•

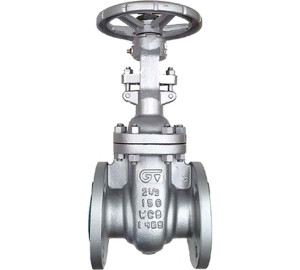

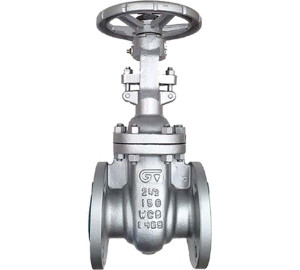

  Gate valve with flanged ends ANSI 150 class

  Referencia: 2229A

  Body and bonnet made of carbon steel ASTM A216 WCB.Design according to API 600. Gate: ASTM a216 WCB + 13 Cr.Face to face according to ASME B16.10. Flanged ends according to ASME B16.5. Working temperature: -20ºC +400ºC.

•

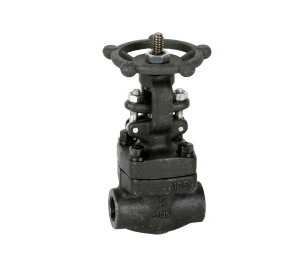

  Gate valve class 800 (2232S-S.W. ends)

  Referencia: 2232N

  Body and bonnet made of forged steel ASTM A105N.Seat material: stainless steel stellited.Gate: astm a182 F6a (trim #8/XU). Bolted bonnet. NPT.Thread ends. (2232S- socket weld ends).Max. working pressure: 140bar/ 2000 Psi Max. working temperature: 420 ...

•

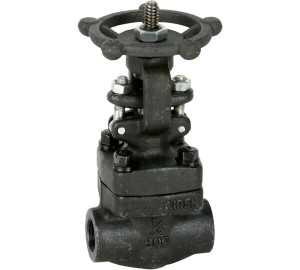

  Gate valve class 800 (2232S-S.W. ends)

  Referencia: 2232S

  Body and bonnet made of forged steel ASTM A105N.Seat material: stainless steel stellited.Gate: astm a182 F6a (trim #8/XU). Bolted bonnet. NPT.Thread ends. (2232S- socket weld ends).

•

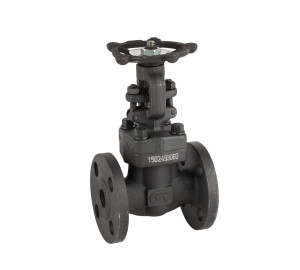

  Gate valve with flanged ends ANSI 150 class

  Referencia: 2232A

  Body and bonnet made of forged steel ASTM A105N.Seat material: stainless steel stellited.Gate: ASTM A182 F6a (Trim #8/XU). Bolted bonnet.Max. working pressure: 19bar/ 275 PsiMax. working temperature: 420ºC / 788ºF

•

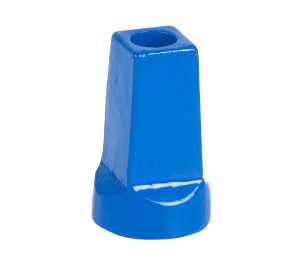

  Optional adapter

  Referencia: D2102
