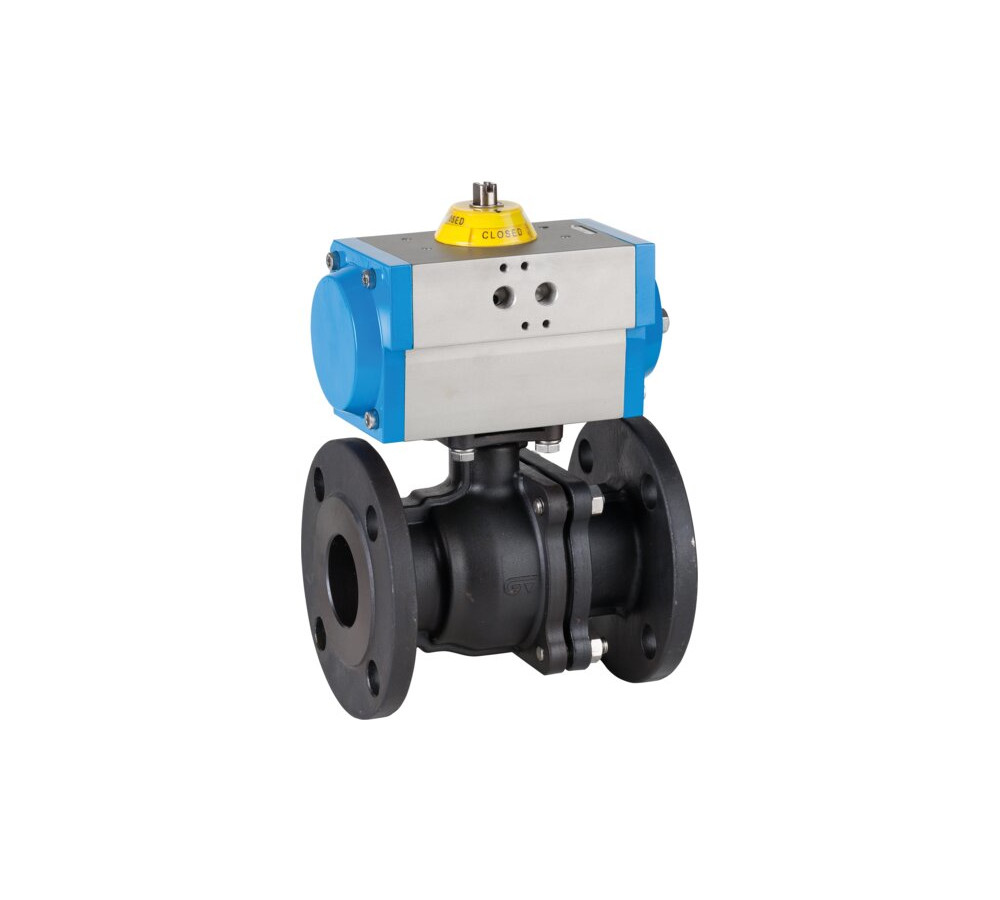

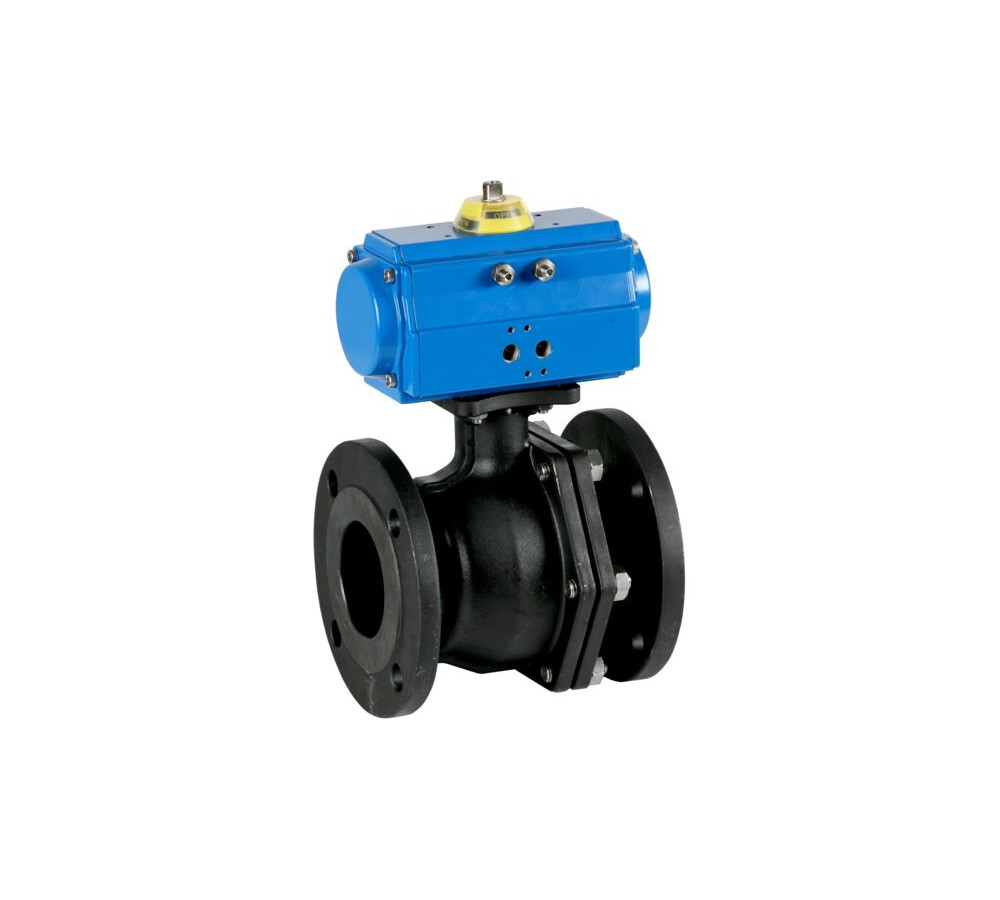

2 pieces ball valve with flanges

2 pieces ball valve with flanges. Direct mounting for actuators s/ISO 5211. Fire safe design. Antiestatic device. Body: carbon steel WCB (investment casting). Ball and stem: AISI 316. Seats: PTFE + 25 % Graphite. Stem o’ring: viton. Max. pressure: 19 kg/cm2. Temp. -30ºC +220ºC. Manually operated by handle with locking system. With Gen-Air actuator

Reference: 5526A

Gen-Air Actuator technical sheet
Valve Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
5526A 04 44 V. 2526A 1/2" WITH GN-05 1 2.3 1/1
5526A 05 44 V. 2526A 3/4" WITH GN-05 1 2.95 1/1
5526A 06 44 V. 2526A 1" WITH GN-05 1 3.7 1/1
5526A 07 63 V. 2526A 1"1/4 WITH GN-15 1 6 1/1
5526A 08 63 V. 2526A 1"1/2 WITH GN-15 1 7.63 1/1
5526A 09 52 V. 2526A 2" WITH GN-17 1 10.75 1/1
5526A 10 64 V. 2526A 2"1/2 WITH GN-20 1 16.27 1/1
5526A 11 65 V. 2526A 3" WITH GN-25 1 21.8 1/1
5526A 12 67 V. 2526A 4" WITH GN-35 1 37.36 1/1
5526A 14 97 2526A WIHT PNEUMATIC ACTUATOR 1 74.65 1/1
