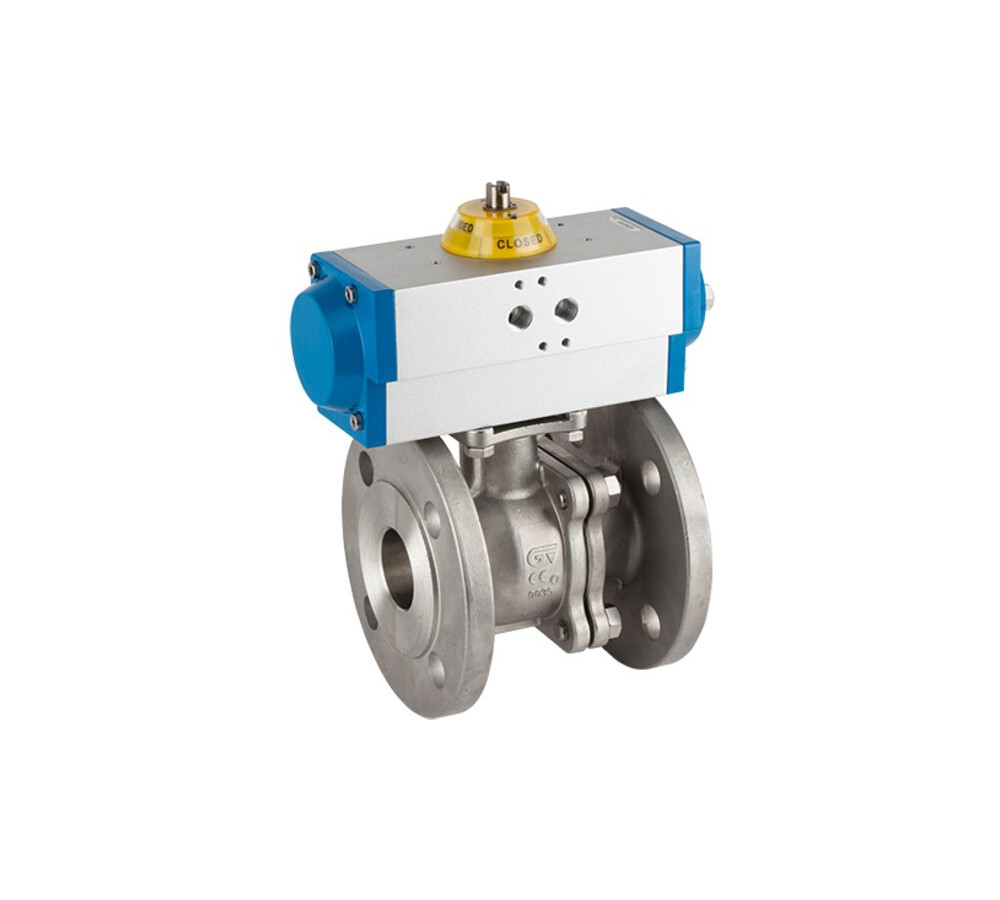

2 pieces ball valve with flanges / Gen-Air Actuator

2 pieces ball valve with flanges. Body: stainless steel CF8M (316). Seats: PTFE + 15% GF. Max. pressure: 19 kg/cm2. Temp.: -30ºC +180ºC. Manually operated by handle. With Gen-Air Actuator

275 Psi -22ºF + 356ºF

Reference: 5528A

Gen-Air Actuator technical sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
5528A 04 44 V. 2528A 1/2" WITH GN-05 1 2.3 1/1
5528A 05 44 V. 2528A 3/4" WITH GN-05 1 2.95 1/1
5528A 06 44 V. 2528A 1" WITH GN-05 1 3.7 1/1
5528A 07 63 V. 2528A 1"1/4 WITH GN-15 1 6 1/1
5528A 08 63 V. 2528A 1"1/2 WITH GN-15 1 7.63 1/1
5528A 09 52 V. 2528A 2" WITH GN-17 1 10.75 1/1
5528A 10 64 V. 2528A 2"1/2 WITH GN-20 1 16.27 1/1
5528A 11 65 V. 2528A 3" WITH GN-25 1 21.8 1/1
5528A 12 67 V. 2528A 4" WITH GN-35 1 37.36 1/1
5528A 16 84 V. 2528A 8" WITH GN-55 1 134.28 1/1
