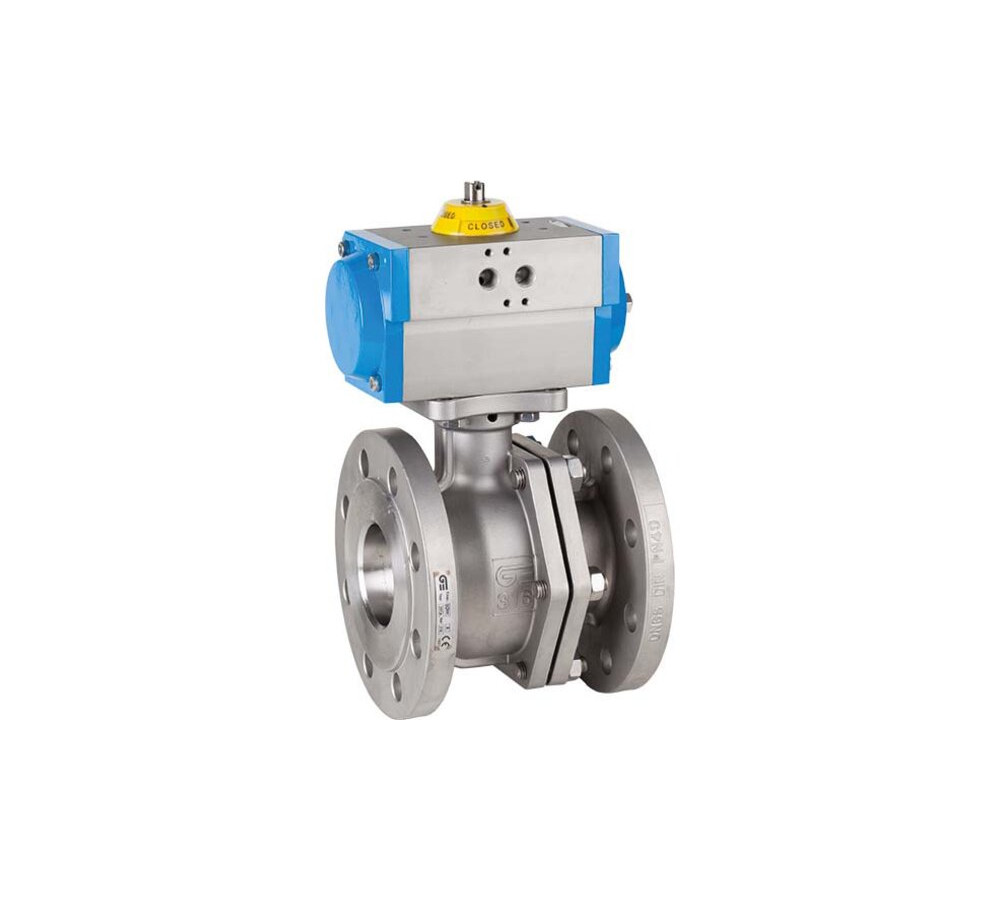

2 pieces ball valve with flanges

2 pieces ball valve with flanges. Body: stainless steel. CF8M (316). Seats: PTFE + 15% GF. Stem o’ring: viton. Max. pressure: 40 BAR. temp.: -30ºC +180ºC. Manually operated by handle. L: DIN 3202 F-4 DN 65 DN0 100. F-5 DN 125 DN 200. With Gen-Air actuator

Reference: 5529

Gen-Air Actuator technical sheet
Valve Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
5529 10 64 V. 2529 2"1/2 WITH GN-20 1 20.7 1/1
5529 11 65 V. 2529 3" WITH GN-25 1 28.48 1/1
5529 12 67 V. 2529 4" WITH GN-35 1 38.46 1/1
