GENEBRE: Ruber expansion joints

Rubber expansion joint-double wave

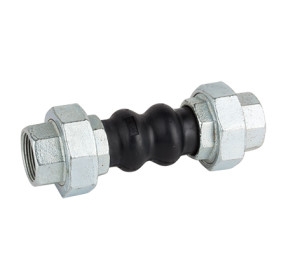

Gas thread, also available npt thread (2830N).Body EPDM. Galvanised gas threaded ends.Max. working pressure: 10 BAR. Temp. -10ºC +105ºC.Le ...

Reference: 2830

NPT thread. Body EPDM. Galvanised gas threaded ends.Max. working pressure: 10 BAR. Temp. -10ºC +105ºC.Length: 200 mm.

Reference: 2830N

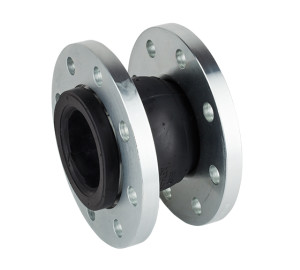

Body: EPDM. Zinc plated DIN PN 10 flanges.Max. working pressure: 10 BAR. Temp. -10ºC +105ºC.

Reference: 2831

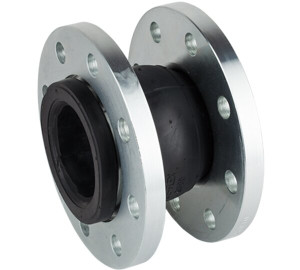

Body: EPDM. Zinc plated ANSI 150 lbs flanges.Max. working pressure: 19 kg/cm2. Temp.: -10ºC +105ºC.275 Psi -14ºF + 221ºF

Reference: 2831A

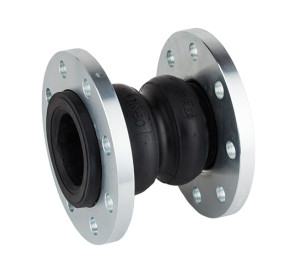

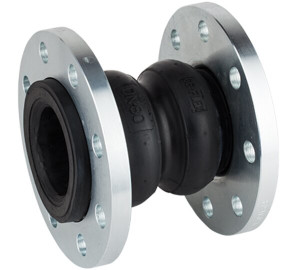

Body: EPDM, zinc plated DIN 10 flanges.Max. working pressure: 10 BAR. Temp.: -10ºC +105ºC.

Reference: 2833

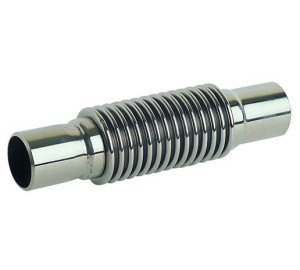

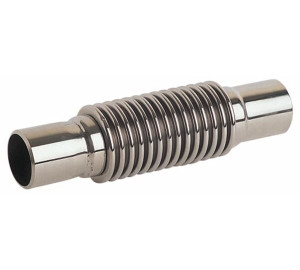

Welded ends, PN 10. Internal liner bellows: stainless steel AISI 304. Stainless steel AISI 304 ends. Max. temp. 300ºC.

Reference: 2834

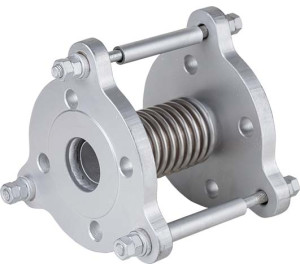

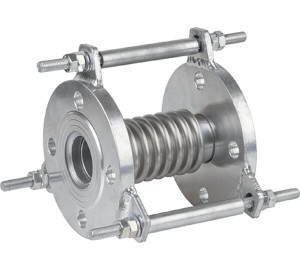

Flanged ends DIN PN 16. Internal liner, bellows and ends: stainless steel AISI 304. Max. working pressure: 16 bar. Max. temp. 300ºC. Limit ...

Reference: 2835E

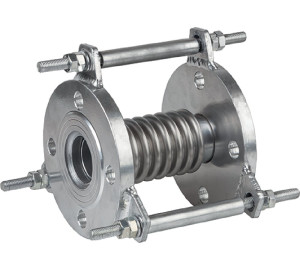

Flanged ends carbon plated steel ANSI 150 lbs. Internal liner bellows: stainless steel AISI 304. Max. working pressure: 19 kg/cm2. Max. temp ...

Reference: 2835AE
