Welded ends

•

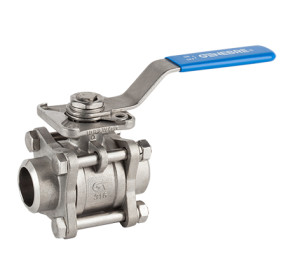

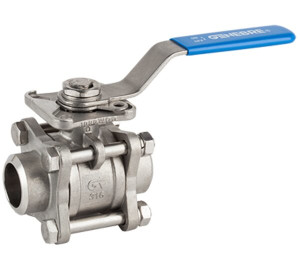

  3 pcs full bore ball valve. Butt weld ansi b 16.25

  Referencia: 2026

  Const.: stainless steel CF8M (316) investment casting. Seats and seats: PTFE +15% GF o’ring stem: viton PN 63. Temp. -25ºC +180ºC. Manually operated by handle. Direct assembling ISO 5211 with locking system.1000 WOG -13ºF + 356ºF

•

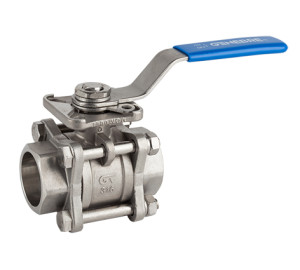

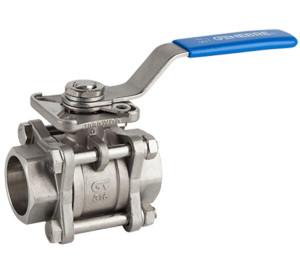

  3 pcs full bore ball valve socket weld ANSI B 16.11

  Referencia: 2027

  Const.: stainless steel CF8M (316) investment casting. Seats and seals: PTFE +15% GF o’ring stem: viton. PN 63. Temp. -25ºC +180ºC. Manually operated by handle. Direct assembling ISO 5211 with locking system.1000 WOG -13ºF + 356ºF

•

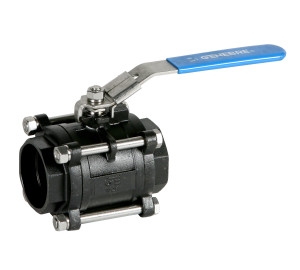

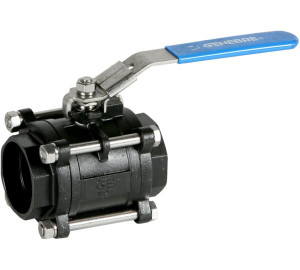

  3 pcs full bore ball valve socket weld ANSI B 16.11

  Referencia: 2034S

  Const. carbon steel “WCB” (investment casting). Ball and stem: stainless steel 316. Seats: PTFE + 15% GF. 1000 wog. Temp. -25ºC +180ºC. Manually operated by handle with locking system.

•

  Tank bottom full bore ball valve

  Referencia: 2052

  Const. stainless steel CF8M (316) and 316l (tank bottom).Ends: gas thread ISO 7-1 (EN 10226-1) and tank bottom.Seats: PTFE + 15% FV. O’ring stem: viton. PN 63.Temp. -25ºC +180ºC. Direct assembling ISO 5211.Manually operated by handle with locking ...

•

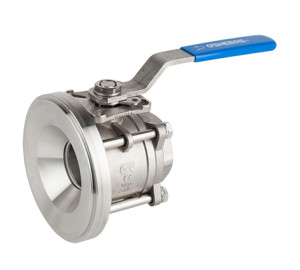

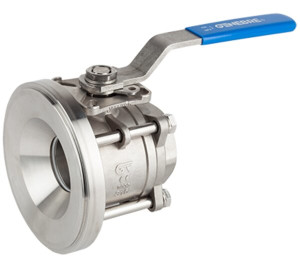

  Tank bottom full bore ball valve

  Referencia: 2053

  Const. stainless steel CF8M (316) and 316l (tank bottom).Ends: butt weld ANSI B 16.25 and tank bottom.Seats: PTFE + 15% FV. O’ring stem: viton.PN 63. Temp. -25ºC +180ºC. Direct assembling ISO 5211.Manually operated by handle with locking system.

•

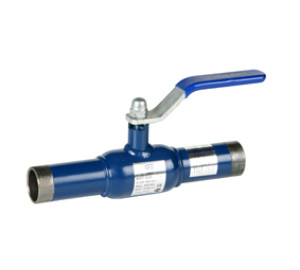

  1 pc reduce bore ball valve. District heating

  Referencia: 2035

  Const. carbon steel DIN ST-37. Extended butt weld ends.Ball: SS 304. stem: ss 303. Seats: PTFE + graphite.O’rings stem: viton. PN 25/40. Temp. -30ºC +200ºC.Manually operated by handle, until 6”. Gear operator >6”.
