GENEBRE: Ball valves

Válvulas de esfera

Ball valve. Stainless Steel lever manual control.

Referencia: 3030I
PN 25. Full bore. Body nickel plated brass UNE-EN 12165. PTFE seats. Stem with double o-ring. Threaded ends ISO 228/1 - F-F. Max. temp. 110ºC. AISI 304 stainless Steel lever manual control.

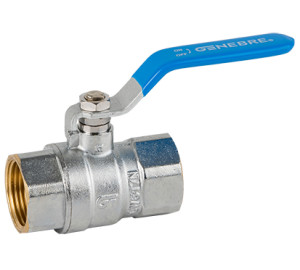

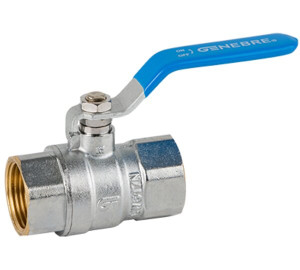

Heavy ball valve

Referencia: 3020
PN 40. Full bore. Body chrome-plated brass UNE-EN 12165. PTFE seats. Threaded ends ISO 228/1 - F-F. Max. temp. 110ºC. Steel lever manual control.Also available NPT thread (3020N).

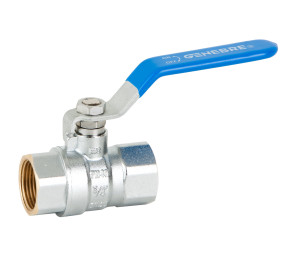

Ball valve - heavy series

Referencia: 3020N
PN 40. Full bore. Body chrome plated brass UNE-EN 12165. PTFE seats. NPT threaded ends F-F ANSI B 1.20.1. Max. Temp. 110 ºC. Steel lever manual control.

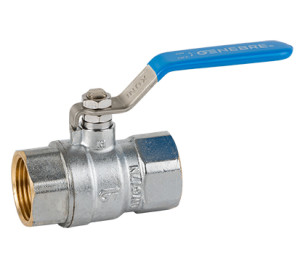

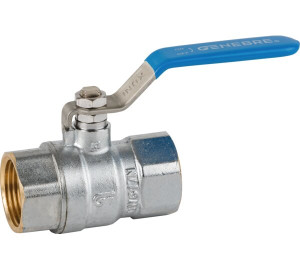

Heavy ball valve. Stainless steel lever manual control.

Referencia: 3021
PN 40. Full bore. Body chrome plated brass UNE-EN 12165. PTFE seats. Gas threaded ends (BSP) F-F - ISO 228/1. Max. Temp. 110ºC. AISI 304 stainless steel lever manual control.
Ball valve for direct assembling

Referencia: 3023
PN 40. Full bore. Body chrome plated brass UNE-EN 12165. Gas threaded ends (BSP) F-F ISO 228/1. PTFE seats. EPDM o-rings. Max. temp. 110ºC. Actuator connection ISO 5211. Steel lever.Also available NPT thread (3023N).

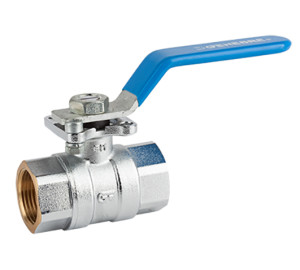

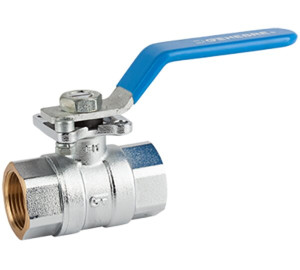

Ball valve for direct assembling

Referencia: 3023N
PN 40. Full bore. Body chrome plated brass UNE-EN 12165. NPT threaded ends F-F ISO ANSI B 1.20.1. PTFE seats. EPDM o-rings. Max. temp. 110ºC. Actuator connection ISO 5211. Steel lever handle.

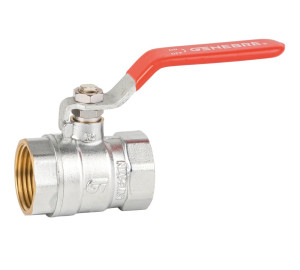

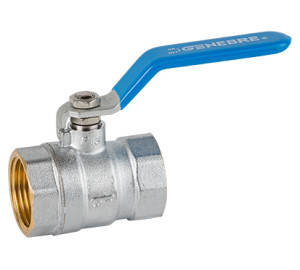

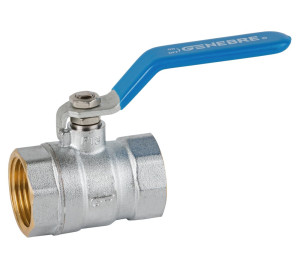

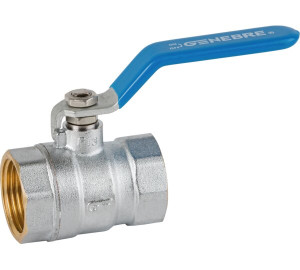

Light ball valve

Referencia: 3028
PN 25. Standard bore. Body chrome plated brass UNE-EN 12165. PTFE seats. Gas threaded ends (BSP) F-F - ISO 228/1. Max. Temp. 110ºC. Steel lever manual control.

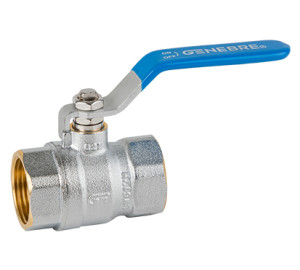

Ball valve

Referencia: 3029
PN 25. Full bore. Body chrome plated brass UNE-EN 12165. PTFE seats. Threaded ends F-F - ISO 228/1. Max. temp. 110ºC. Steel lever manual control.
