GENEBRE: Fire protection valves

Fire protection valves

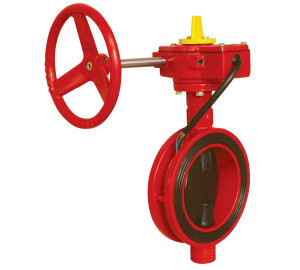

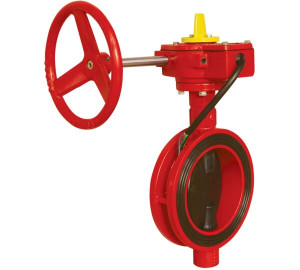

Wafer type butterfly valve with gear-box and limit switch. PN 10/16. ANSI 150 lbs

Referencia: 2113
Body made of ductile iron GGG.40. Disc: D.I + EPDM.Design according to API 609. Face to face according to ASME B16.10.Working pressure 300 PSI. Working temperature: 0ºC +80ºC.UL/FM certification.

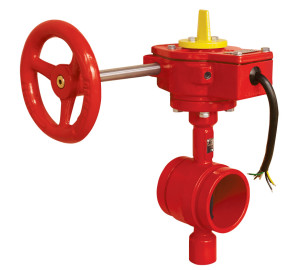

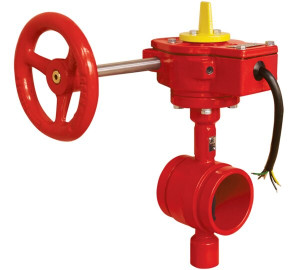

Grooved ends Butterfly valve with gear-box and limit switch

Referencia: 2114
Body made of ductile iron GGG.40. Disc: D.I + EPDM.Design according to API 609. Grooved standard AWWA C606.Face to face according to MSS SP-67.Working pressure 300 PSI. Working temperature: 0ºC +80ºC.UL/FM certification.
Grooved ends Butterfly valve with gear-box and limit switch

Referencia: 2114D
Body made of ductile iron GGG.40. Disc: D.I + EPDM.Design according to API 609. Grooved standard AWWA C606.Face to face according to ASME B16.10.Working pressure 300 PSI. Working temperature: 0ºC +80ºC.UL/FM certification.

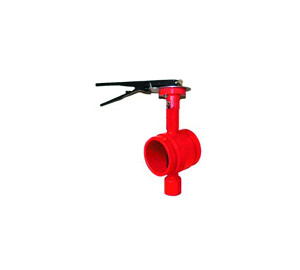

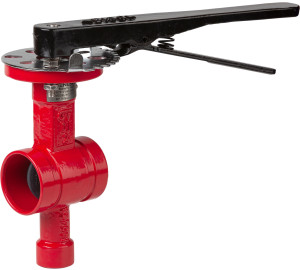

Grooved ends butterfly valve with handle

Referencia: 2120
With handle up to 8" and with gear operator from 10".Body made of ductile iron GGG.40. Disc: D.I + EPDM.Design according to API 609. Grooved standard AWWA C606.Face to face according to MSS SP-67.Working pressure 300 PSI. Working temperature: 0ºC +8 ...
VALVULA MARIPOSA CON RANURAS

Referencia: 2120D

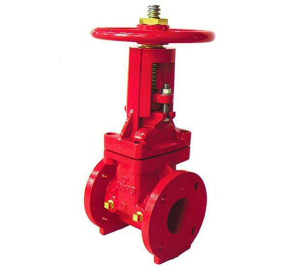

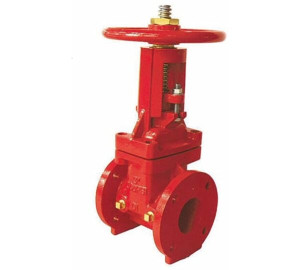

Gate valve with EPDM seat – Flanged ends.

Referencia: 2094
Gate valve with EPDM seat – Flanged ends.Body and bonnet made of ductile iron GGG.40.Design according to AWWA C515. Flanged ends standard ASME B16.42.Face to face according to ASME B16.10. Rising stem (OS&Y).Working pressure 300 PSI. Working temper ...

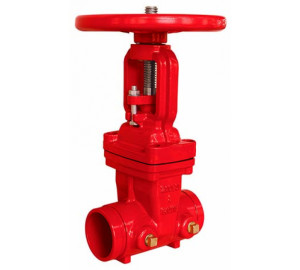

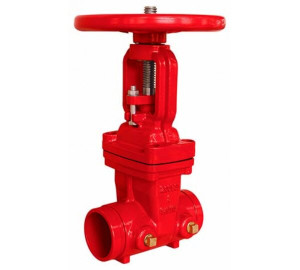

Gate valve with EPDM seat – Groove ends

Referencia: 2100
Body and bonnet made of ductile iron GGG.40.Design according to AWWA C515. Grooved standard AWWA C606.Face to face according to ASME B16.10. Rising stem (OS&Y).Working pressure 300 PSI. Working temperature: 0ºC +80ºC.UL/FM certification.
Gate valve with EPDM seat – Groove ends

Referencia: 2100D
Body and bonnet made of ductile iron GGG.40.Design according to AWWA C515. Grooved standard AWWA C606.Face to face according to ASME B16.10. Rising stem (OS&Y).Working pressure 300 PSI. Working temperature: 0ºC +80ºC.UL/FM certification.
