GENEBRE: Balancing valves

Balancing valves

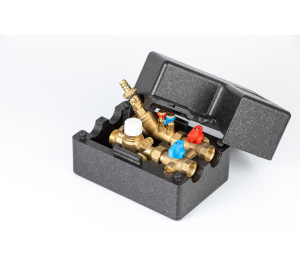

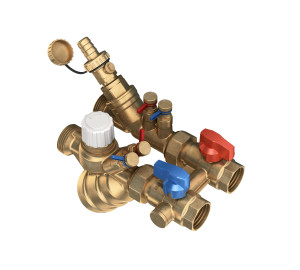

Manual Fan Coil Unit (FCU)

Referencia: 73717M
PN 25. DZR brass construction UNE-EN 12165. PTFE and EPDM PEROX seats. Gas threaded ends (BSP) ISO 228/1. Temperature range -10ºC to 110ºC. The FCU has composed by manual valve, 800 microns filter with flushing, by pass isolation valves and a ventu ...

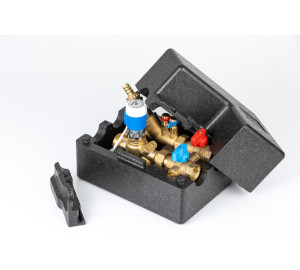

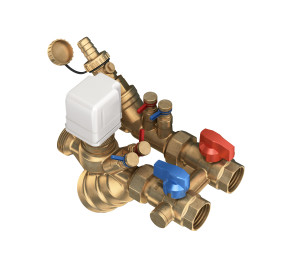

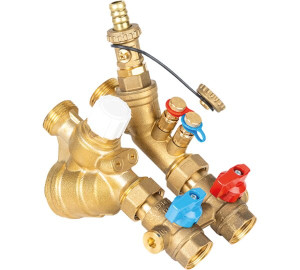

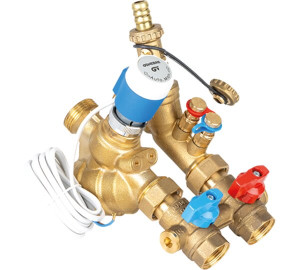

Motorized Fan Coil Unit (FCU)

Referencia: 73717A
PN 25. DZR brass construction UNE-EN 12165. PTFE and EPDM PEROX seats. Gas threaded ends (BSP) ISO 228/1. Temperature range -10ºC to 110ºC. The FCU has composed by PICV control valve with actuator, 800 microns filter with flushing, by pass isolatio ...

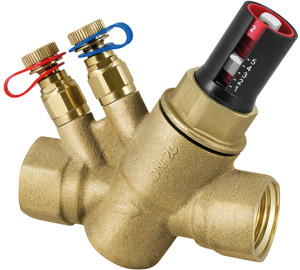

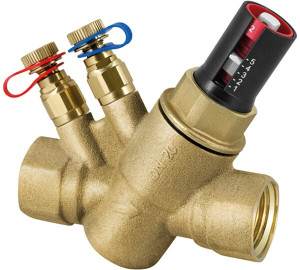

Dynamic balancing valve

Referencia: 70874
PN 16. Brass construction acc/UNE-EN 12165. Polymer cartridge with EPDM diaphragm. Threaded ends gas (BSP) F - F acc/ISO 228/1. Indicator with graduated scale. Pressure taps connection G1/8" female. Working temperature from - 20ºC to 120ºC. Applian ...

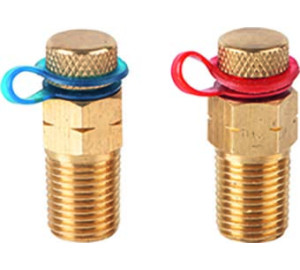

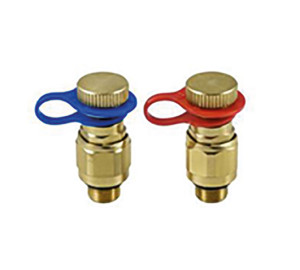

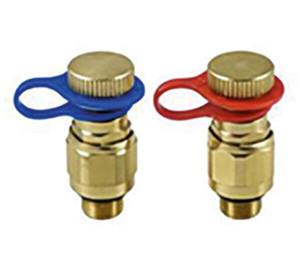

Pressure inlets for balancing valve

Referencia: 70621
Inlet to be set up on thereaded 3073 and 70874 balancing valves, used for indirect reading of transfer flow rate.

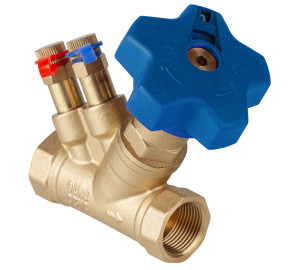

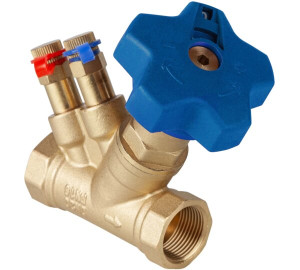

Static balancing valve

Referencia: 3074
PN 16. Body brass construction UNE-EN 12165. Gas threaded ends (BSP) ISO 228/1. EPDM sealing. Double regulation. Pressure inlets G1/4" included. Working temperature -20ºC a 120ºC.

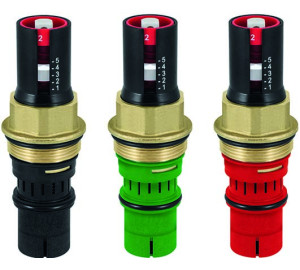

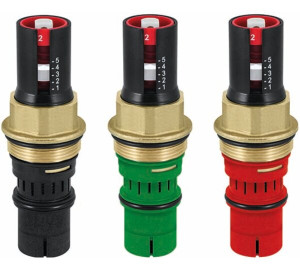

Cartridge for balancing valve (art. 70874)

Referencia: 78454
Cartridge for automatic flow control valve

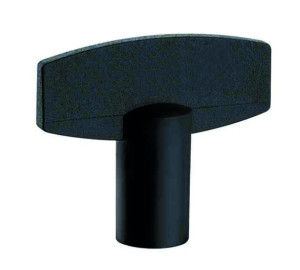

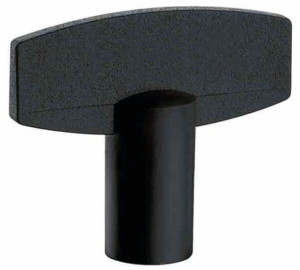

Spanner for cartridge ajustment. for balancing valve (art. 70874)

Referencia: 72961
It allows adjusting the flow rate to the desired value by acting on the cartridge of balancing valve

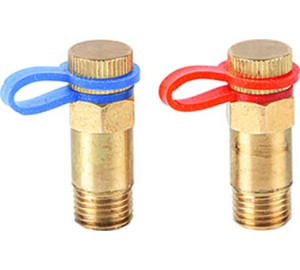

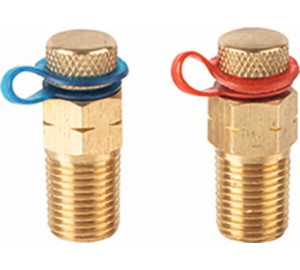

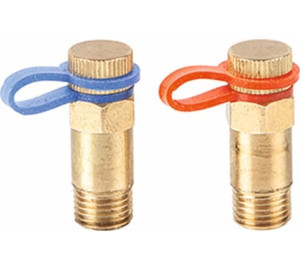

Pressure inlets for balancing valve

Referencia: T3074
Inlet to be set up on thereaded 3074 balancing valve, used for indirect reading of transfer flow rate.
