GENEBRE: Sanitary line valves

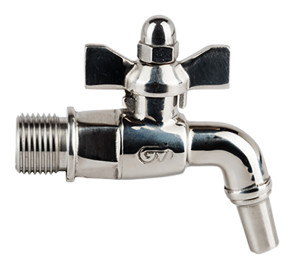

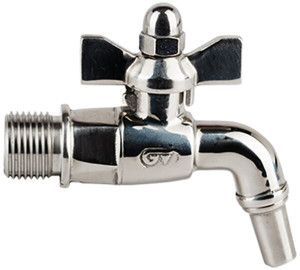

Stainless steel barrel ball valve

Referencia: 2918
PN 16. Reduced bore. Body stainles steel AISI 316. PTFE seats. Male gas threaded (BSP) inlet ISO 228/1. Max. temp. 110ºC. Stainless steel butterfly handle operated.

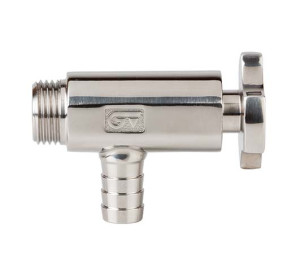

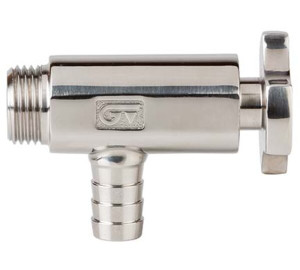

Upper level cock with hose nipple

Referencia: 2921
Stainless steel material AISI 304. Seat PTFE material. Thread end 1/2” ISO 228/1. Hose nipple dimension: 14 mm. Max. working pressure 10 bar.

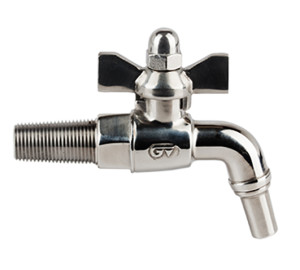

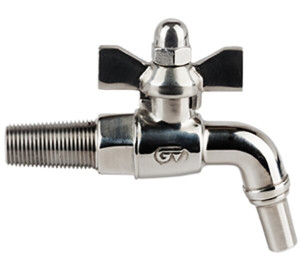

Stainless steel barrel ball valve

Referencia: 2919
PN 16. Reduced bore. Body stainless steel AISI 316. Male threaded conical inlet. Max. temp. 110ºC. Stainless steel butterfly handle operated.

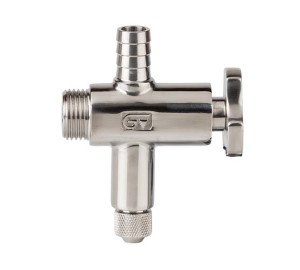

Lower level cock with hose nipple and drain

Referencia: 2922
Stainless steel material AISI 304. Seat PTFE material. Thread end 1/2” ISO 228/1. Hose nipple dimension: 14 mm. Max. working pressure 10 bar.

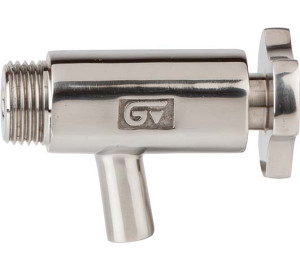

Sampling valve smooth pipe

Referencia: 2947
Stainless steel material AISI 304. Seat PTFE material. Thread end 1/2” ISO 228/1. Max. working pressure 10 bar.

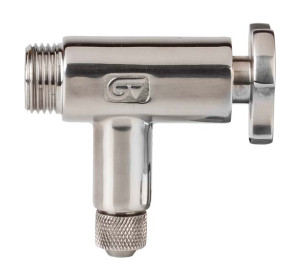

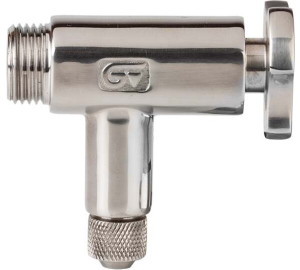

Sampling valve with lower valve

Referencia: 2950
Stainless steel material AISI 304. Seat PTFE material. Thread end 1/2” ISO 228/1. Max. working pressure 10 bar.

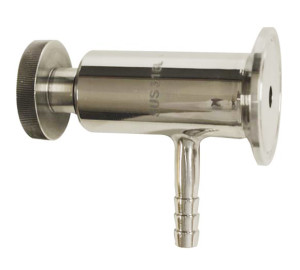

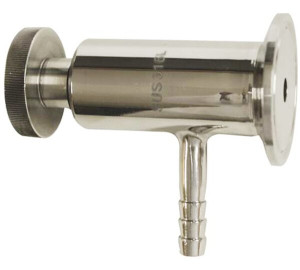

Clamp end sampling valve

Referencia: 2951
Body: stainless steel 316L. Silicone sealing. Clamp ends in inches. Sanitary polish. Max. working pressure: 10 bar.

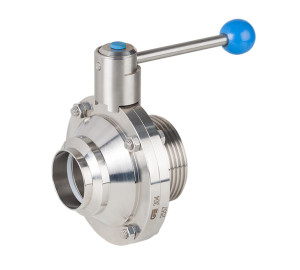

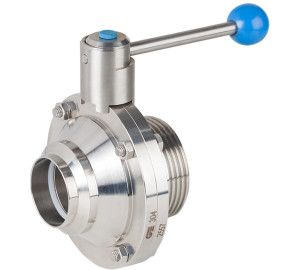

Sanitary ball valve end threaded/welded

Referencia: 2932
Construction: stainless steel AISI 304. ThreadedDIN 11851/welded end. Seats: PTFE, gasket: NBR.Maximum working pressure: 10 bar. Maximum temperature:120ºC. Manually operated: 2 position.
