GENEBRE: Pressure reducer valves

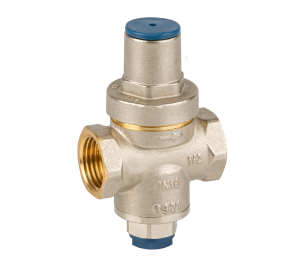

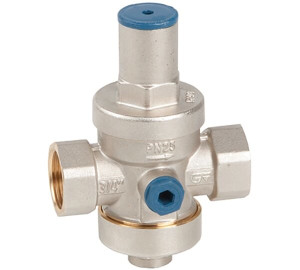

Redux-GE pressure reducing valve - Piston type

Referencia: 3318
PN 25. Nickel plated brass construction UNE-EN 12165. AISI 303 stainless steel sealing. Zinc plated steel spring EN-10270. EPDM perox joints. Gas threaded ends (BSP) F-F - ISO 228/1. Max. working temp. 130ºC.Also available NPT thread (3318N).

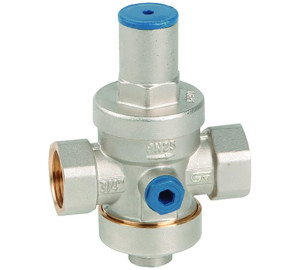

Redux-GE piston pressure reducer valve

Referencia: 3318N
PN 25. Chrome plated brass construction UNE-EN 12165. AISI 303 stainless steel sealing. Zinc plated steel spring EN-10270. EPDM perox joints. Gas threaded ends NPT F-F - ANSI B 1.20.1. Max. working temp. 130ºC. Max. inlet pressure 25 bar.400 WOG 266 ...

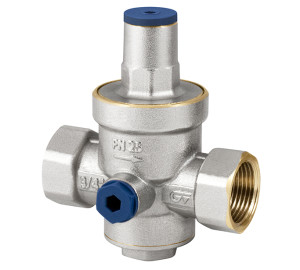

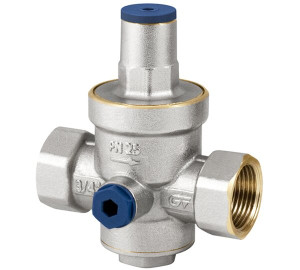

"Rinoxdos" pressure reducing valve - Piston type

Referencia: 3320E
PN 25. Nickel plated brass UNE-EN 12165. Sealing inox AISI 304 and EPDM rubber. Galvanized steel spring. EPDM o-rings. Gas threaded ends (BSP) F-F ISO 228/1. Adjustable range from 0,5 to 6 bar. Outlet setting pressure 3 bar.

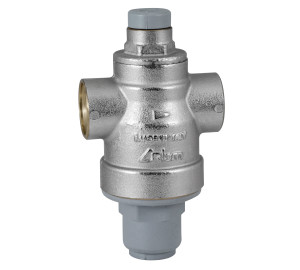

"Rinoxdue" pressure reducing valve - Piston type

Referencia: 3320
PN 25. Body chrome plated brass UNE-EN 12165. Sealing inox AISI 303. Gas threaded ends (BSP) F-F ISO 228/1. Adjustable range from 0,5 to 7 bar. Outlet setting pressure 3 bar.

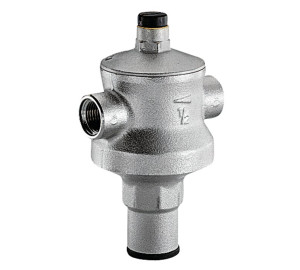

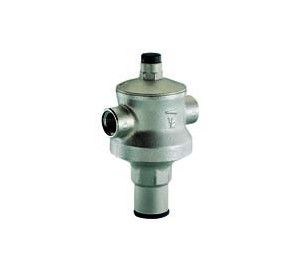

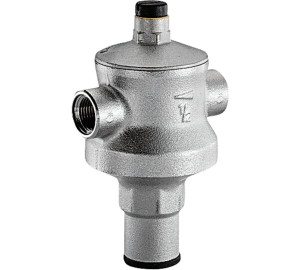

“Rinox” membrane pressure reducing valve

Referencia: 3340
PN 40. Full flow. Body chrome plated brass UNE-EN 12165. Sealing inox AISI 304. Zinc plated silicone steel spring o-ring NBR. Membrane: reinforced EPDM. Max. input pressure 16 bar. Gas threaded ends (BSP) F-F - ISO 228/1.

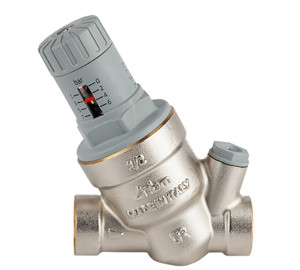

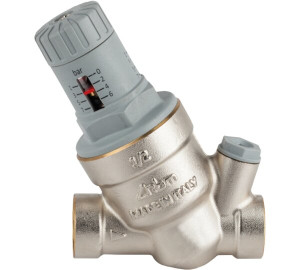

Membrane pressure reducing valve with filter

Referencia: 3324
PN 16. Body nickel plated DZR anticorrosion brass construction UNE-EN 12165. Membrane NBR. Filter stainless steel AISI 302, 800 mircons. O-rings NBR. Gas threaded ends (BSP) F-F ISO 228/1. Max. working temperature 80ºC. Max. inlet pressure 16 bar. A ...

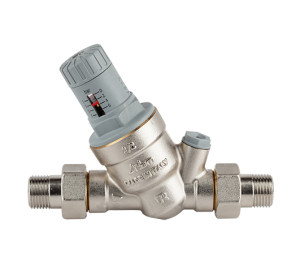

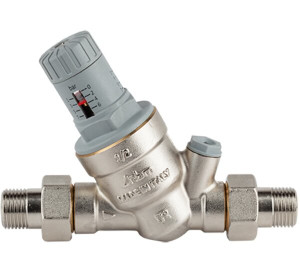

Membrane pressure reducing valve with connectors and filter

Referencia: 3324R
PN 16. Body nickel plated DZR anticorrosion brass construction UNE-EN 12165. Membrane NBR. Filter stainless steel AISI 302, 800 microns. O-rings NBR. Gas threaded ends with connectors (BSP) M-M ISO 228/1. Max. working temperature 80ºC. Max. inlet pr ...

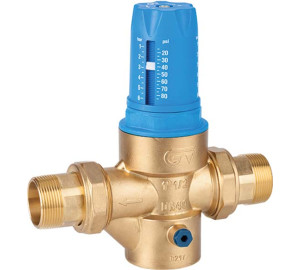

Membrane pressure reducing valve

Referencia: 3342
PN 25. DZR anticorrosion brass construction UNE-EN 12165. EPDM membrane with polyamide reinforced. Filter stainless steel AISI 304, 500 microns. EPDM joints. Steel galvanized spring. Threaded ends with taper connectors M-M EN 10226. Max. working ...
