Ball valves wafer type

•

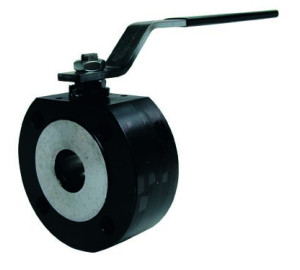

  Wafer type. 1 pc full bore ball valve mounting between flanges PN 16

  Referencia: 2105

  Body: carbon steel A-105. Ball, stem and cover: stainless steel AISI 304. Seats and seals: PTFE. Temp. -20ºC +180ºC. Manually operated by handle.

•

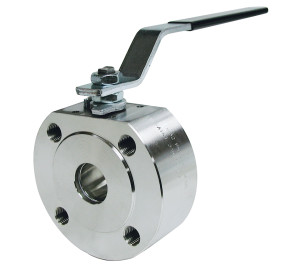

  Wafer type. 1 pc full bore ball valve mounting between flanges PN 16

  Referencia: 2110

  Body ball and stem: stainless steel AISI 316.Seats and seals: PTFE Temp. -20ºC +180ºC.Manually operated by handle.

•

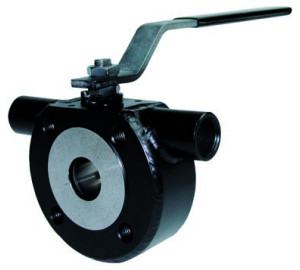

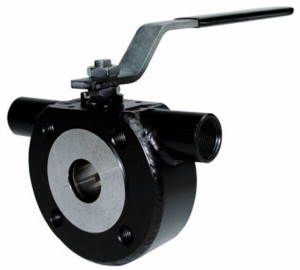

  Wafer type. 1 pc full bore ball valve with heating chamber mounting between flanges PN 16

  Referencia: 2115

  Body: forged carbon steel A-105. Ball stem and cover: stainless steel AISI 304. Seats and seals: PTFE Temp. -20ºC +180ºC. Manually operated by handle.

•

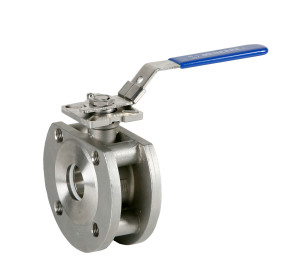

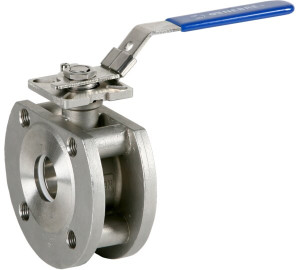

  Wafer type. 1 pc full bore ball valve mounting between flanges PN 16

  Referencia: 2118

  Const. stainless steel CF8M (316) investment casting. Ball and stem: stainless steel 316. Seats: PTFE + 15% GF. PN 16. Temp. -25ºC +180ºC. Direct assembling ISO 5211. Manually operated by handle with locking system.

•

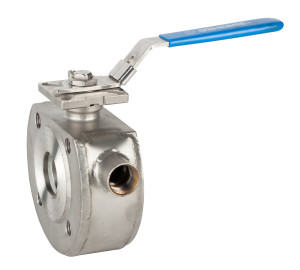

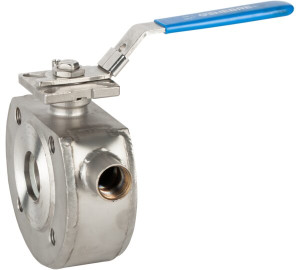

  Wafer type - 1 Pc full bore ball valve with heating chamber. Mounting between flanges PN 16

  Referencia: 2119

  Const. stainless steel CF8M (316) Investment casting. Ball and stem: stainless steel 316. Seats: PTFE + 15% GF. PN 16. Temp. -25 ºC +180 ºC. Direct assembling ISO 5211. Manually operated by handle with locking system.
