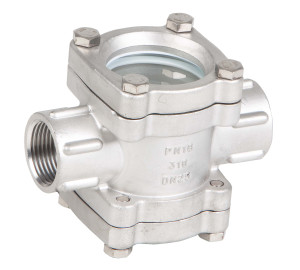

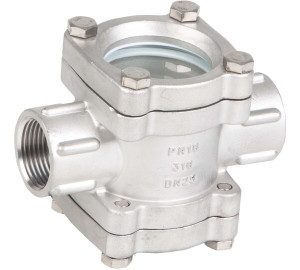

  Sight glass, double glass

  Referencia: 2240

  Constr. body stainless steel AISI 316. Gas ISO 7-1 (EN 10226-1) threaded ends.Glass: normal with thermal treatment. On request: “pyrex” glass (2240P).Max. working pressure: 16 BAR at 50ºC.Max. working temp.: 200ºC at 10 BAR.

•

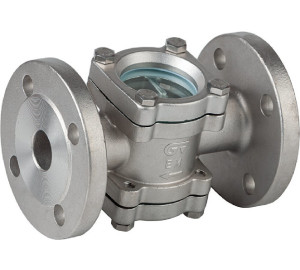

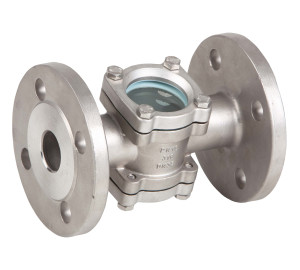

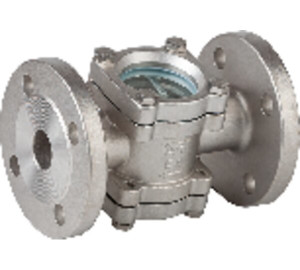

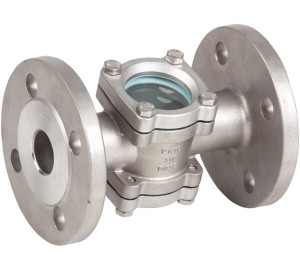

  Sight glass, double glass

  Referencia: 2250

  Constr. body stainless steel AISI 316. Ends: flanges din PN 16. Glass: normal with thermal treatment on request: “pyrex” glass (2250P). Max. working pressure: 16 BAR at 50ºC. Max. working temp.: 200ºC at 10 BAR.

•

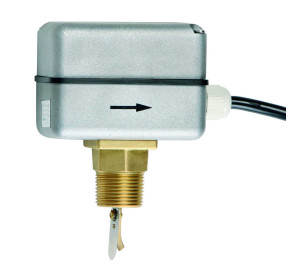

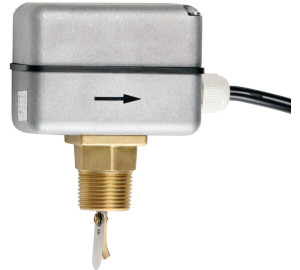

  Liquid flow switch

  Referencia: 2848

  Aluminium alloyed box. Brass connector. Blade: stainless steel for pipe from 1” to 8”. Threaded connection 1” ISO 7/1 (EN 10226-1). Max. temp. 110ºC. Max. pressure 10 bar. 250V - 10A. Protection IP-64.

•

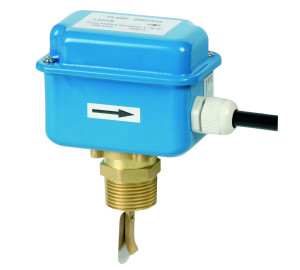

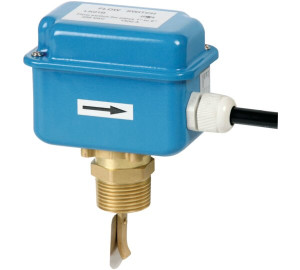

  Liquid flow switch

  Referencia: 2850

  Coated steel box. Brass connector. Blade: stainless steel for pipe from 1” to 8”. Threaded connection 1” ISO 7/1 (EN 10226-1). Max. temp. 110ºC. Max. pressure 10 bar. 250V - 10A. Protection: IP 54.
