Transmisores

•

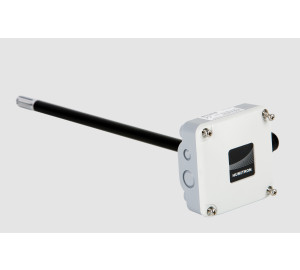

  Humidity/temperature transmitter

  Referencia: 8165

  Channel assembling. Escale: -30º +70ºC.Out: 2 x 4-20mA. Supply 12-24 VDC.

•

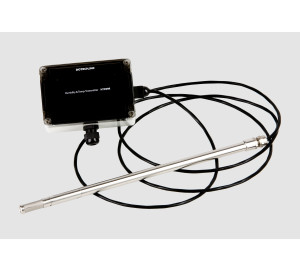

  Humidity/temperature transmitter

  Referencia: 8064

  Out 4-20mA (-50 +200ºC) with 2 meters wire.Availability on request.

•

  Stainless steel pressure transmitters

  Referencia: 8080

  Thread 1/2”.Out: 4-20mA.Supply: 12-36 VDC.Precision: 0,5%fs.Electric connection: DIN 43650A (solenoid 4 poles).Protection: IP65.Free of oil.

•

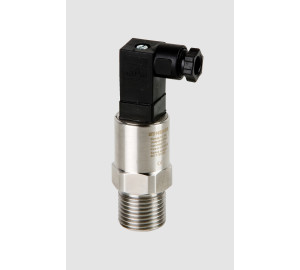

  Stainless steel pressure transmitters

  Referencia: 8081

  Thread 1/2” G/M.Out: 4-20 mA (2 thread).Supply: 12 ~ 28VDC.Electric connection: Type Hirschman mini connector.Protection: IP65.Precision: 0.5%fs.Free of oil.

•

  Stainless steel pressure transmitters

  Referencia: 8081E

  Thread 1/4” G/M.Out: 4-20 mA (2 thread).Supply: 12 ~ 28VDC.Electric connection: Type Hirschman mini connector.Protection: IP65.Precision: 0.5%fs.Free of oil.

•

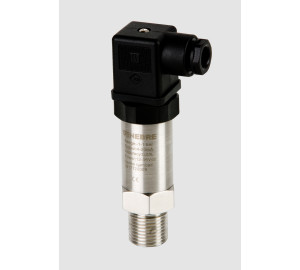

  Stainless steel pressure transmitters

  Referencia: 8180

  Thread 1/2”.Out: 4-20mA.Supply: 10-30 VDC.Precision: 0,5%fs.Electric connection: DIN 43650A (solenoid 4 poles).Protection: IP65.Free of oil.ATEX: Ex i a II CT6.

•

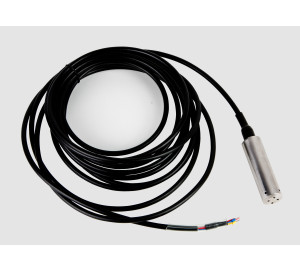

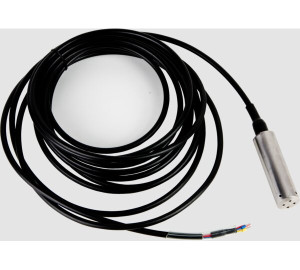

  Hydrostatic level transmitter

  Referencia: 8085L

  Hydrostatic level tranmitter 0.6 bar with 10 wire meters.
