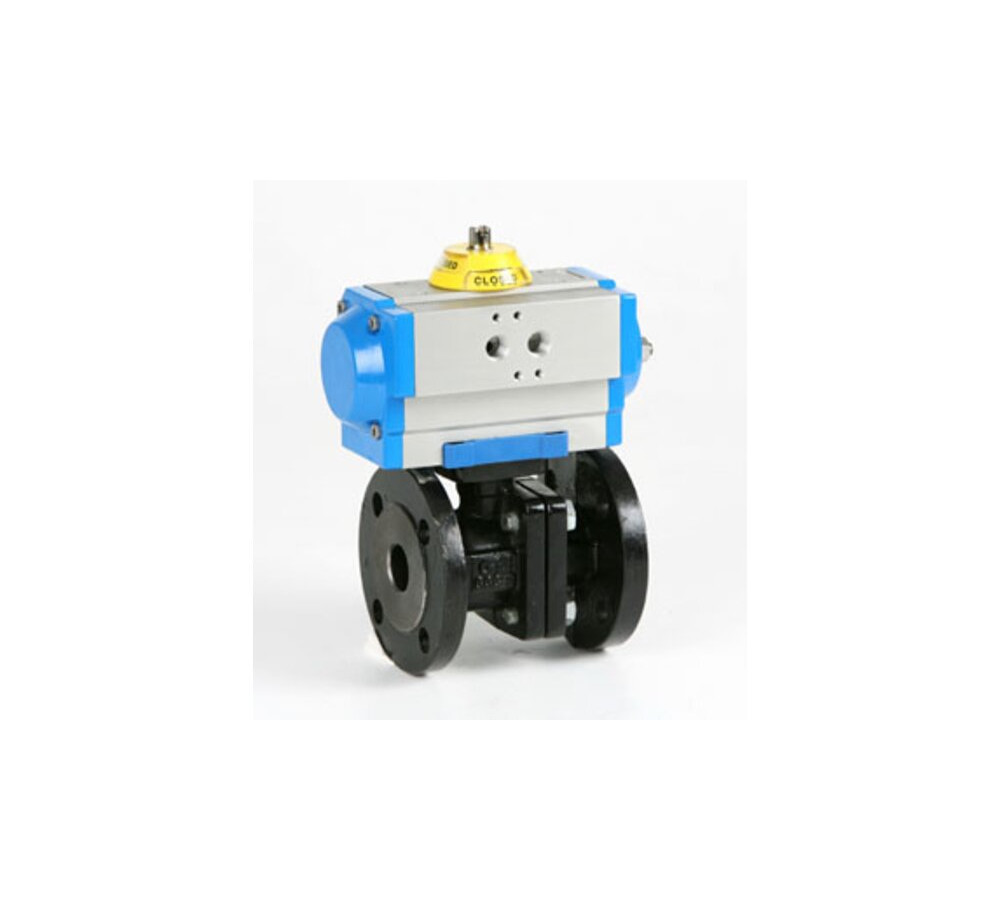

2 pieces full bore ball valve

2 pieces full bore ball valve.
Body: ductil iron GGG-40.
Ball and stem: AISI 304. Seats: PTFE + 15% GF. Stem o’ring: viton.
Max. pressure: 16 kg/cm2. Temp. -30ºC +180ºC.
Manually operated by handle with locking system.
L: S/DIN 3202 F-4.
With Gen-Air actuator

Reference: 5525

Gen-Air Actuator technical sheet
Valve Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
5525 04 62 V. 2525 1/2" WITH GN-15 1 4.03 1/1
5525 05 63 V. 2525 3/4" WITH GN-15 1 4.63 1/1
5525 06 63 V. 2525 1" WITH GN-15 1 5.63 1/1
5525 07 63 V. 2525 1"1/4 WITH GN-15 1 6.92 1/1
5525 08 63 V. 2525 1"1/2 GN-15 1 8.63 1/1
5525 09 64 V. 2525 2" GN-20 1 12.07 1/1
5525 10 64 V. 2525 2"1/2 GN-20 1 15.37 1/1
5525 11 65 V. 2525 3" GN-25 1 20.7 1/1
5525 12 67 V. 2525 4" GN-35 1 29.68 1/1
5525 13 68 V. 2525 5" GN-40 1 54.53 1/1
5525 14 69 V. 2525 6" GN-45 1 74.96 1/1
5525 16 84 V. 2525 8" GN-55 1 110.08 1/1
