Valves for solar energy

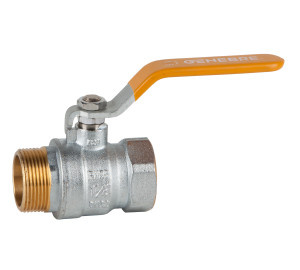

Lever handle M-F ball valve

PN 25. Full bore. Body chrome plated brass UNE-EN 12165. Seats PTFE. Gas threaded ends M-F, ISO 228/1. Max. temp. 150ºC. Manual control lev ...

Reference: 3134

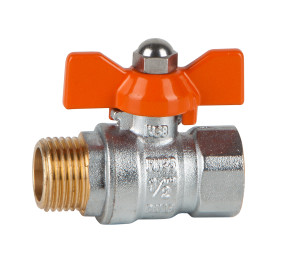

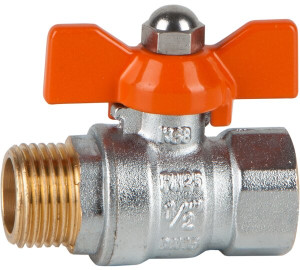

Ball valve M-F orange butterfly handle

PN 25. Full bore. Body chrome plated brass UNE-EN 12165. Seats PTFE. Gas threaded ends M-F, ISO 228/1. Max. temp. 150ºC. Manual control lev ...

Reference: 3136

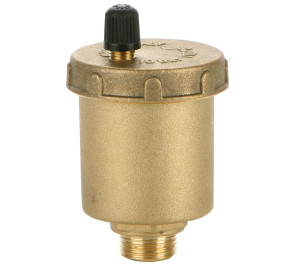

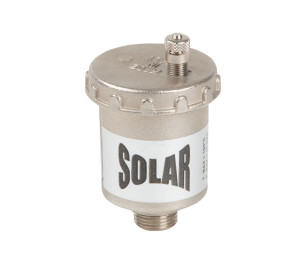

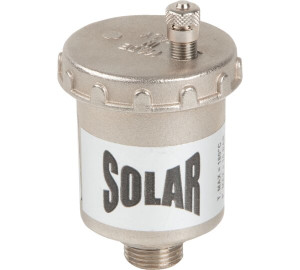

Automatic air vent

Body brass. PP floating system. Elastomer sealing joint. Male thread ISO 228/1. Max. working temp. 110ºC. Maximum working pressure 10 bar.

Reference: 70037

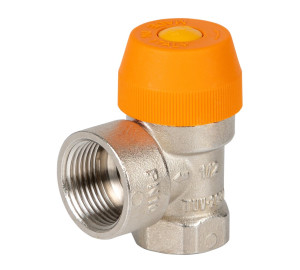

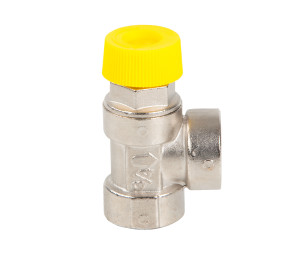

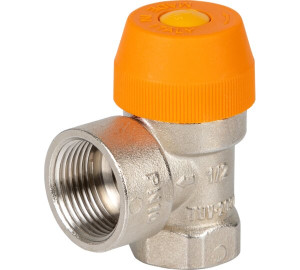

Safety angle valve

Body in brass. Female threaded ends ISO 228/1. Maximum working temperature 160ºC. 6 bar setting pressure.

Reference: 3178

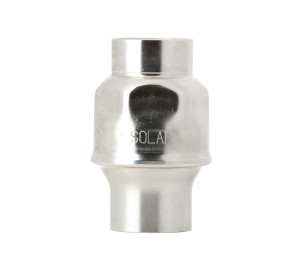

“Small” check valve “Idrja” for solar ener ...

Constr.: AISI 304 – viton seat. Gas threaded ends DIN 2999. Working temp. min. -25ºC +150ºC. Working pressure: 16 bar. Opening pressure: ...

Reference: 2444

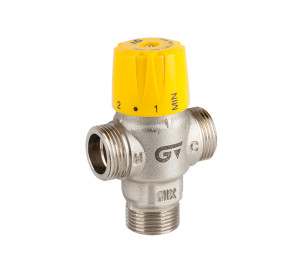

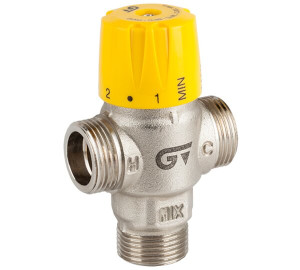

Vertical thermostatic mixing valve for solar insta ...

Temperature adjusting handle from 30ºC to 65ºC. Maximum temperature inlet 100ºC. For solar panels application.

Reference: 1431S

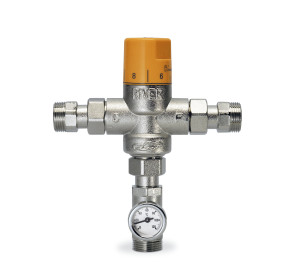

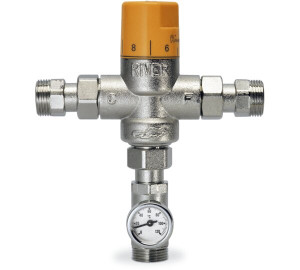

Vertical thermostatic mixing valve with thermomete ...

Anti-scalding device with stop water supply S/EN 1111. Extractable cartridge and thermostatic special unit with lime protection and high-spe ...

Reference: 1444

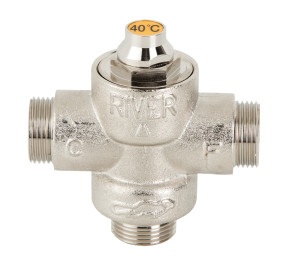

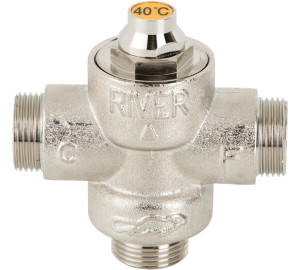

Divert thermostatic valve

Divert automatically the hot water coming from the panel to the boiler only when it is necessary integrate the temperature. Thermostatic uni ...

Reference: 1452

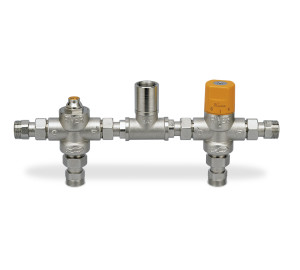

Thermostatic kit with divert valve and mixer

Anti-scalding connected thermostatic kit for facilitate connection from the solar panel to the boiler. Mainly composed of a vertical thermos ...

Reference: 1451

Corrugated flexible pipe

Stainless steel construction.

Reference: 0580
