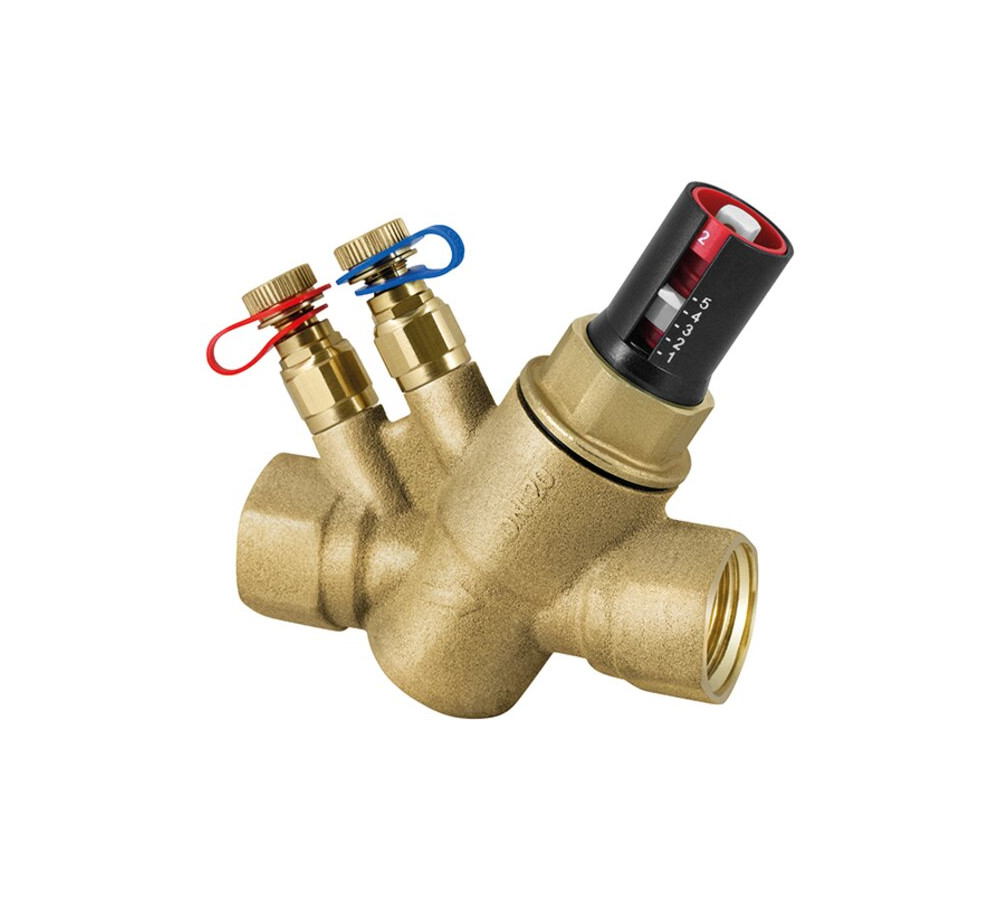

Dynamic balancing valve

PN 16. Brass construction acc/UNE-EN 12165. Polymer cartridge with EPDM diaphragm. Threaded ends gas (BSP) F - F acc/ISO 228/1. Indicator with graduated scale. Pressure taps connection G1/8" female. Working temperature from - 20ºC to 120ºC. Appliance with water & water + glycol (50%).

Reference: 70874

See Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
70874 04 10 BALANCING VALVE 1/2" RANGE 0,100-0,412 1 0.495 1/20
70874 04 20 BALANCING VALVE 1/2" RANGE 0,157-0,609 1 0.495 1/20
70874 04 30 BALANCING VALVE 1/2" RANGE 0,275-0,825 1 0.495 1/20
70874 04 40 BALANCING VALVE 1/2" RANGE 0,406-1,270 1 0.495 1/20
70874 05 10 BALANCING VALVE 3/4" RANGE 0,100-0,412 1 0.57 1/20
70874 05 20 BALANCING VALVE 3/4" RANGE 0,157-0,609 1 0.57 1/20
70874 05 30 BALANCING VALVE 3/4" RANGE 0,275-0,825 1 0.57 1/20
70874 05 40 BALANCING VALVE 3/4" RANGE 0,406-1,270 1 0.527 1/20
70874 06 10 BALANCING VALVE 1" RANGE 0,100-0,412 1 0.635 1/9
70874 06 20 BALANCING VALVE 1" RANGE 0,157-0,609 1 0.635 1/1
70874 06 30 BALANCING VALVE 1" RANGE 0,275-0,825 1 0.635 1/1
70874 06 40 BALANCING VALVE 1" RANGE 0,406-1,270 1 0.635 1/1
