Motorized Fan Coil Unit (FCU)

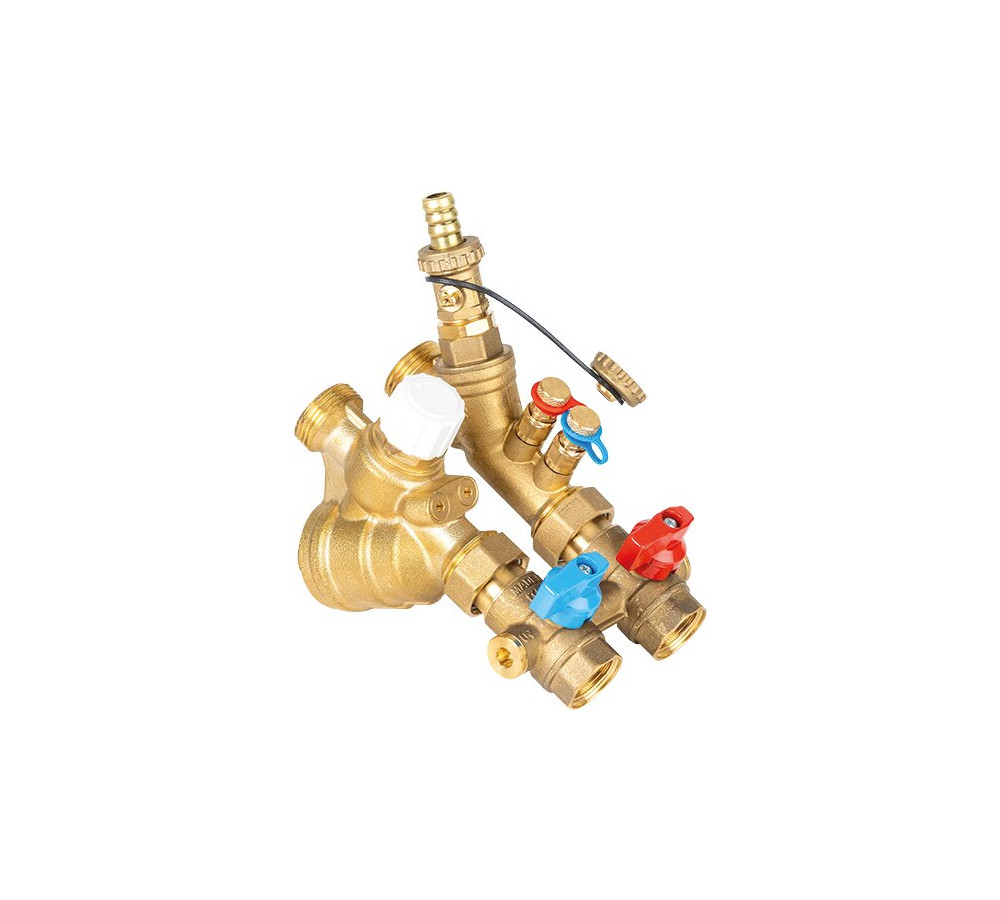

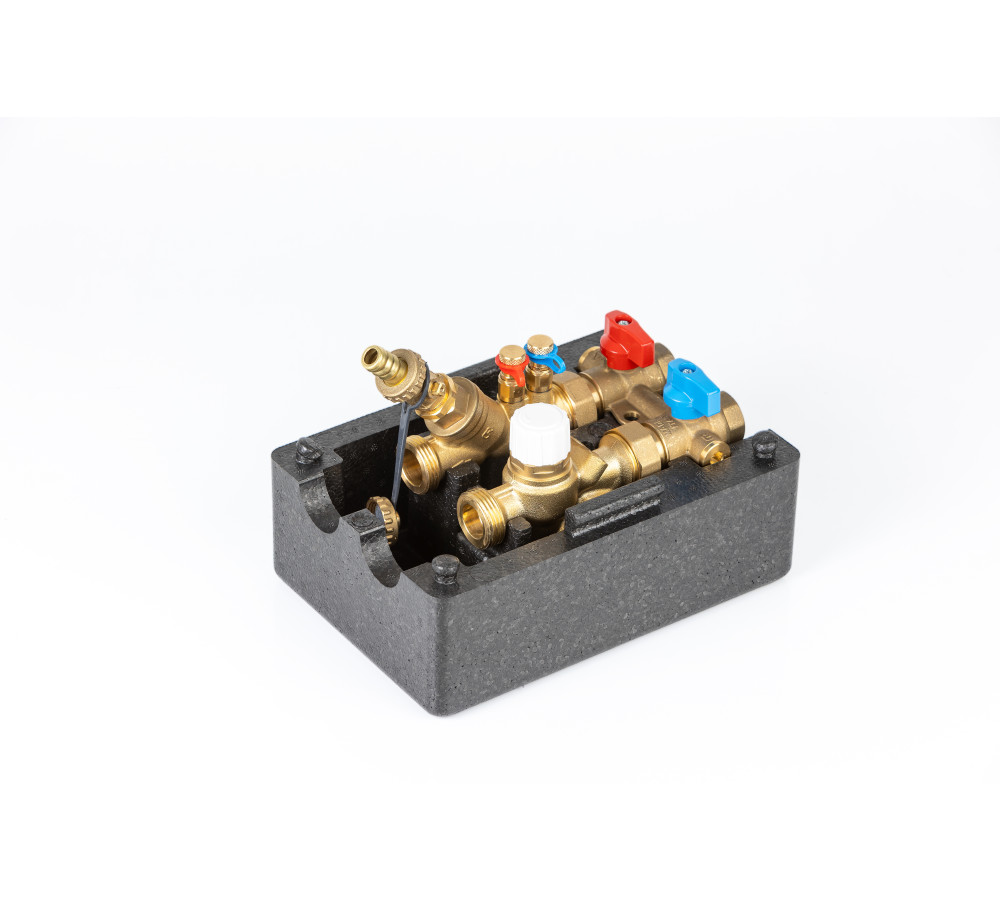

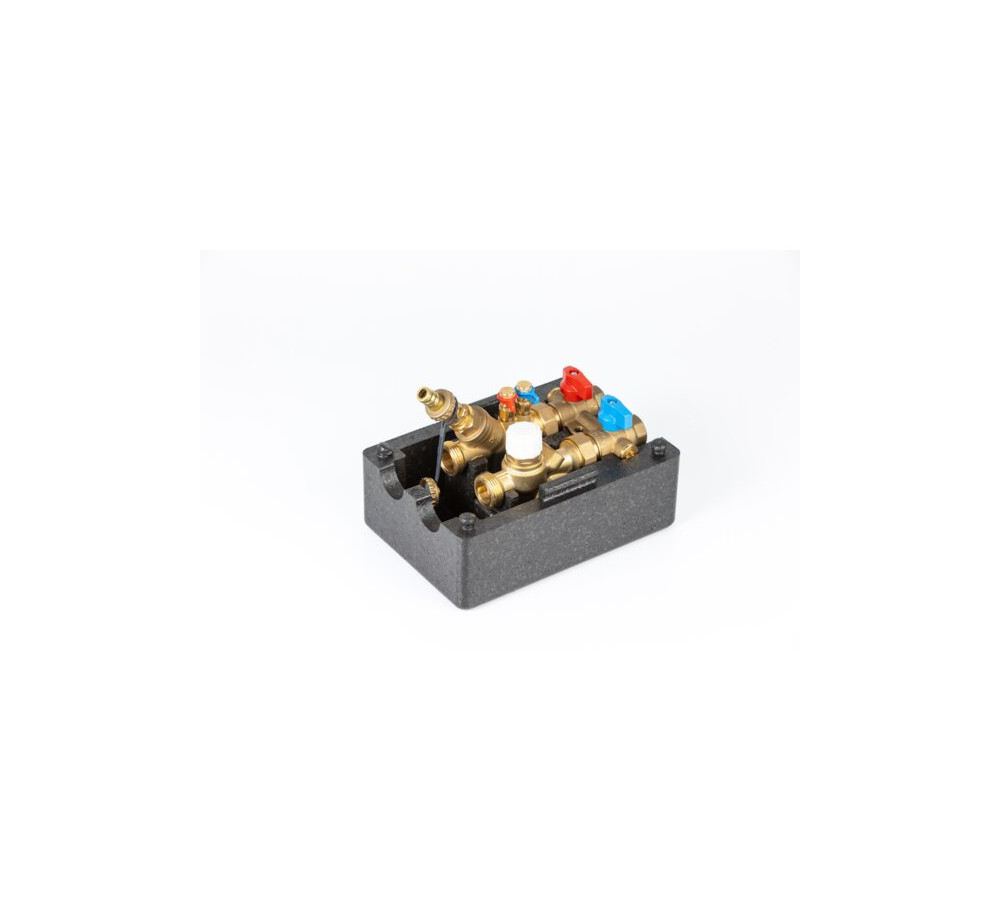

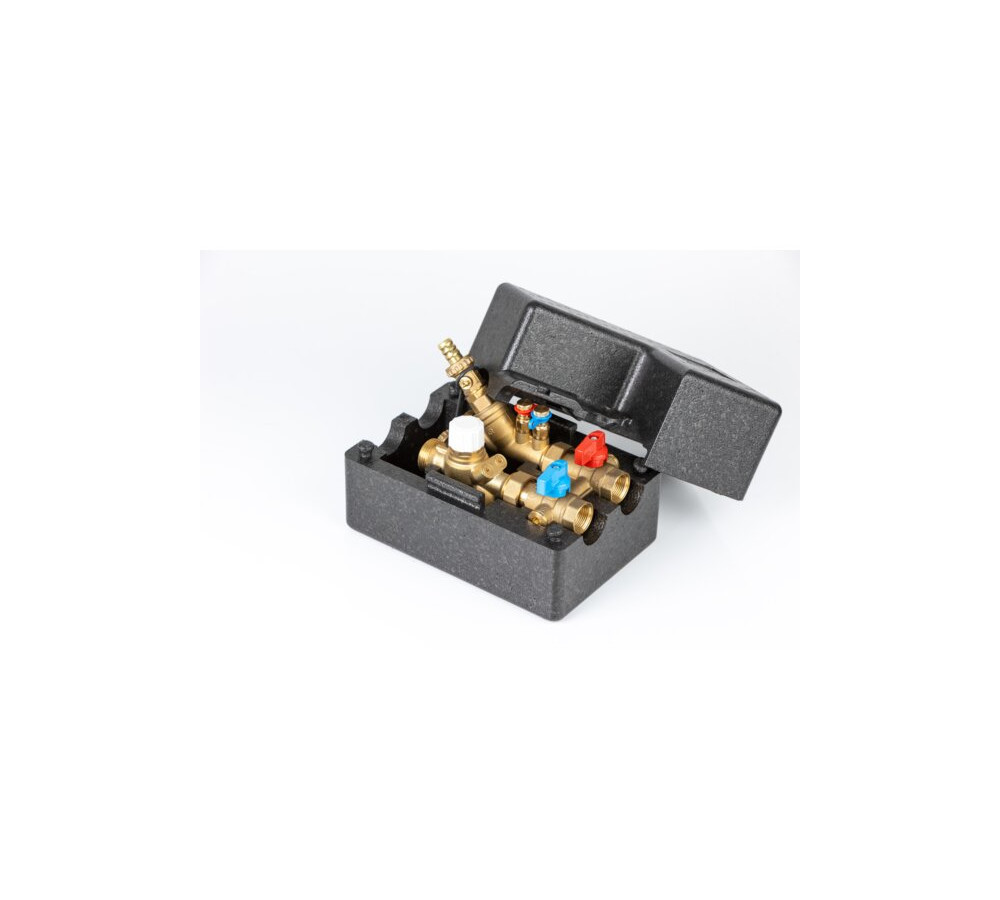

PN25. DZR brass construction UNE-EN 12165. PTFE and EPDM PEROX seats. Gas threaded ends (BSP) ISO 228/1. Temperature range -10ºC to 110ºC. The FCU has composed by PICV control valve with actuator 24VAC or 230VAC, 800 microns filter with flushing, by pass isolation valves and a venturi metering station with P/T plugs. Polyethylene insulation box included.

Reference: 73717M

See Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
73717M 05 00 MANUAL FAN COIL UNIT (FCU) 400L/H 1 2.131 1/1
73717M 05 10 MANUAL FAN COIL UNIT (FCU) 700 L/H 1 2.131 1/2
73717M 05 20 MANUAL FAN COIL UNIT (FCU) 1300 L/H 1 2.131 1/1
