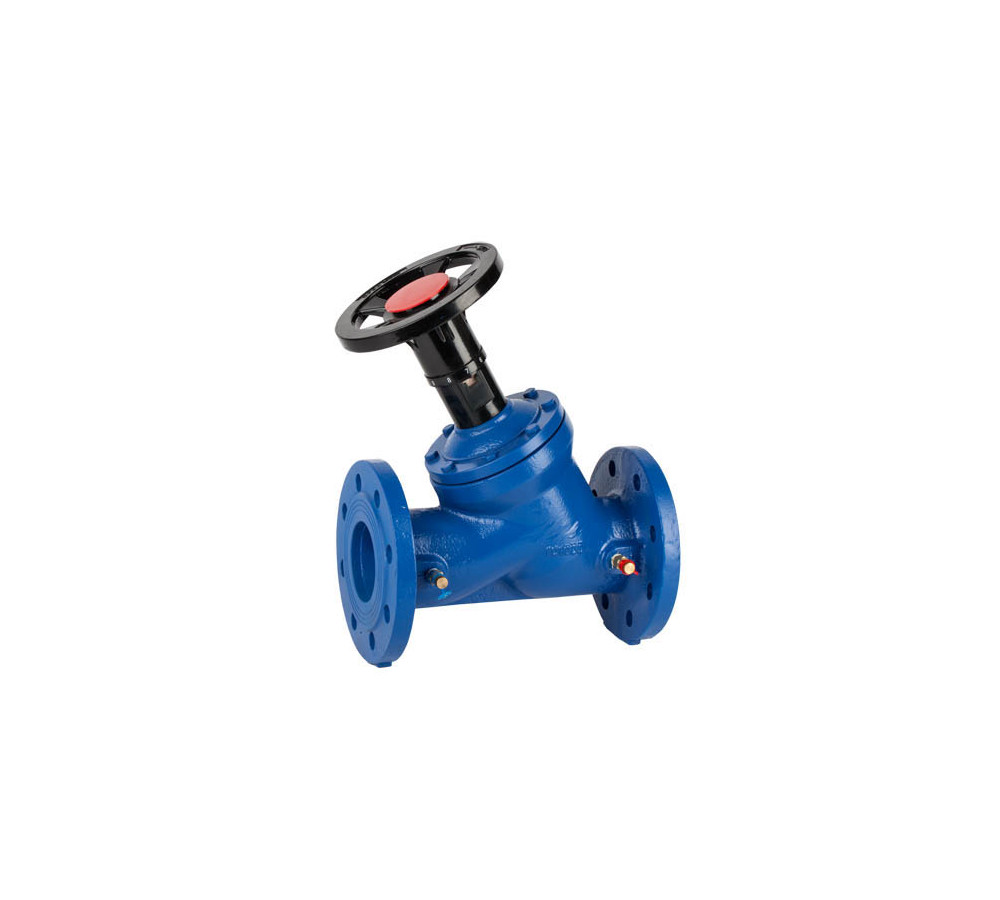

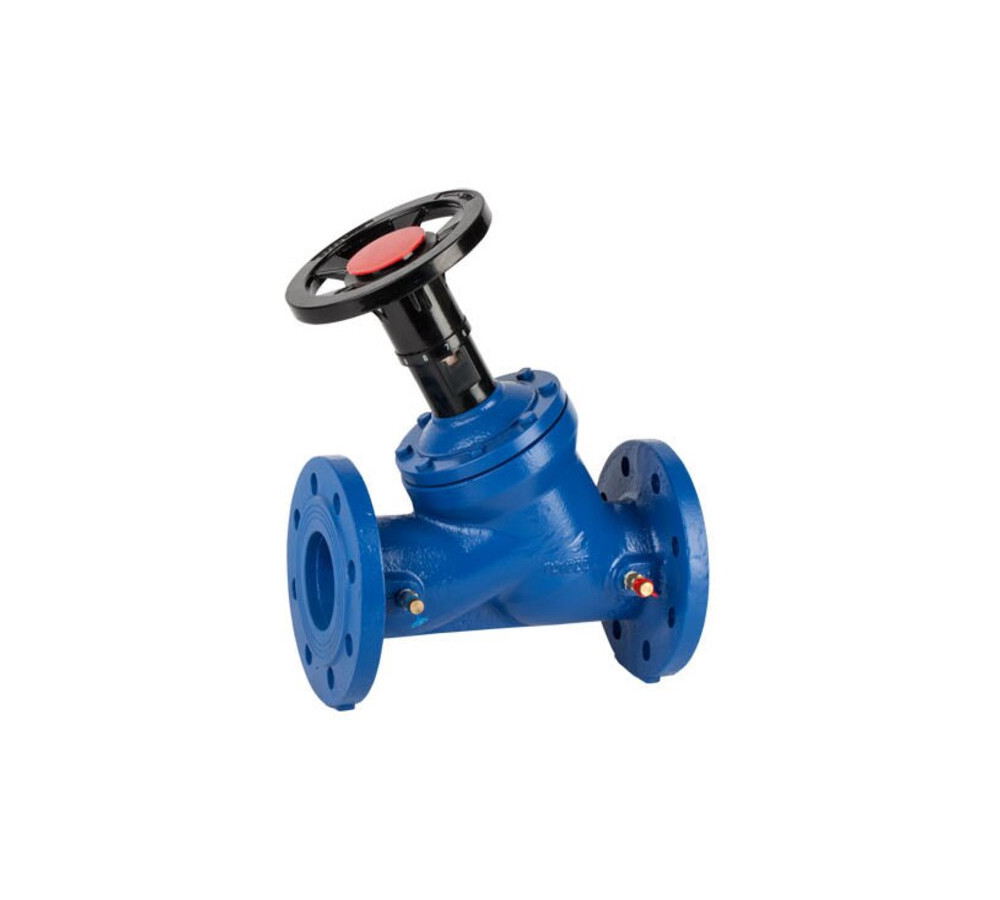

Static balancing valve – Flanged ends DIN PN 16

Body and bonnet of ductil iron GGG-40.
Stainless steel stem. Sealing: EPDM.
Variable orifice. Double regulation.
Working temperature -10ºC +120ºC.

Reference: 2228

See Technical Sheet
Installation Manual
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2228 09 2" STATIC BALANCING VALVE FLANGED ENDS DIN PN16 1 11.765 1/1
2228 10 2 1/2" STATIC BALANCING VALVE FLANGED ENDS DIN PN16 1 16.003 1/1
2228 11 3" STATIC BALANCING VALVE FLANGED ENDS DIN PN16 1 19.313 1/1
2228 12 4" STATIC BALANCING VALVE FLANGED ENDS DIN PN16 1 26.025 1/1
2228 13 5" STATIC BALANCING VALVE FLANGED ENDS DIN PN16 1 40.189 1/1
2228 14 6" STATIC BALANCING VALVE FLANGED ENDS DIN PN16 1 55.522 1/1
2228 16 8" STATIC BALANCING VALVE FLANGED ENDS DIN PN16 1 107.024 1/1
2228 18 10" STATIC BALANCING VALVE FLANGED ENDS DIN PN16 1 149.187 1/1
2228 20 12" STATIC BALANCING VALVE FLANGED ENDS DIN PN16 1 217.667 1/1
