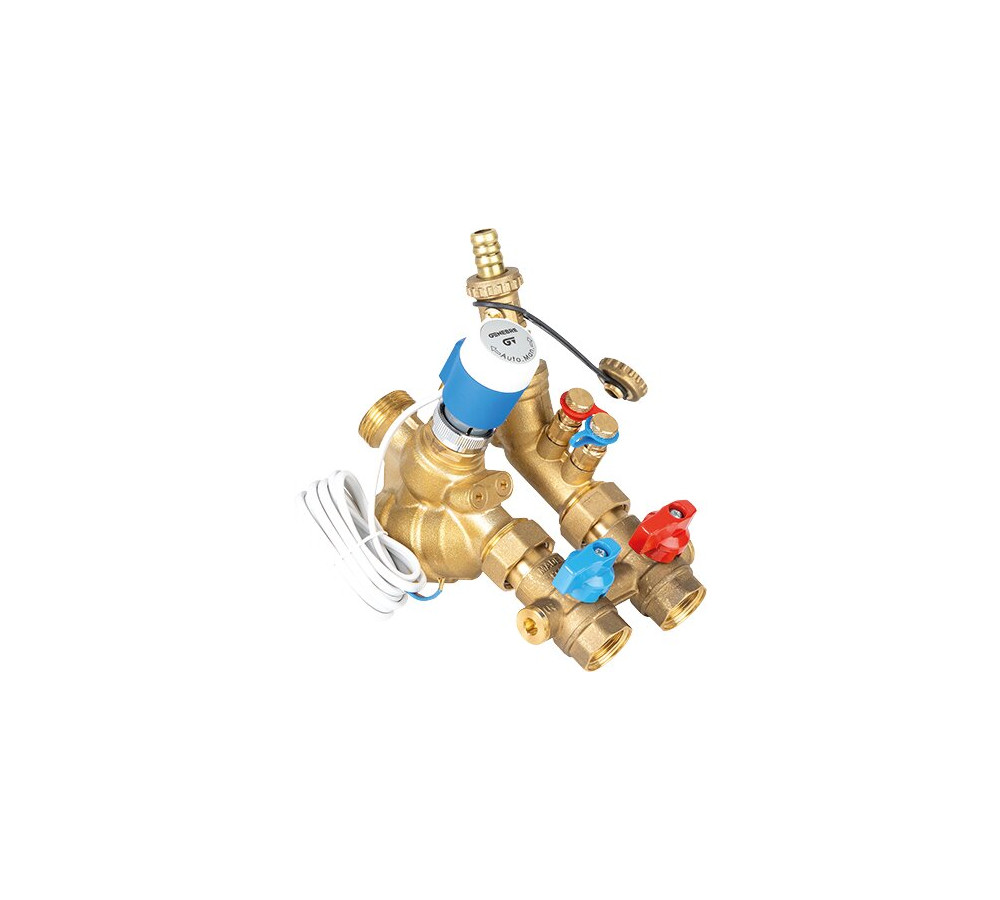

Motorized Fan Coil Unit (FCU)

PN 25. DZR brass construction UNE-EN 12165. PTFE and EPDM PEROX seats. Gas threaded ends (BSP) ISO 228/1. Temperature range -10ºC to 110ºC. The FCU has composed by PICV control valve with actuator, 800 microns filter with flushing, by pass isolation valves and a venturi metering station with P/T plugs.

Reference: 73717A

See Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
73717A 05 00 MOTORIZED FAN COIL UNIT (FCU). 400 L/H 1 2.131 1/1
73717A 05 10 MOTORIZED FAN COIL UNIT (FCU). 700 L/H 1 2.131 1/1
73717A 05 20 MOTORIZED FAN COIL UNIT (FCU). 1300L/H 1 2.131 1/1
