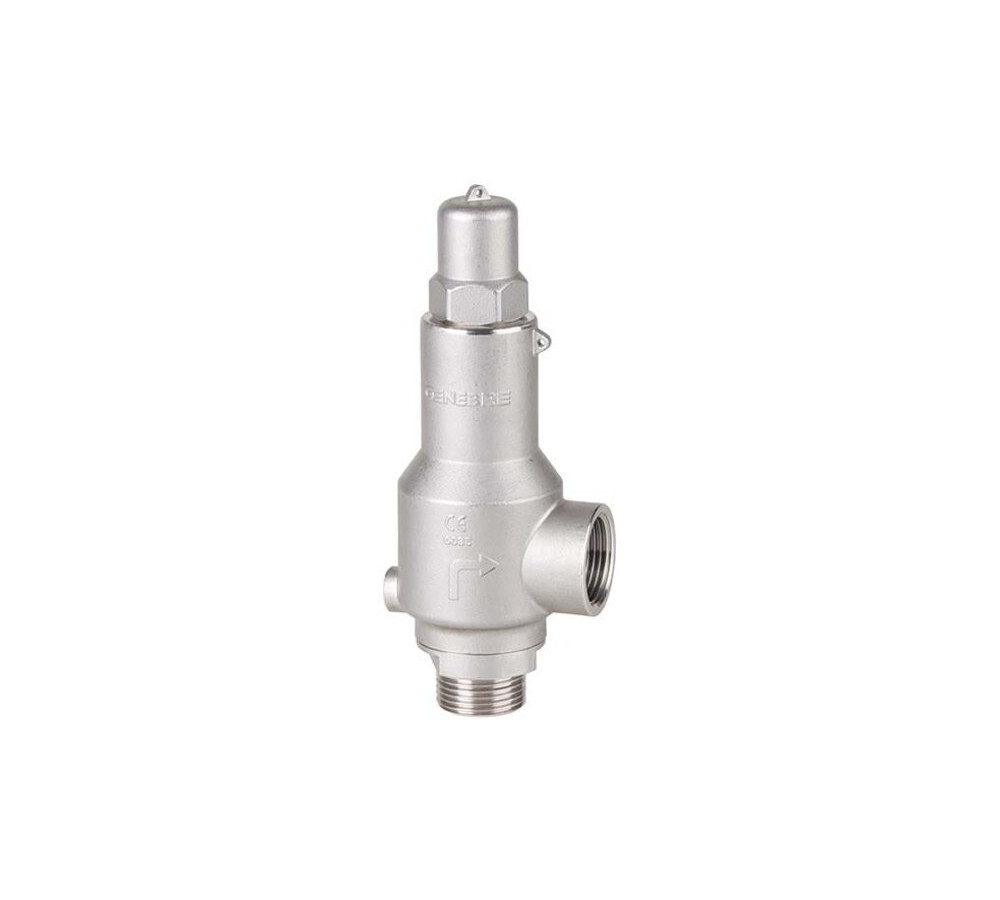

Pressure relief valve

BSP threaded ends acc./ ISO 228/1 M-F, available with NPT threaded (2258N). Construction: Stainless steel 1.4408 (CF8M). PTFE sealing. Set pressure between 0,5 barg and 25 barg. Max. working pressure 25 bar. Working temperature -20ºC +200ºC.

Reference: 2258

See Technical Sheet
Installation Manual
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2258 04 06 11 PRESSURE RELIEF VALVE 1/2" G x 1" G (0,5-6 BAR) 1 1.78 1/1
2258 04 06 12 PRESSURE RELIEF VALVE 1/2" G x 1" G (6,1-25 BAR) 1 1.81 1/1
2258 05 06 11 PRESSURE RELIEF VALVE 3/4" G x 1" G (0,5-6 BAR) 1 1.79 1/1
2258 05 06 12 PRESSURE RELIEF VALVE 3/4" G x 1" G (6,1-25 BAR) 1 1.84 1/1
2258 06 06 11 PRESSURE RELIEF VALVE 1" G x 1" G (0,5-6 BAR) 1 1.78 1/1
2258 06 06 12 PRESSURE RELIEF VALVE 1" G x 1" G (6,1-25 BAR) 1 1.75 1/1
2258 06 07 11 PRESSURE RELIEF VALVE 1" G x 1 1/4" G (0,5-6 BAR) 1 1.88 1/1
2258 06 07 12 PRESSURE RELIEF VALVE 1" G x 1 1/4" G (6,1-25 BAR) 1 1.48 1/1
2258 07 07 11 PRESSURE RELIEF VALVE 1 1/4" G x 1 1/4" G (0,5-6 BAR) 1 1.813 1/1
2258 07 07 12 PRESSURE RELIEF VALVE 1 1/4" G x 1 1/4" G (6,1-25 BAR) 1 1.52 1/1
2258 08 09 11 PRESSURE RELIEF VALVE 1 1/2" G x 2" G (0,5-6 BAR) 1 3.7 1/1
2258 08 09 12 PRESSURE RELIEF VALVE 1 1/2" G x 2" G (6,1-25 BAR) 1 3.7 1/1
2258 09 09 11 PRESSURE RELIEF VALVE 2" G x 2" G (0,5-6 BAR) 1 3.76 1/1
2258 09 09 12 PRESSURE RELIEF VALVE 2" G x 2" G (6,1-25 BAR) 1 4.46 1/1
