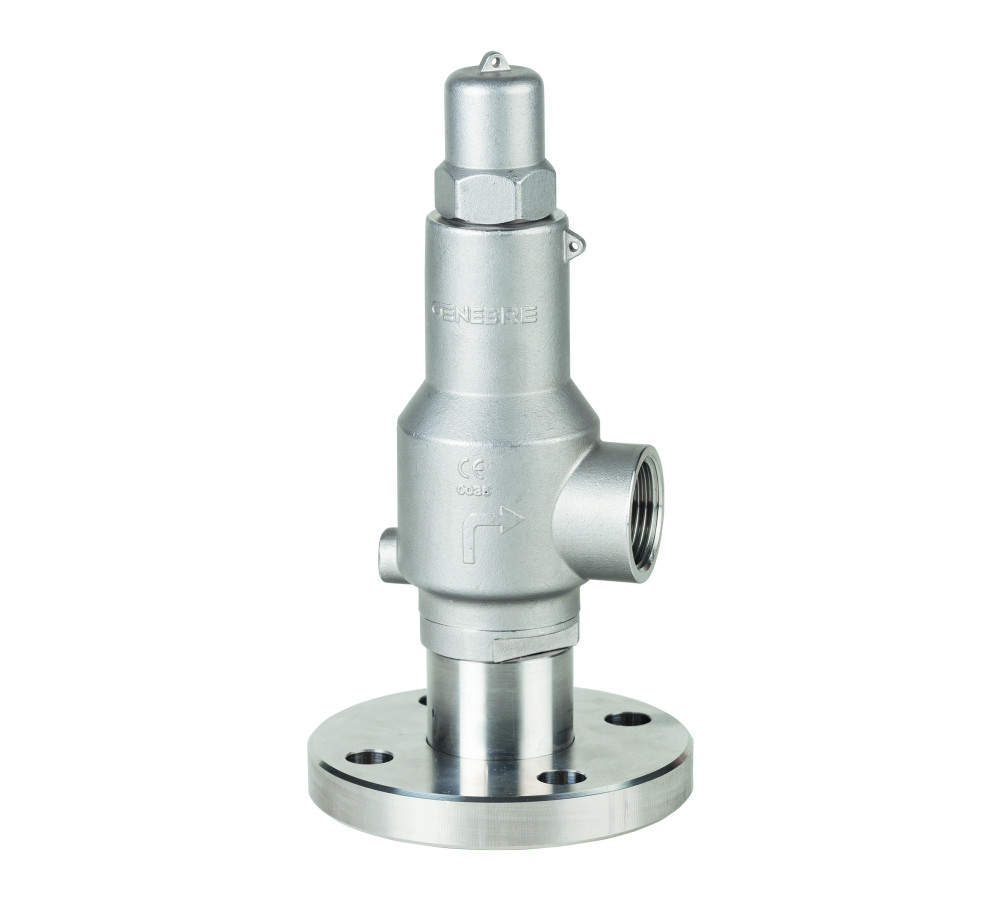

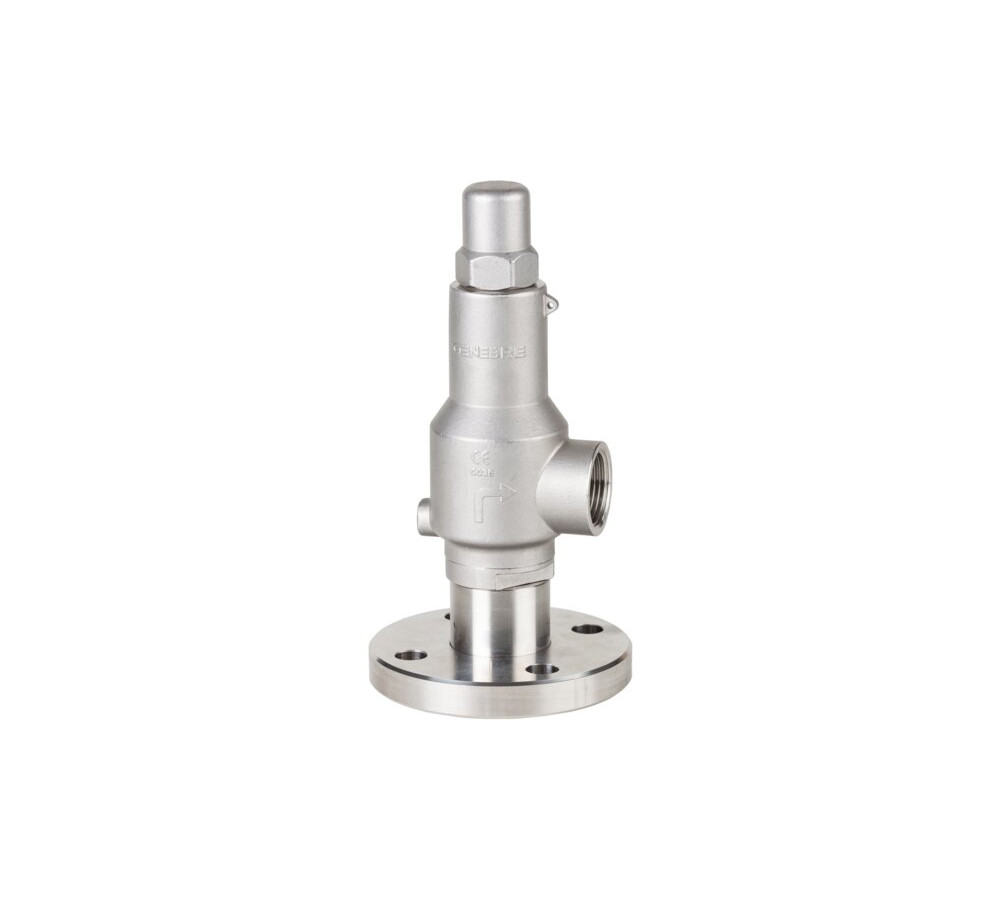

Safety Valve

Flanged end PN16/40 (inlet) acc. to EN 1092-1 and threaded end BSP acc. to ISO 228/1 (outlet). Design, calculations and control according to EN 12516 and EN 4126-1/7. Construction: Stainless steel 1.4408 (CF8M). Seat and disc in stainless steel.
AISI 316. Set pressure between 0,5 barg and 40 barg. Max. working pressure 40 bar.
Working temperature -20ºC +300ºC.
Applications: Gas or steam

Reference: 2256

See Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2256 04 06 01 V. DE SEG. DN15 x 1" G 1 2.18 1/1
2256 04 06 02 V. DE SEG. DN15 x 1" G 1 2.18 1/1
2256 04 06 03 V. DE SEG. DN15 x 1" G 1 2.18 1/1
2256 04 06 04 V. DE SEG. DN15 x 1" G 1 2.18 1/1
2256 04 06 05 V. DE SEG. DN15 x 1" G 1 2.18 1/1
2256 04 06 06 V. DE SEG. DN15 x 1" G 1 2.18 1/1
2256 05 06 01 V. DE SEG. DN20 x 1" G 1 2.52 1/1
2256 05 06 02 V. DE SEG. DN20 x 1" G 1 2.52 1/1
2256 05 06 03 V. DE SEG. DN20 x 1" G 1 2.52 1/1
2256 05 06 04 V. DE SEG. DN20 x 1" G 1 2.52 1/1
2256 05 06 05 V. DE SEG. DN20 x 1" G 1 2.52 1/1
2256 05 06 06 V. DE SEG. DN20 x 1" G 1 2.52 1/1
2256 06 06 01 V. DE SEG. DN25 x 1" G 1 2.84 1/1
2256 06 06 02 V. DE SEG. DN25 x 1" G 1 2.84 1/1
2256 06 06 03 V. DE SEG. DN25 x 1" G 1 2.84 1/1
2256 06 06 04 V. DE SEG. DN25 x 1" G 1 2.84 1/1
2256 06 06 05 V. DE SEG. DN25 x 1" G 1 2.84 1/1
2256 06 06 06 V. DE SEG. DN25 x 1" G 1 2.84 1/1
2256 06 07 01 V. DE SEG. DN25 x 1 1/4" G 1 2.98 1/1
2256 06 07 02 V. DE SEG. DN25 x 1 1/4" G 1 2.98 1/1
2256 06 07 03 V. DE SEG. DN25 x 1 1/4" G 1 2.98 1/1
2256 06 07 04 V. DE SEG. DN25 x 1 1/4" G 1 2.98 1/1
2256 06 07 05 V. DE SEG. DN25 x 1 1/4" G 1 2.98 1/1
2256 06 07 06 V. DE SEG. DN25 x 1 1/4" G 1 2.98 1/1
2256 07 07 01 V. DE SEG. DN32 x 1 1/4" G 1 3.9 1/1
2256 07 07 02 V. DE SEG. DN32 x 1 1/4" G 1 3.9 1/1
2256 07 07 03 V. DE SEG. DN32 x 1 1/4" G 1 3.9 1/1
2256 07 07 04 V. DE SEG. DN32 x 1 1/4" G 1 3.9 1/1
2256 07 07 05 V. DE SEG. DN32 x 1 1/4" G 1 3.9 1/1
2256 07 07 06 V. DE SEG. DN32 x 1 1/4" G 1 3.9 1/1
2256 08 09 01 V. DE SEG. DN40 x 2" G 1 6.4 1/1
2256 08 09 02 V. DE SEG. DN40 x 2" G 1 6.4 1/1
2256 08 09 03 V. DE SEG. DN40 x 2" G 1 6.4 1/1
2256 08 09 04 V. DE SEG. DN40 x 2" G 1 6.4 1/1
2256 08 09 05 V. DE SEG. DN40 x 2" G 1 6.4 1/1
2256 08 09 06 V. DE SEG. DN40 x 2" G 1 6.4 1/1
2256 09 09 01 V. DE SEG. DN50 x 2" G 1 7.31 1/1
2256 09 09 02 V. DE SEG. DN50 x 2" G 1 7.31 1/1
2256 09 09 03 V. DE SEG. DN50 x 2" G 1 7.31 1/1
2256 09 09 04 V. DE SEG. DN50 x 2" G 1 7.31 1/1
2256 09 09 05 V. DE SEG. DN50 x 2" G 1 7.31 1/1
2256 09 09 06 V. DE SEG. DN50 x 2" G 1 7.31 1/1
