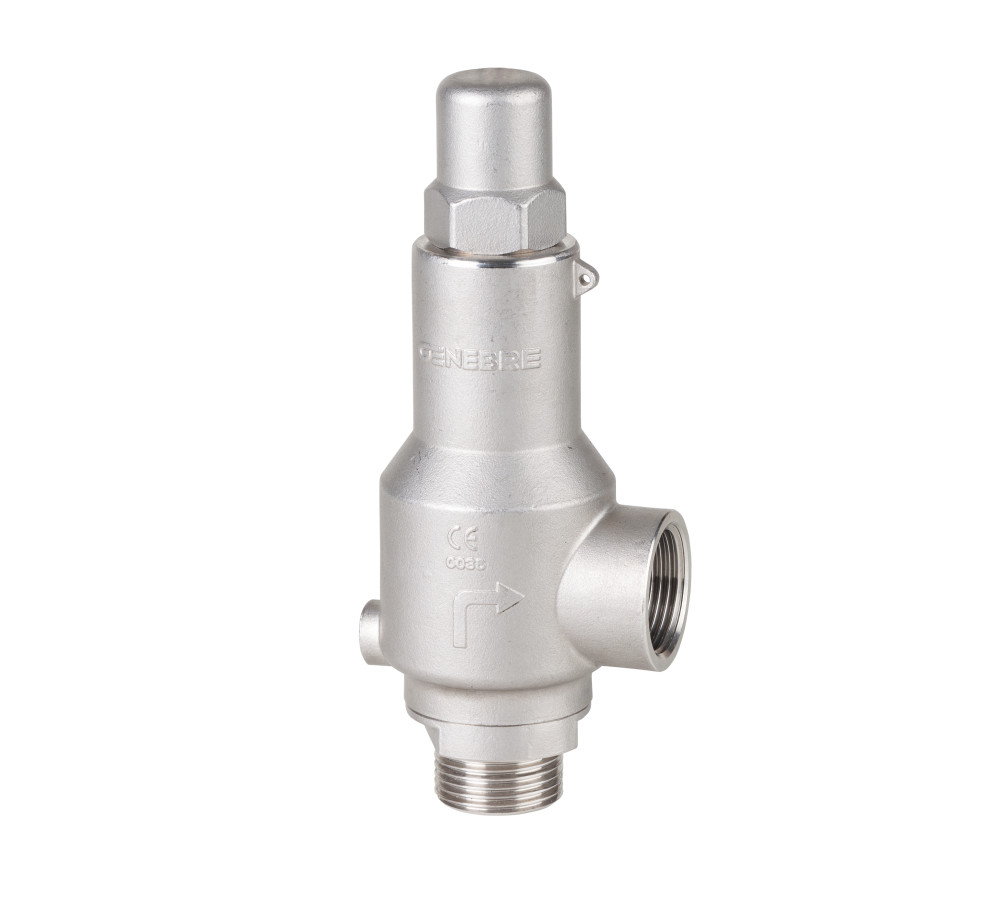

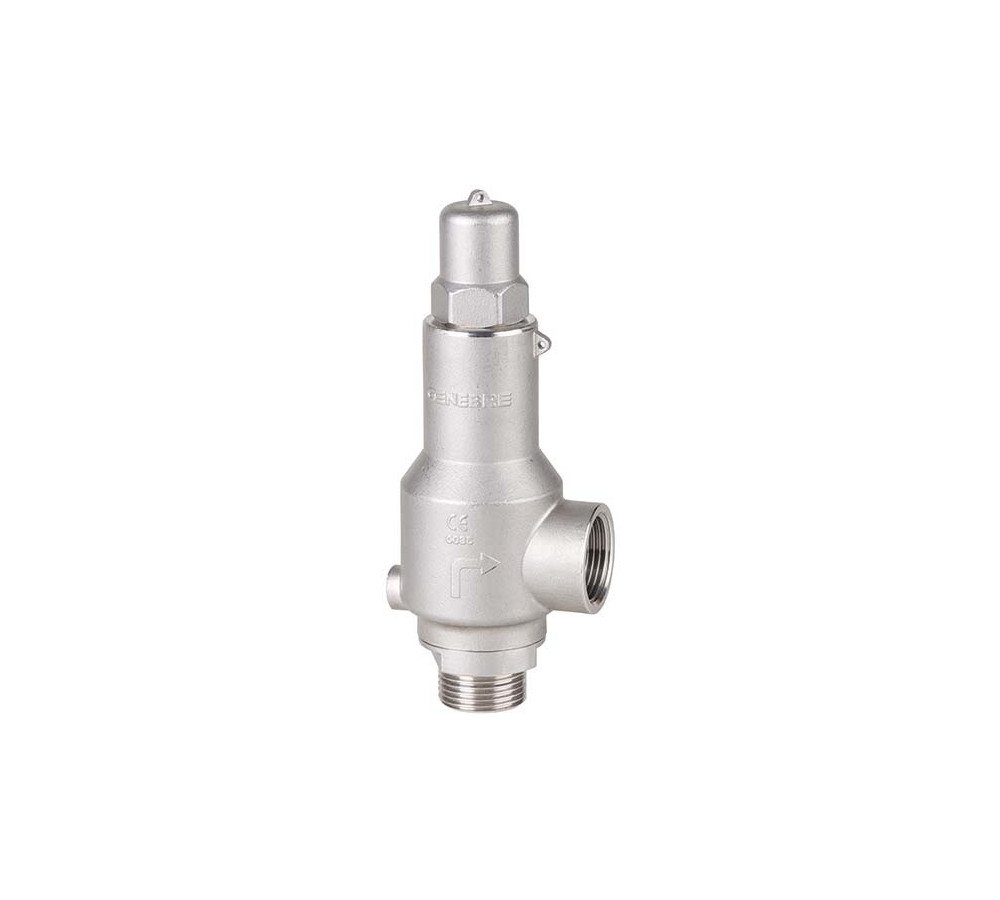

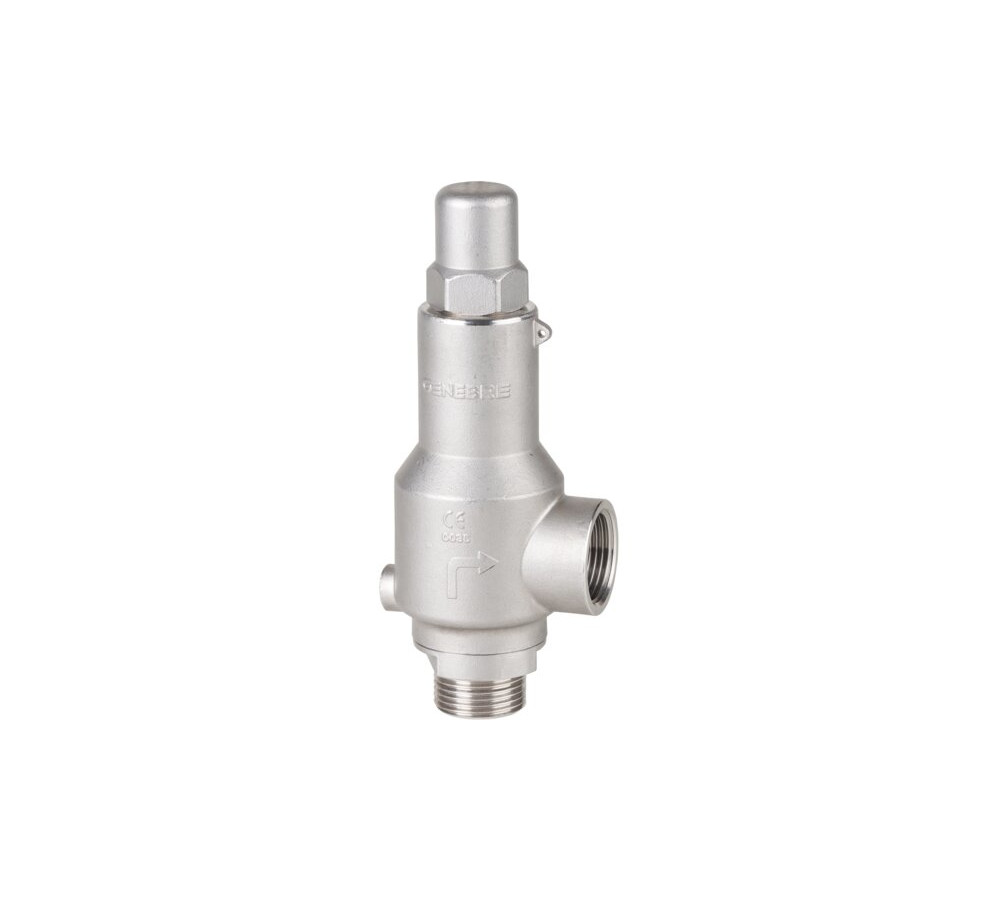

Safety Valve

BSP threaded ends acc./ ISO 228/1 M-F. Design, calculations and control according to EN 12516 and EN 4126-1/7. Construction: Stainless steel 1.4408 (CF8M). Seat and disc in stainless steel AISI 316. Set pressure between 0,5 barg and 40 barg. Max. working pressure 40 bar. Working temperature -20ºC +300ºC.
Applications: Gas or steam

Reference: 2252

See Technical Sheet

Installation Manual

Consult product

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
2252 04 06 01	V. DE SEGURIDAD 1/2" G x 1" G	1	1.675	1/1
2252 04 06 02	V. DE SEGURIDAD 1/2" G x 1" G	1	1.735	1/1
2252 04 06 03	V. DE SEGURIDAD 1/2" G x 1" G	1	1.36	1/1
2252 04 06 04	V. DE SEGURIDAD 1/2" G x 1" G	1	1.85	1/1
2252 04 06 05	V. DE SEGURIDAD 1/2" G x 1" G	1	1.686	1/1
2252 04 06 06	V. DE SEGURIDAD 1/2" G x 1" G	1	1.72	1/1
2252 05 06 01	V. DE SEGURIDAD 3/4" G x 1" G	1	1.78	1/1
2252 05 06 02	V. DE SEGURIDAD 3/4" G x 1" G	1	1.608	1/1
2252 05 06 03	V. DE SEGURIDAD 3/4" G x 1" G	1	1.36	1/1
2252 05 06 04	V. DE SEGURIDAD 3/4" G x 1" G	1	1.92	1/1
2252 05 06 05	V. DE SEGURIDAD 3/4" G x 1" G	1	1.36	1/1
2252 05 06 06	V. DE SEGURIDAD 3/4" G x 1" G	1	1.36	1/1
2252 06 06 01	V. DE SEGURIDAD 1" G x 1" G	1	1.628	1/1
2252 06 06 02	V. DE SEGURIDAD 1" G x 1" G	1	1.36	1/1
2252 06 06 03	V. DE SEGURIDAD 1" G x 1" G	1	1.36	1/1
2252 06 06 04	V. DE SEGURIDAD 1" G x 1" G	1	1.36	1/1
2252 06 06 05	V. DE SEGURIDAD 1" G x 1" G	1	1.87	1/1
2252 06 06 06	V. DE SEGURIDAD 1" G x 1" G	1	1.36	1/1
2252 06 07 01	V. DE SEGURIDAD 1" G x 1 1/4" G	1	1.49	1/1
2252 06 07 02	V. DE SEGURIDAD 1" G x 1 1/4" G	1	1.49	1/1
2252 06 07 03	V. DE SEGURIDAD 1" G x 1 1/4" G	1	1.49	1/1
2252 06 07 04	V. DE SEGURIDAD 1" G x 1 1/4" G	1	1.49	1/1
2252 06 07 05	V. DE SEGURIDAD 1" G x 1 1/4" G	1	1.49	1/1
2252 06 07 06	V. DE SEGURIDAD 1" G x 1 1/4" G	1	1.49	1/1
2252 07 07 01	V. DE SEGURIDAD 1 1/4" G x 1 1/4" G	1	1.535	1/1
2252 07 07 02	V. DE SEGURIDAD 1 1/4" G x 1 1/4" G	1	1.535	1/1
2252 07 07 03	V. DE SEGURIDAD 1 1/4" G x 1 1/4" G	1	2.06	1/1
2252 07 07 04	V. DE SEGURIDAD 1 1/4" G x 1 1/4" G	1	1.535	1/1
2252 07 07 05	V. DE SEGURIDAD 1 1/4" G x 1 1/4" G	1	1.535	1/1
2252 07 07 06	V. DE SEGURIDAD 1 1/4" G x 1 1/4" G	1	1.535	1/1
2252 08 09 01	V. DE SEGURIDAD 1"1/2 G x 2" G	1	3.71	1/1
2252 08 09 02	V. DE SEGURIDAD 1"1/2 G x 2" G	1	3.71	1/1
2252 08 09 03	V. DE SEGURIDAD 1"1/2 G x 2" G	1	3.71	1/1
2252 08 09 04	V. DE SEGURIDAD 1"1/2 G x 2" G	1	3.71	1/1
2252 08 09 05	V. DE SEGURIDAD 1"1/2 G x 2" G	1	3.71	1/1
2252 08 09 06	V. DE SEGURIDAD 1"1/2 G x 2" G	1	3.71	1/1
2252 09 09 01	V. DE SEGURIDAD 2" G x 2" G	1	3.78	1/1
2252 09 09 02	V. DE SEGURIDAD 2" G x 2" G	1	3.78	1/1
2252 09 09 03	V. DE SEGURIDAD 2" G x 2" G	1	3.78	1/1
2252 09 09 04	V. DE SEGURIDAD 2" G x 2" G	1	3.78	1/1
2252 09 09 05	V. DE SEGURIDAD 2" G x 2" G	1	3.78	1/1
2252 09 09 06	V. DE SEGURIDAD 2" G x 2" G	1	3.78	1/1
