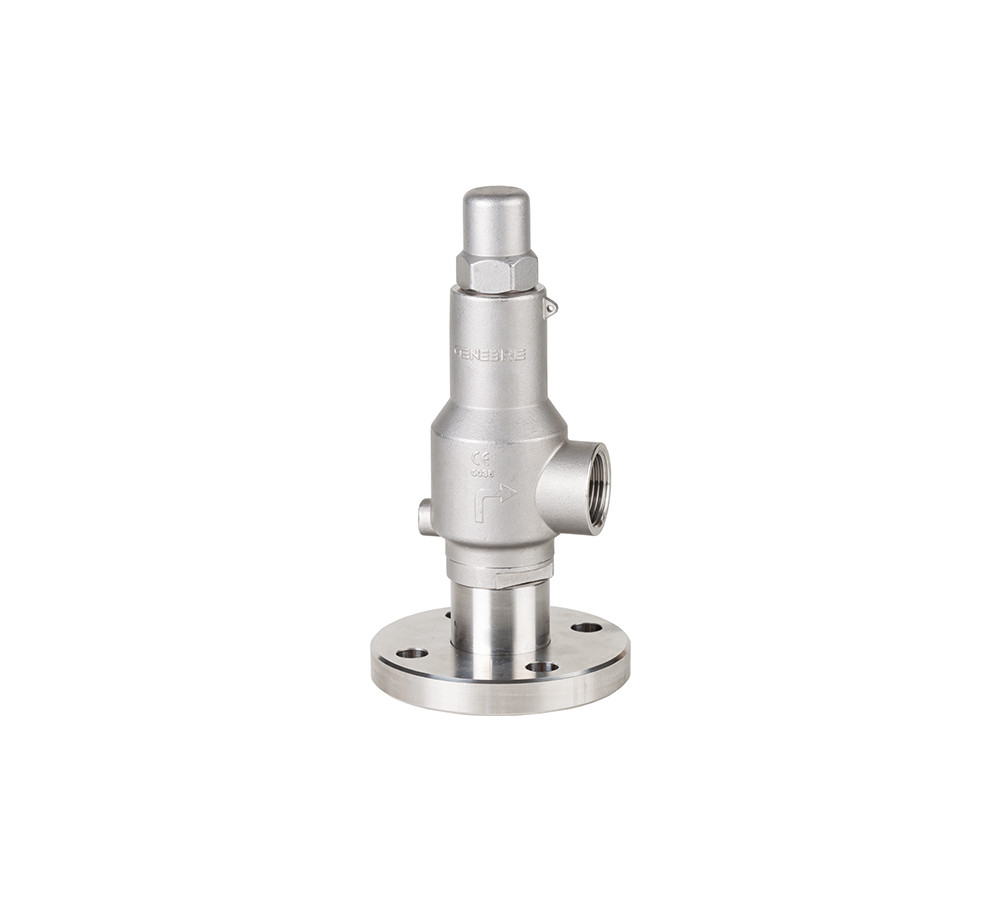

Pressure relief valve.

Flanged end PN25 (inlet) acc. to EN 1092-1 and threaded end BSP acc. to ISO 228/1 (outlet).Construction: Stainless steel 1.4408 (CF8M). PTFE sealing. Set pressure between 0,5 barg and 25 barg. Max. working pressure 25 bar. Working temperature -20ºC +200ºC.

Reference: 2259

Pressure relief valve.
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2259 04 06 11 SS PRESSURE RELIEF VALVE DN15 x 1" G (0,5-6 BAR) 1 1.35 1/1
2259 05 06 11 V. DE ALIVIO DN20 x 1" G (6,1-25 BAR) 1 2.52 1/1
2259 06 06 11 V. DE ALIVIO DN25 x 1" G (6,1-25 BAR) 1 2.84 1/1
2259 06 07 11 V. DE ALIVIO DN25 x 1"1/4 G (0,5-6 BAR) 1 2.98 1/1
2259 07 07 11 SS PRESSURE RELIEF VALVE DN32 x 1 1/4" G (0,5-6 BAR) 1 3.87 1/1
2259 08 09 11 SS PRESSURE RELIEF VALVE DN40 x 2" G (0,5-6 BAR) 1 6.4 1/1
2259 09 09 11 SS PRESSURE RELIEF VALVE DN50 x 2" G (0,5-6 BAR) 1 7.29 1/1
2259 09 09 12 V. DE ALIVIO DN50 x 2" G (6,1-25 BAR) 1 7.29 1/1
