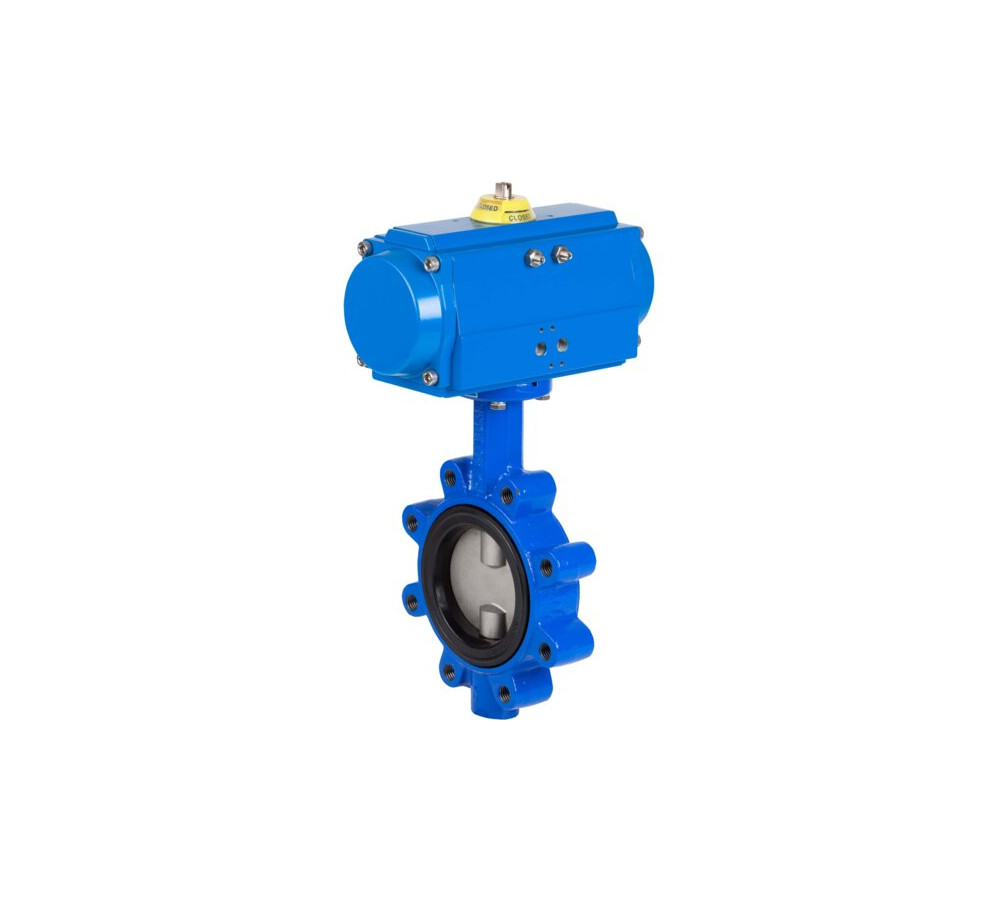

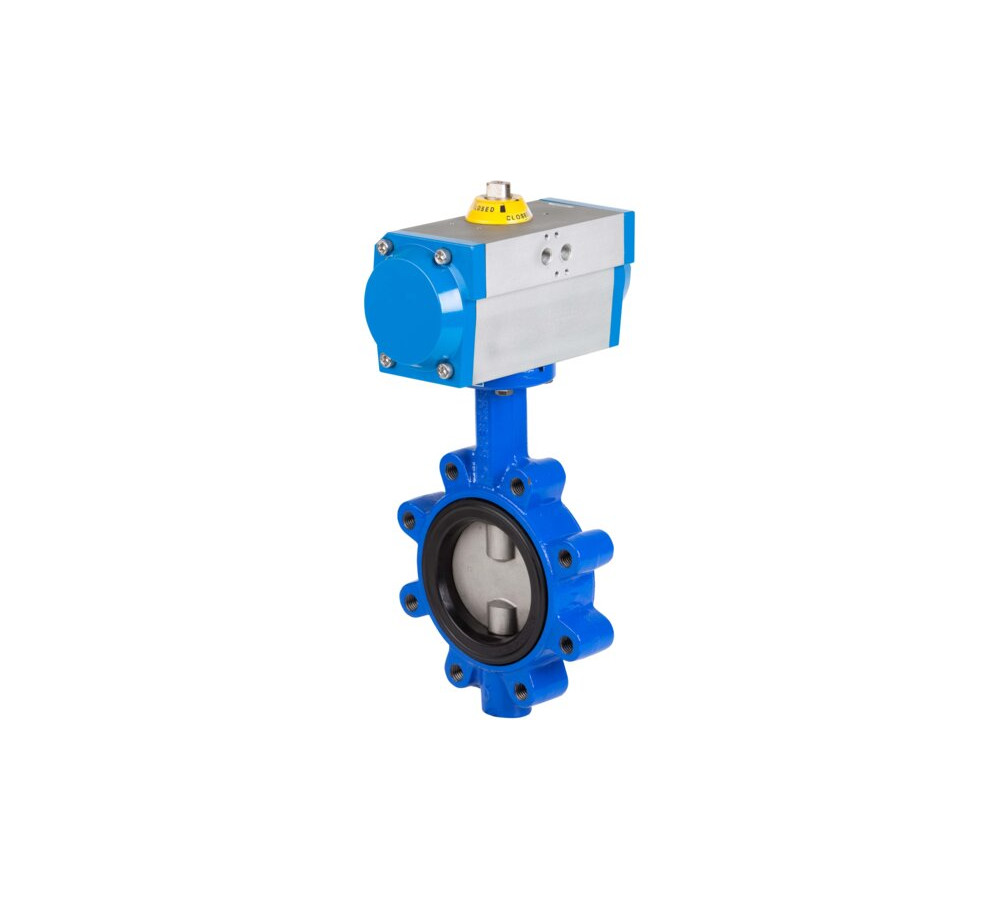

Butterfly valve LUG type (DIN flanges)

Butterfly valve LUG type (DIN flanges).
PN 16 ≤ DN 150 – PN 10 ≥ DN 200.
Body: ductile iron GGG-40. Disc: CF8M (316).
Seat: EPDM. Stem o’ring NBR.
Working temperature -20ºC +120ºC.
Mounting actuator according to ISO 5211 std.
Handle up to 10” with gear operator from 12”.
With Gen-Air actuator.

Reference: 5508

Gen-Air Actuator technical sheet
Valve Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
5508 09 48 V. 2108 2" WITH GN-15 1 6.63 1/1
5508 10 48 V. 2108 2"1/2 WITH GN-15 1 7.33 1/1
5508 10 85 V. 2108 2"1/2 WITH GN-25/S5 1 9.98 1/1
5508 11 53 V. 2108 3" WITH GN-17 1 6.63 1/1
5508 12 64 V. 2108 4" WITH GN-20 1 11.83 1/1
5508 13 65 V. 2108 5" WITH GN-25 1 15.17 1/1
5508 14 65 V. 2108 6" WITH GN-25 1 14.5 1/1
5508 16 67 V. 2108 8" WITH GN-35 1 25.78 1/1
5508 18 68 V. 2108 10" WITH GN-40 1 37.33 1/1
5508 20 69 V. 2108 12" WITH GN-45 1 56.9 1/1
