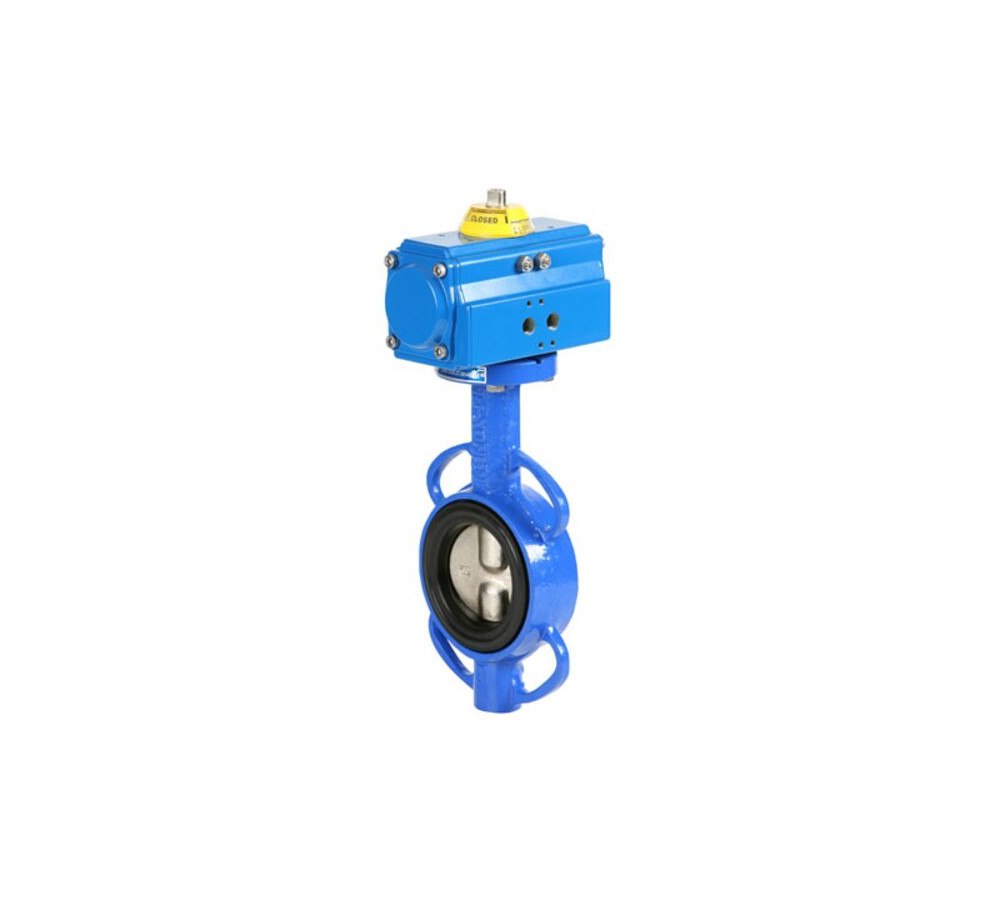

Butterfly valve wafer type

Butterfly valve wafer type.
Body: cast iron + epoxy. Disk: zinc plated. Elastomer: EPDM. O’ring stem: NBR.
Max. temp. 120ºC. Flanges mounted actuators ISO 5211 handle up to 10” with gear operator from 12”.
With Gen-Air actuator.

-4ºF + 248ºF

Reference: 5113

Gen-Air Actuator technical sheet
Valve Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
5113 09 48 V. 2103 2" WITH GN-15 1 4.44 1/1
5113 10 48 V. 2103 2"1/2 WITH GN-15 1 5.22 1/1
5113 11 53 V. 2103 3" WITH GN-17 1 7.61 1/1
5113 12 64 V. 2103 4" WITH GN-20 1 10.03 1/1
5113 13 65 V. 2103 5" WITH GN-25 1 13.07 1/1
5113 14 65 V. 2103 6" WITH GN-25 1 14.1 1/1
5113 16 67 V. 2103 8" WITH GN-35 1 23.48 1/1
5113 18 68 V. 2103 10" WITH GN-40 1 31.23 1/1
5113 20 69 V. 2103 12" WITH GN-45 1 45.4 1/1
5113 22 180 V. 2103 14" WITH GNP-2500/S5 1 144.55 1/1
5113 24 180 V. 2103 16" WITH GNP-2500/S5 1 117.5 1/1
5113 28 100 V. 2103 20" WITH GN-70 1 0.01 1/1
