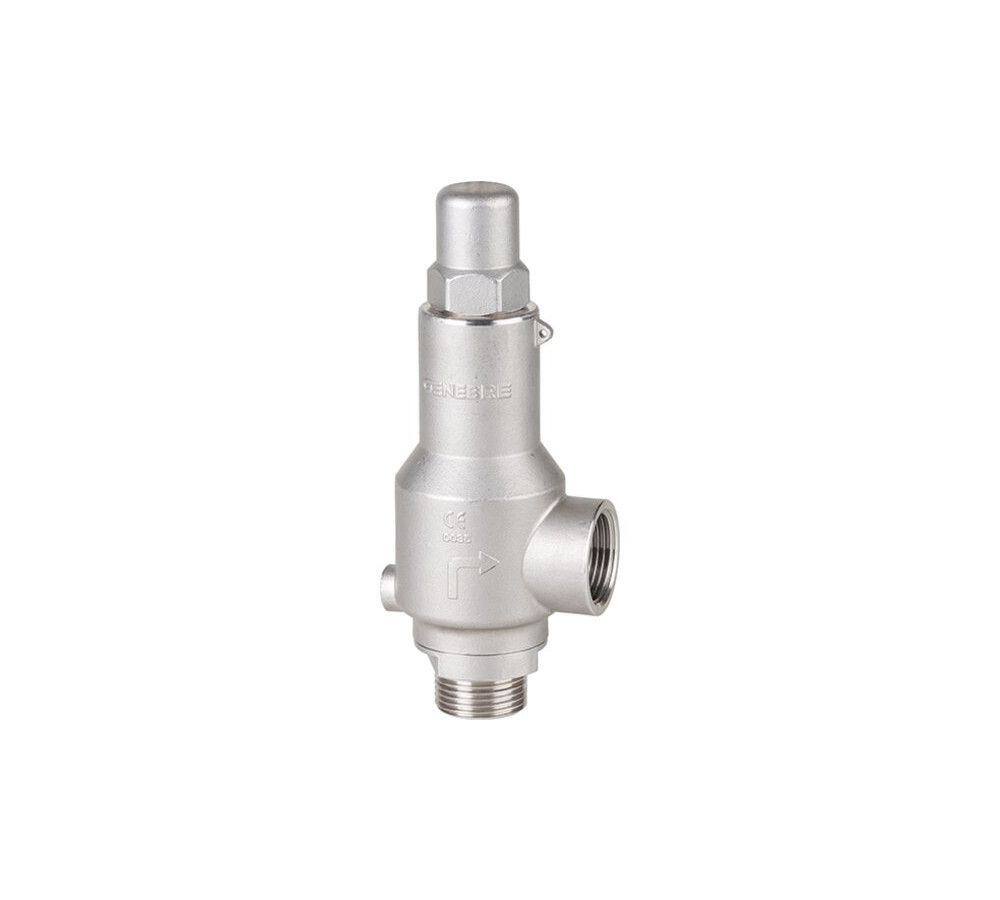

Pressure relief valve.

NPT threaded ends acc./ ISO 228/1 M-F, available with NPT threaded (2258N). Construction: Stainless steel 1.4408 (CF8M). PTFE sealing. Set pressure between 0,5 barg and 25 barg. Max. working pressure 25 bar. Working temperature -20ºC +200ºC.

Reference: 2258N

See Technical Sheet
Installation Manual
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2258N 04 06 11 PRESSURE RELIEF VALVE 1/2" G x 1" G (0,5-6 BAR) NPT 1 1.7 1/1
2258N 04 06 12 V. DE ALIVIO 1/2" x 1" (6,1-25 BAR) NPT 1 1.7 1/1
2258N 05 06 12 V. DE ALIVIO 3/4" x 1" (6,1-25 BAR) NPT 1 1.86 1/1
2258N 06 06 11 PRESSURE RELIEF VALVE 1" G x 1" G (0,5-6 BAR) NPT 1 1.9 1/1
2258N 06 06 12 V. DE ALIVIO 1" x 1" (6,1-25 BAR) NPT 1 1.35 1/1
