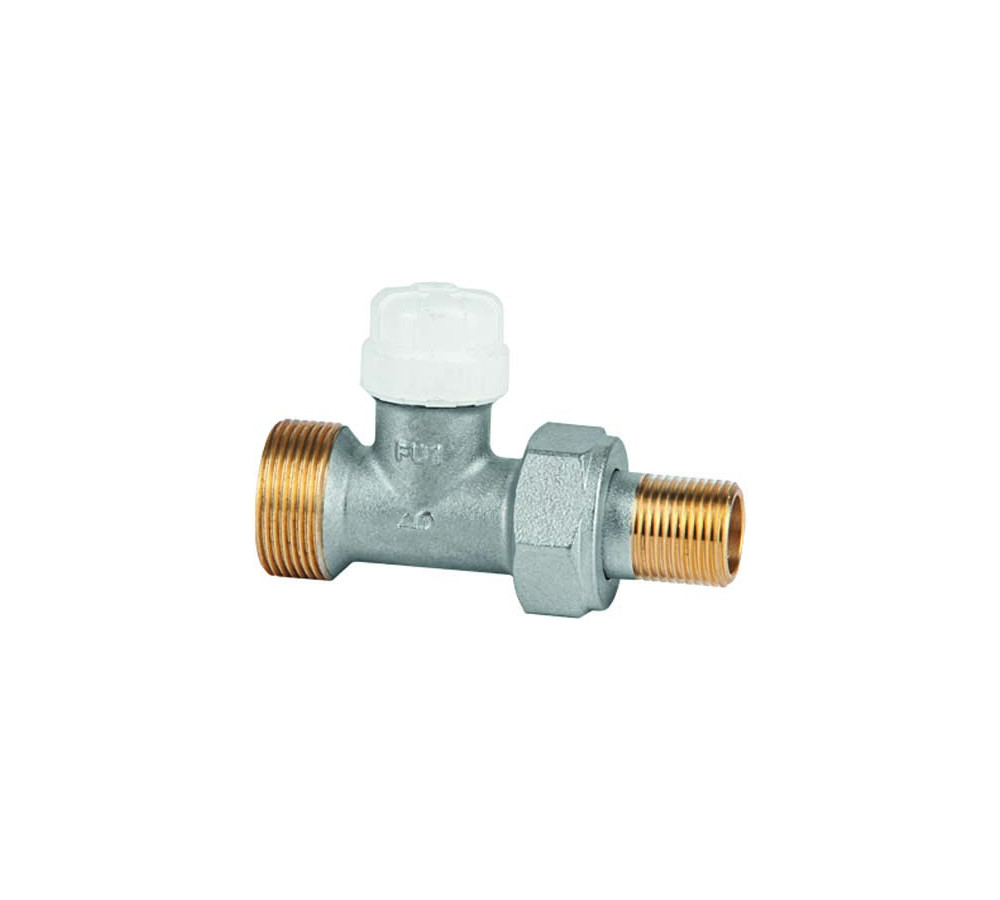

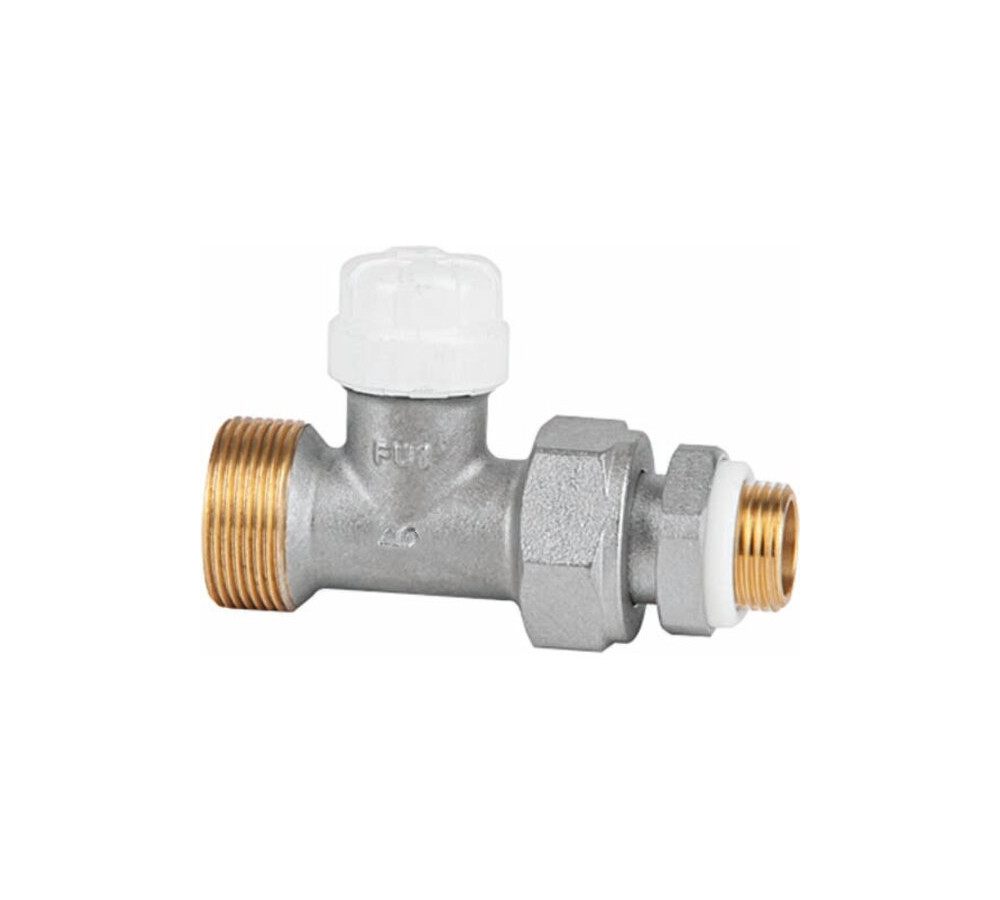

Straight lock shield valve for copper, PEX and multilayer pipe with GE System

PN10. Body nickel plated brass UNE-EN 12165. NBR sealing joints. ABS cap. Pipe connection through male thread W24,5x19h". Terminal connection though male thread ISO 228/1 with GE-System. Max. temp. 110ºC

Reference: 70565

See Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
70565 03 00 DETENTOR RECTO 3/8" GE-SYSTEM 1 0.17 10/10
70565 03 40 DETENTOR RECTO 3/8" 1 0.2 1/1
70565 04 00 DETENTOR RECTO 1/2" GE-SYSTEM 10 0.18 10/100
70565 04 40 DETENTOR RECTO 1/2" 10 0.5 10/100
