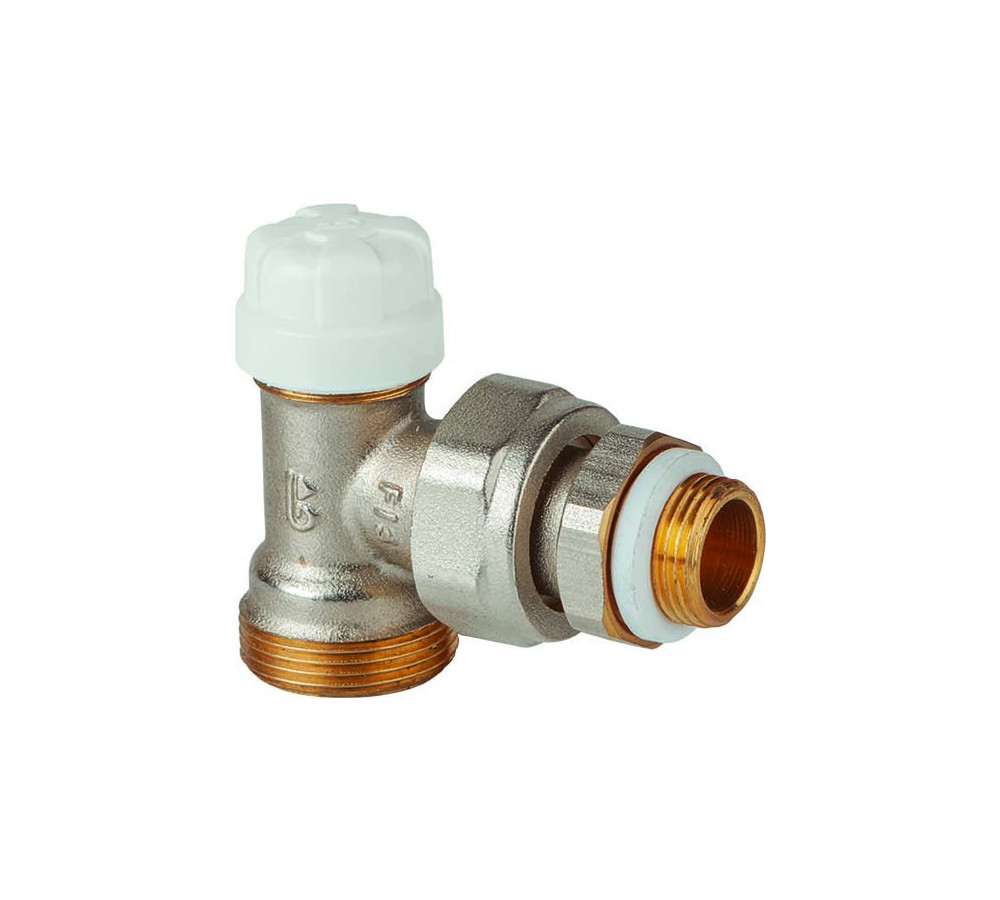

Angle lock shield valve for copper, PEX and multilayer pipe with GE System

PN10. Body nickel plated brass UNE-EN 12165. NBR sealing joints. ABS cap. Pipe connection through male thread W24,5x19h". Terminal connection though male thread ISO 228/1 with GE-System. Max. temp. 110ºC

Reference: 70564

See Technical Sheet

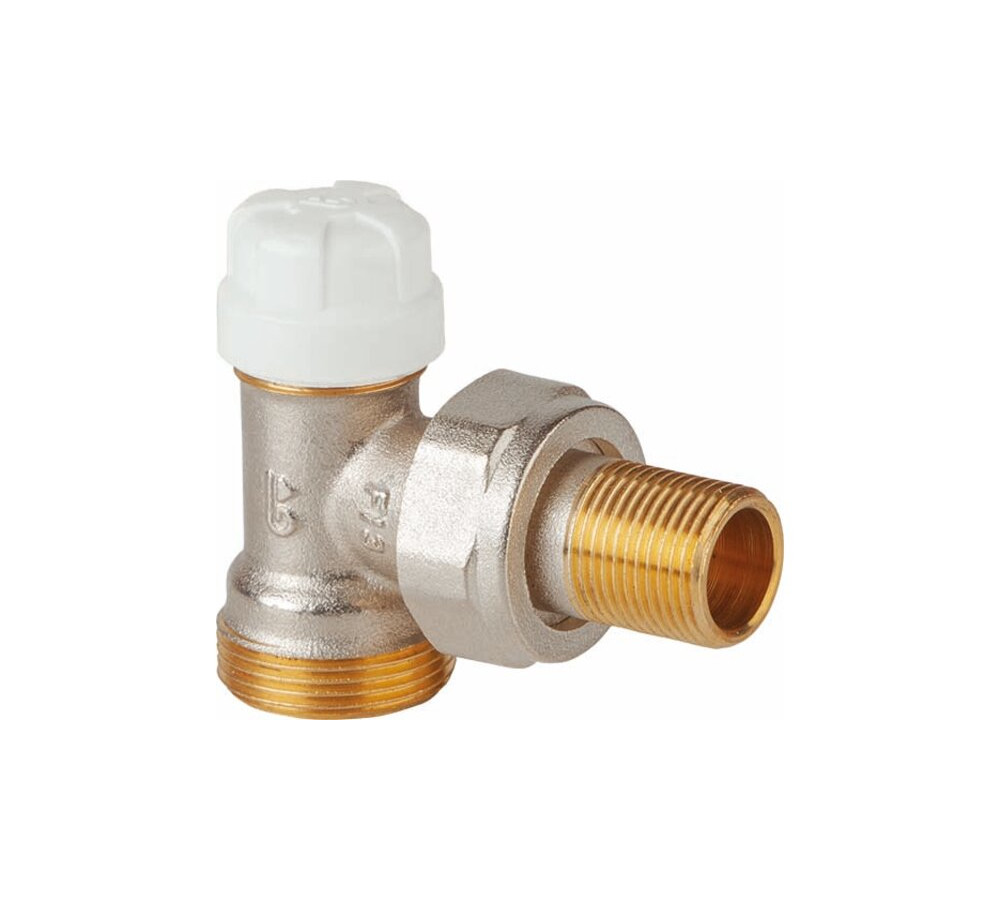

Manual angle radiator valve for steel pipe with GE System
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
70564 03 00 ANGLE LOCK SHIELD VALVE 3/8" 10 0.136 10/140
70564 03 40 DETENTOR ESCUADRA. 3/8" 10 0.126 10/140
70564 04 00 ANGLE LOCK SHIELD VALVE 1/2" 10 0.153 10/140
70564 04 40 DETENTOR ESCUADRA. 1/2" 10 0.138 10/140
