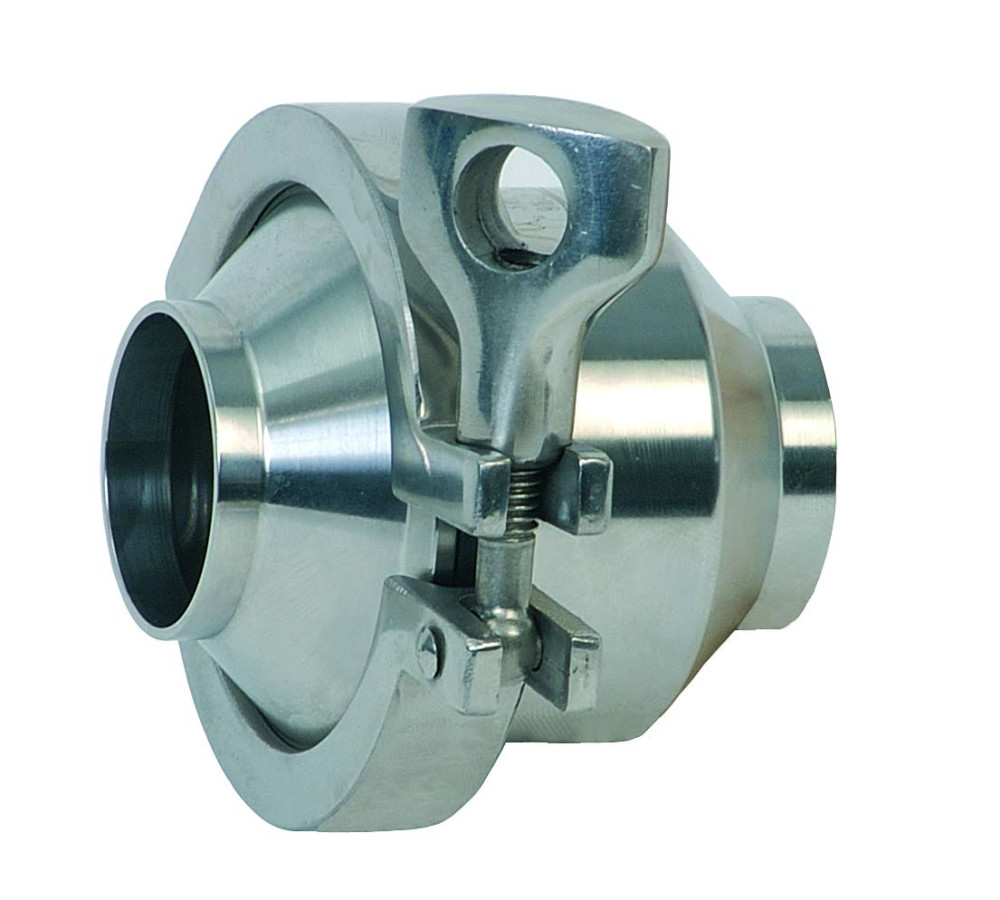

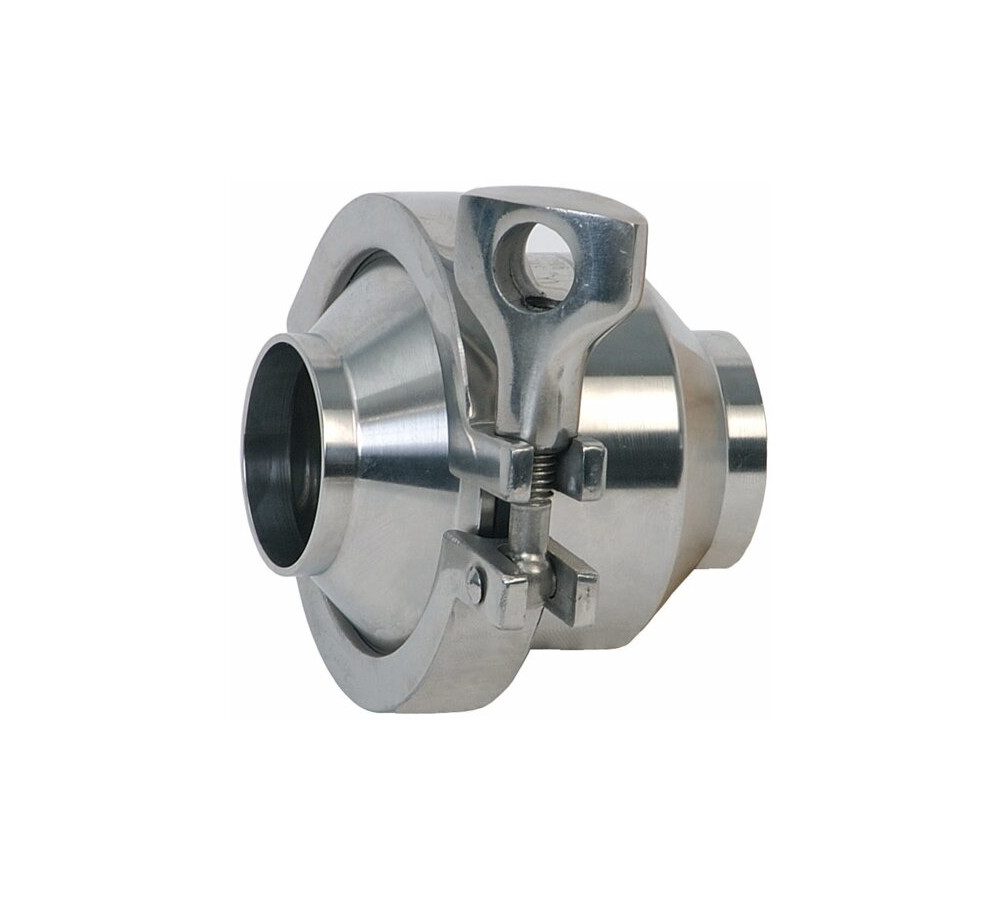

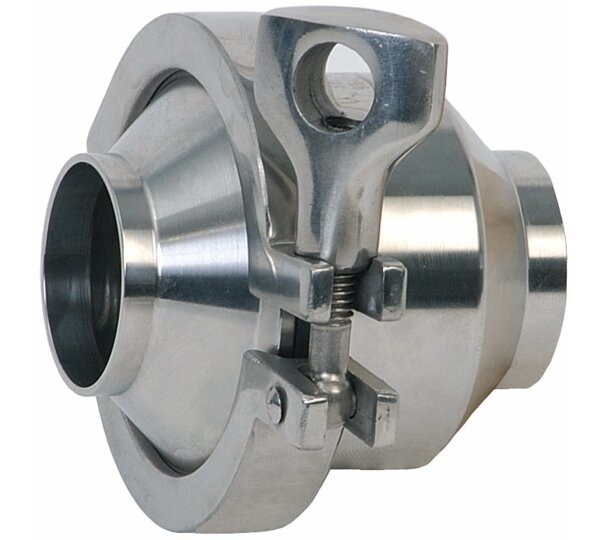

Check valve welded end

Stainless steel body 304. EPDM sealing - silicone joint. Welded ends. Sanitary polish. Max. working pressure: 10 bar. Max. temp. 120ºC.

Reference: 2935

See Technical Sheet
Installation Manual
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2935 06 CHECK VALVE WELDED ENDS 1" 1 0.653 2/20
2935 07 CHECK V. WELDED ENDS 1 1/4" 1 0.855 2/16
2935 08 CHECK V. WELDED ENDS 1 1/2" 1 0.863 2/16
2935 09 CHECK VALVE WELDED ENDS 2" 1 1.231 2/6
2935 10 CHECK V. WELDED ENDS 2 1/2" 1 1.617 2/8
2935 11 CHECK VALVE WELDED ENDS 3" 1 2.134 2/6
2935 12 CHECK VALVE WELDED ENDS 4" 1 3.66 1/2
