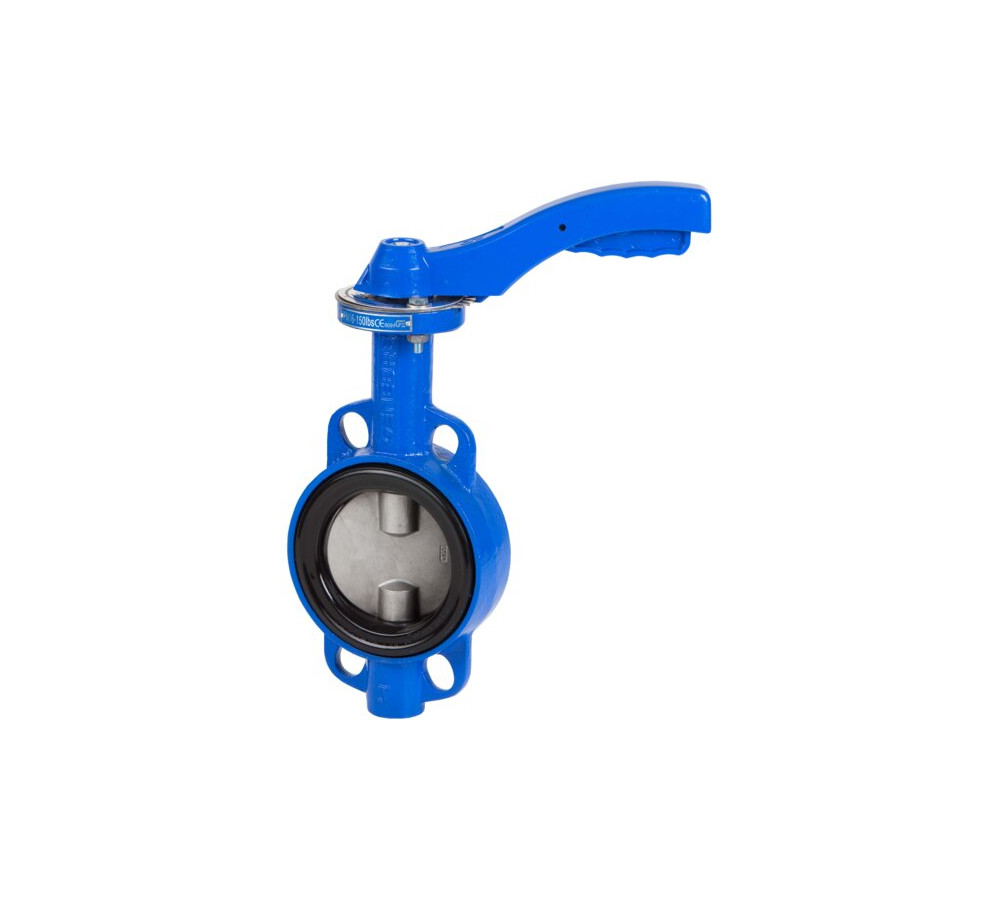

Wafer type butterfly valve
PN 10/16. ANSI 150 lbs

Body: cast iron + epoxy. Disk: stainless steel AISI 316.
Elastomer: EPDM. O’ring stem: NBR. Max. temp. 120ºC.
Flanges mounted actuators ISO 5211.
Handle up to 10” with gear operator from 12”.

Reference: 2109

Valve Technical Sheet
Installation Manual
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2109 09 BUTTERFLY V. WAFER TYPE 2" 1 2.66 1/8
2109 10 BUTTERFLY V. WAFER TYPE 2"1/2 1 3.113 1/5
2109 11 BUTTERFLY V. WAFER TYPE 3" 1 3.589 1/6
2109 12 BUTTERFLY V. WAFER TYPE 4" 1 5.483 1/4
2109 13 BUTTERFLY V. WAFER TYPE 5" 1 6.768 1/3
2109 14 BUTTERFLY V. WAFER TYPE 6" 1 7.91 1/2
2109 16 BUTTERFLY V. WAFER TYPE 8" 1 14.286 1/1
2109 18 BUTTERFLY V. WAFER TYPE 10" 1 21.902 1/1
2109 20 BUTTERFLY V. WAFER TYPE 12" 1 38.307 1/1
2109 22 BUTTERFLY V. WAFER TYPE 14" 1 55.113 1/1
2109 24 BUTTERFLY V. WAFER TYPE 16" 1 74.663 1/1
2109 26 BUTTERFLY V. WAFER TYPE 18" 1 117.633 1/1
2109 28 BUTTERFLY V. WAFER TYPE 20" 1 141.471 1/1
