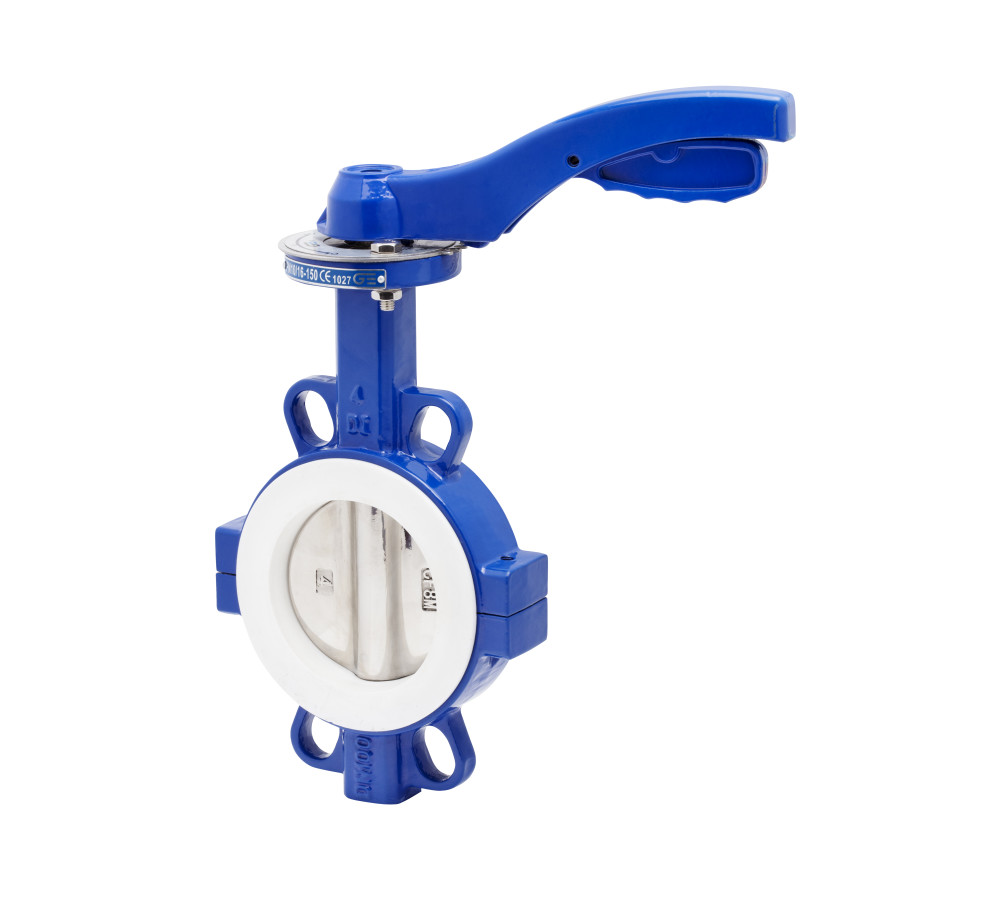

Wafer type butterfly valve
Mounting between flanges PN 10/16 - ANSI 150 lbs

Body, ductile iron GGG-40. Stem and disc: stainless steel 316.
Seat: PTFE with silicone backup ring. Temp. -25ºC +180ºC.
Manually operated by handle until 5”, from 6” with cast iron gear operator. Face to face according to DIN 3202 K1. Working pressure: 10 bar

Reference: 2101

Valve Technical Sheet
Installation Manual
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2101 09 WAFER TYPE BUTTERFLY VALVE 2" 1 2.786 1/7
2101 10 WAFER TYPE BUTTERFLY VALVE 2 1/2" 1 3.18 1/5
2101 11 WAFER TYPE BUTTERFLY VALVE 3" 1 3.586 1/5
2101 12 WAFER TYPE BUTTERFLY VALVE 4" 1 5.67 1/4
2101 13 WAFER TYPE BUTTERFLY VALVE 5" 1 7.605 1/3
2101 14 WAFER TYPE BUTTERFLY VALVE 6" 1 12.984 1/1
2101 16 WAFER TYPE BUTTERFLY VALVE 8" 1 22.359 1/1
