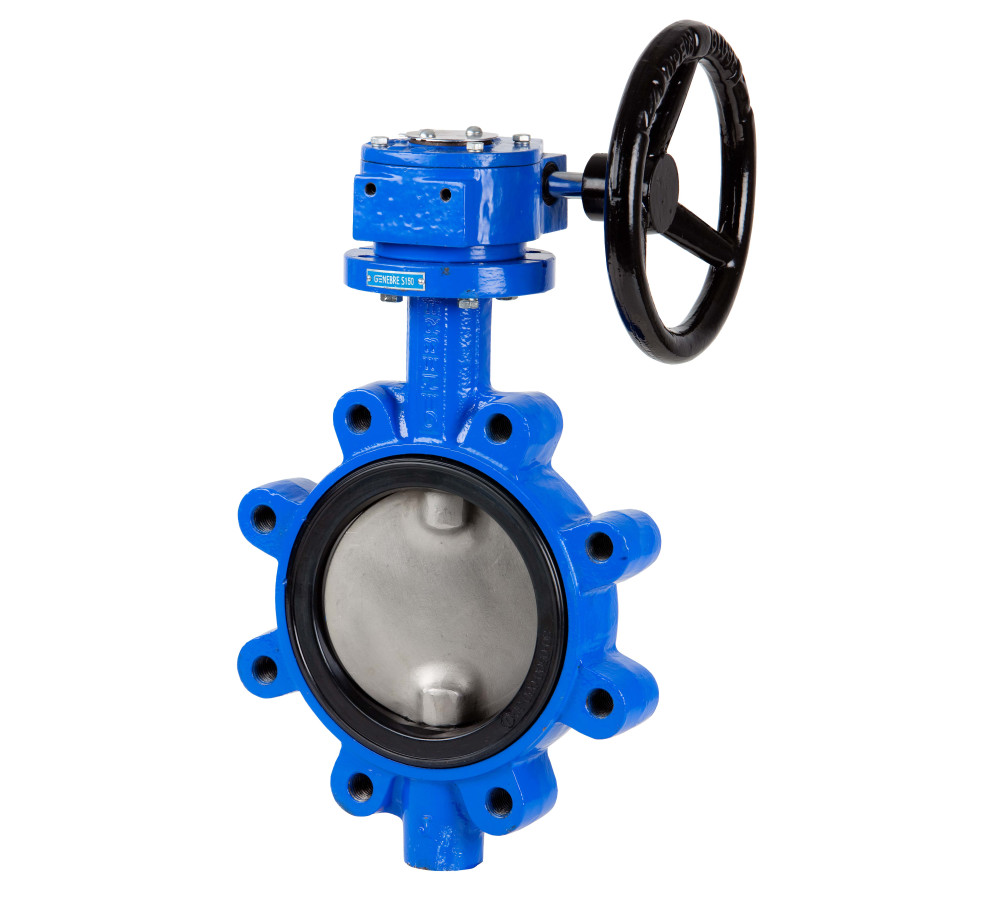

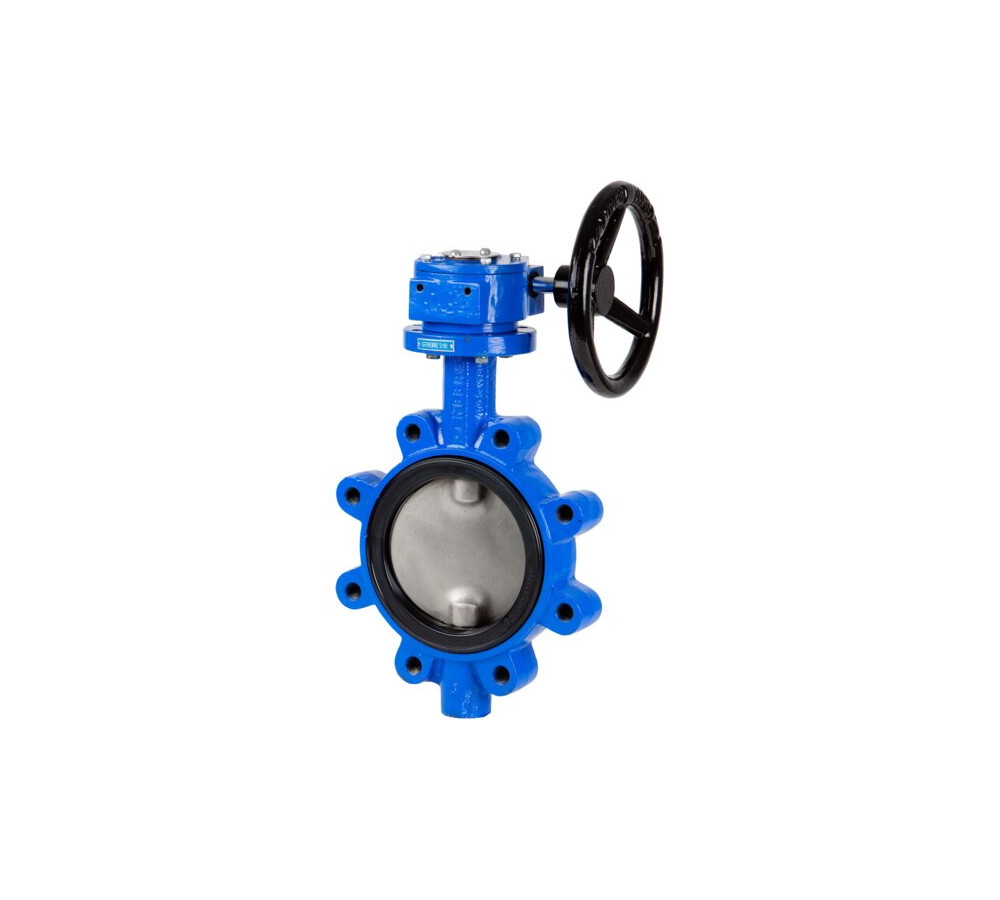

Art. 5108 from 2” to 10” with gear operator.

PN 16 ≤ DN 150 – PN 10 ≥ DN 200.
Body: ductile iron GGG-40. Disc: CF8M (316).
Seat: EPDM. Stem o’ring NBR.
Working temperature -20ºC +120ºC.
Mounting actuator according to ISO 5211 std.
Handle up to 10” with gear operator from 12”.

Reference: 5108

WRAS
CE
PIB
See Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
5108 09 VALVULA MARIPOSA TIPO LUG DIN CON REDUCTOR MANUAL 2" 1 10 1/1
5108 10 VALVULA MARIPOSA TIPO LUG DIN CON REDUCTOR MANUAL 2"1/2 1 10.14 1/1
5108 11 VALVULA MARIPOSA TIPO LUG DIN CON REDUCTOR MANUAL 3" 1 11.24 1/1
5108 12 VALVULA MARIPOSA TIPO LUG DIN CON REDUCTOR MANUAL 4" 1 14.04 1/1
5108 13 VALVULA MARIPOSA TIPO LUG DIN CON REDUCTOR MANUAL 5" 1 14 1/1
5108 14 VALVULA MARIPOSA TIPO LUG DIN CON REDUCTOR MANUAL 6" 1 16.78 1/1
5108 16 VALVULA MARIPOSA TIPO LUG DIN CON REDUCTOR MANUAL 8" 1 25.56 1/1
5108 18 VALVULA MARIPOSA TIPO LUG DIN CON REDUCTOR MANUAL 10" 1 37.83 1/1
