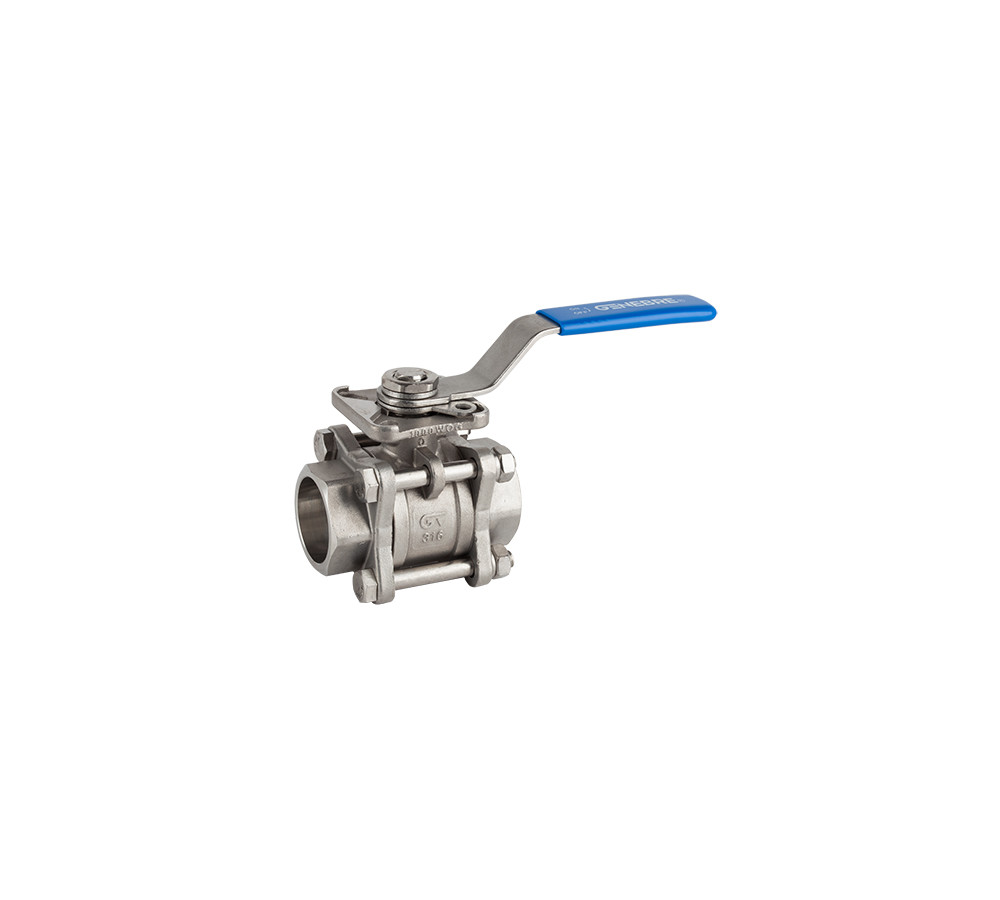

3 pcs full bore ball valve socket weld ANSI B 16.11

Const.: stainless steel CF8M (316) investment casting. Seats and seals: PTFE +15% GF o’ring stem: viton. PN 63. Temp. -25ºC +180ºC. Manually operated by handle. Direct assembling ISO 5211 with locking system.

1000 WOG -13ºF + 356ºF

Reference: 2027

Valve Technical Sheet
Installation Manual
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2027 02 3PCS FULL BORE B.V. SOCKET1/4" 1 0.387 8/64
2027 03 3PCS FULL BORE B.V. SOCKET3/8" 1 0.367 8/64
2027 04 3PCS FULL BORE B.V. SOCKET1/2" 1 0.426 6/54
2027 05 3PCS FULL BORE B.V. SOCKET3/4" 1 0.822 3/27
2027 06 3PCS FULL BORE B.V. SOCKET 1" 1 1.027 2/20
2027 07 3PCS MOUNT.PAD SOCKET W. 1 1/4 1 1.868 1/8
2027 08 3PCS MOUNT.PAD SOCKET W. 1 1/2 1 2.508 4/8
2027 09 3PCS MOUNT.PAD SOCKET W. 2 1 3.563 2/6
2027 10 3PCS FULL BORE B.V.SOCKET2 1/2 1 9.016 1/2
2027 11 3PCS FULL BORE B.V. SOCKET 3" 1 12.846 1/1
2027 12 3PCS FULL BORE B. V. SOCKET 4" 1 19.568 1/1
