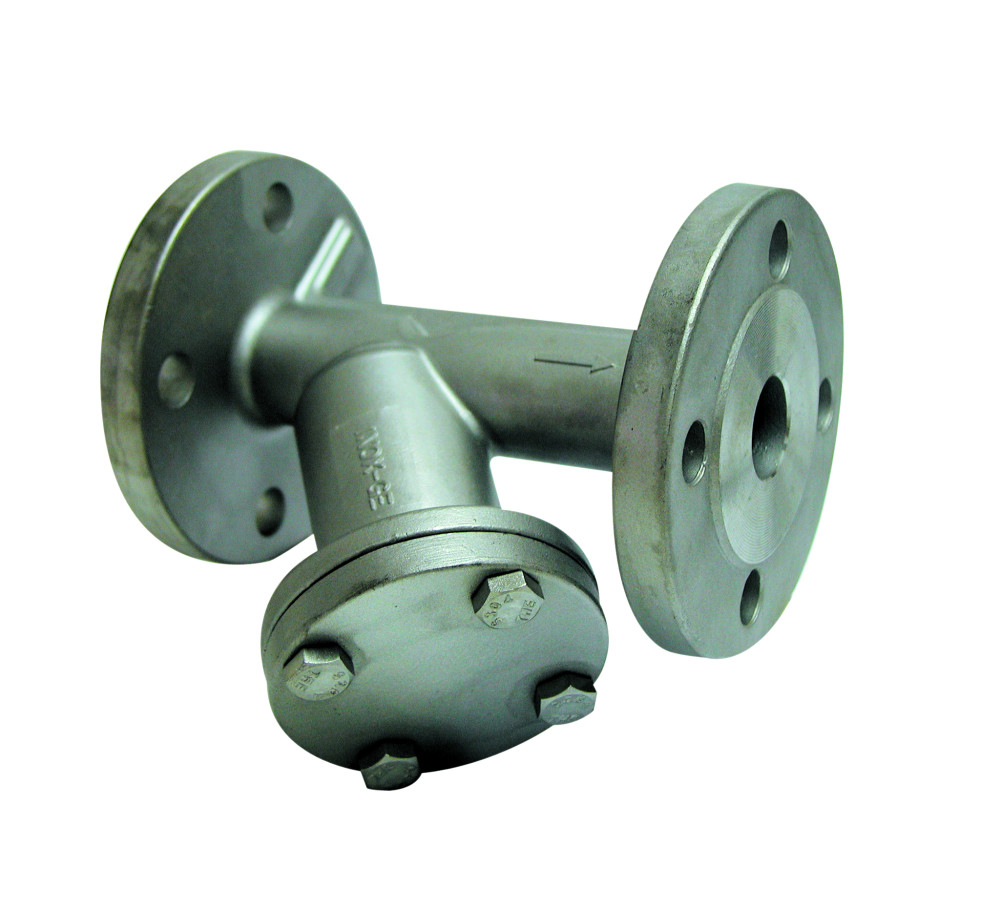

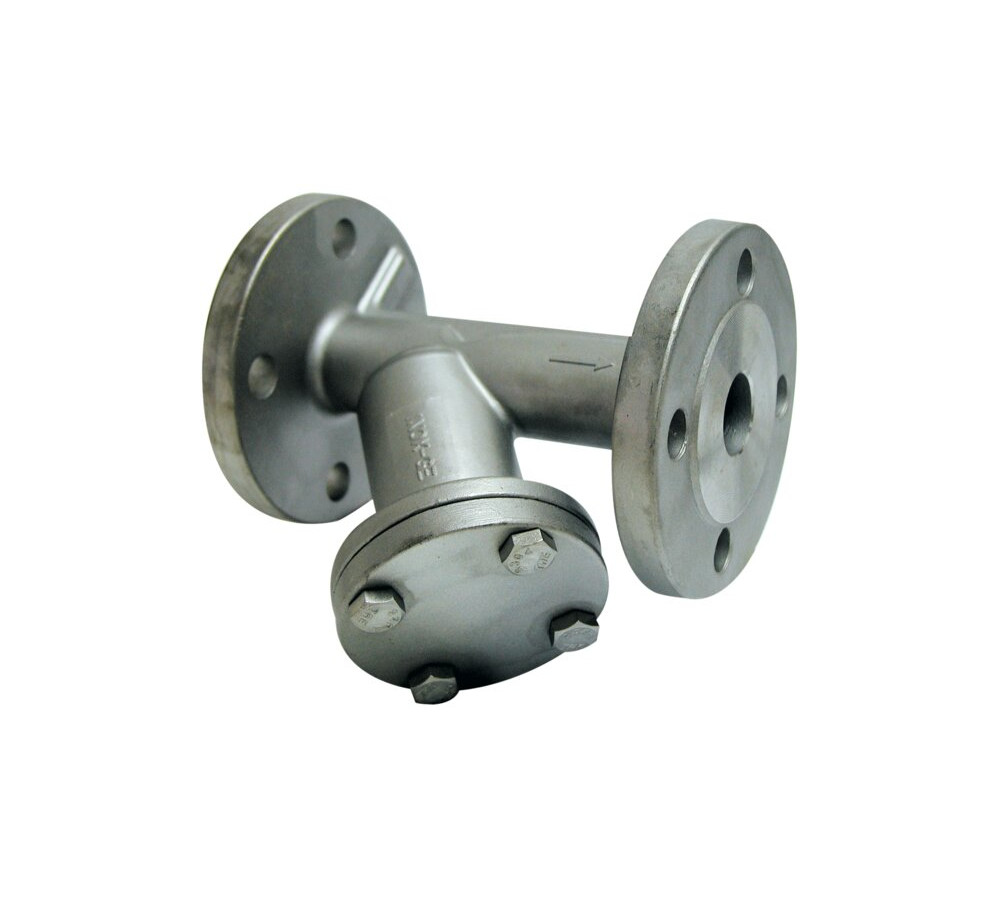

Strainer Y. Flanged ANSI B 16.5 S-150

Construction: AISI 316. Gasket: PTFE. Connection: flanged ANSI. Class 150. Working pressure: 19 kg/cm2. Temp.: -30ºC +240ºC. Screen: AISI 316 perforated plate (see d1).

275 Psi  -22ºF + 464ºF

Reference: 2461A

See Technical Sheet
Installation Manual
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2461A 09 STRAINER Y FLANGED ANSI B 16.5 S-150 2" 1 7.374 1/3
2461A 10 STRAINER Y FLANGED ANSI B 16.5 S-150 2 1/2" 1 11.385 1/1
2461A 11 FLANGED "Y" STRAINER ANSI B16.5 S-150 3" 1 14.857 1/1
2461A 12 STRAINER Y FLANGED ANSI B16.5 S-150 4" 1 23.144 1/1
2461A 14 FLANGED "Y" STRAINER ANSI B16.5 S-150 6" 1 41.27 1/1
2461A 16 STRAINER Y FLANGED ANSI B16.5 S-150 8" 1 72.062 1/1
