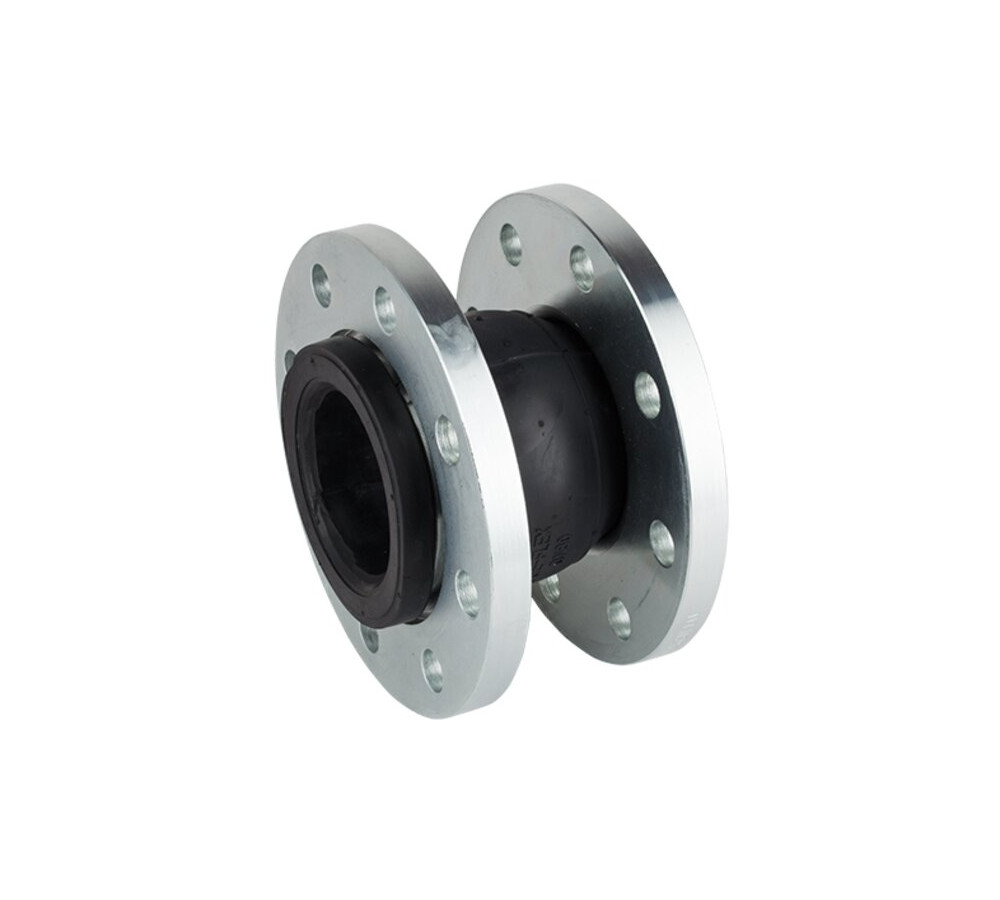

Rubber expansion joint

Body: EPDM. Zinc plated ANSI 150 lbs flanges.
Max. working pressure: 19 kg/cm2. Temp.: -10ºC +105ºC.

275 Psi  -14ºF + 221ºF

Reference: 2831A

See Technical Sheet
Installation Manual
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2831A 07 RUBBER EXPANSION-JOINT SINGLE WAVE FLANGES ANSI DN-32 1 1/4" 1 1.914 1/10
2831A 08 RUBBER EXPANSION-JOINT SINGLE WAVE FLANGES ANSI DN-40 1 1/2" 1 2.31 1/1
2831A 09 RUBBER EXPANSION-JOINT SINGLE WAVE FLANGES ANSI DN-50 2" 1 3.314 1/6
2831A 10 RUBBER EXPANSION-JOINT SINGLE WAVE FLANGES ANSI DN-65 2 1/2" 1 4.587 1/4
2831A 11 RUBBER EXPANSION-JOINT SINGLE WAVE FLANGES ANSI DN-80 3" 1 5.752 1/2
2831A 12 RUBBER EXPANSION-JOINT SINGLE WAVE FLANGES ANSI DN-100 4" 1 7.65 1/2
2831A 13 RUBBER EXPANSION-JOINT SINGLE WAVE FLANGES ANSI DN- 125 5" 1 9.575 1/1
2831A 14 RUBBER EXPANSION-JOINT SINGLE WAVE FLANGES ANSI DN-150 6" 1 12.268 1/1
2831A 16 RUBBER EXPANSION-JOINT SINGLE WAVE FLANGES ANSI DN-200 8" 1 17.752 1/1
2831A 18 RUBBER EXPANSION-JOINT SINGLE WAVE FLANGES ANSI DN-250 10" 1 24.813 1/1
2831A 20 RUBBER EXPANSION-JOINT SINGLE WAVE FLANGES ANSI DN- 300 12" 1 37.385 1/1
2831A 22 RUBBER EXPANSION-JOINT SINGLE WAVE FLANGES ANSI DN-350 14" 1 46.364 1/1
2831A 24 RUBBER EXPANSION-JOINT SINGLE WAVE FLANGES ANSI DN 400 16" 1 55.638 1/1
2831A 26 RUBBER EXPANSION-JOINT SINGLE WAVE FLANGES ANSI DN-450 18" 1 52.807 1/1
2831A 28 RUBBER EXPANSION-JOINT SINGLE WAVE FLANGES ANSI DN-500 20" 1 69.114 1/1
