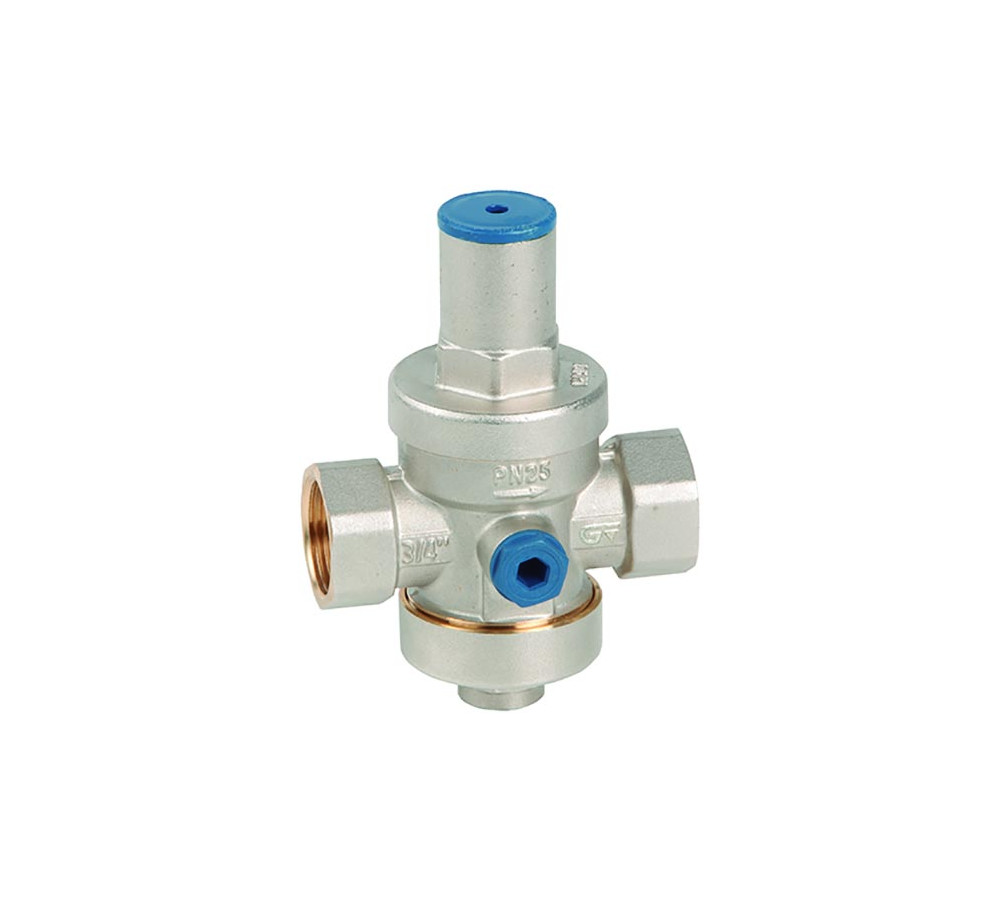

Redux-GE piston pressure reducer valve NPT thread

PN 25. Chrome plated brass construction UNE-EN 12165. AISI 303 stainless steel sealing. Zinc plated steel spring EN-10270. EPDM perox joints. Gas threaded ends NPT F-F - ANSI B 1.20.1. Max. working temp. 130ºC. Max. inlet pressure 25 bar.


400 WOG 266ºF


400 WOG 266ºF

Reference: 3318N

See Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
3318N 04 PRESSURE RED. VALVE 1/2" NPT 1 0.544 1/40
3318N 05 PRESSURE RED. VALVE 3/4" NPT 1 0.59 1/40
3318N 06 PRESSURE RED. VALVE 1" NPT 1 1.035 1/20
3318N 07 PRESSURE RED. VALVE 1"1/4 NPT 1 1.134 1/20
3318N 08 PRESSURE RED. VALVE 1"1/2 NPT 1 1.345 1/20
3318N 09 PRESSURE RED. VALVE 2" NPT 1 1.495 1/20
3318N 10 NPT PRESSURE REDUCING VALVE 2"1/2 1 3.9 1/4
3318N 11 NPT PRESSURE REDUCING VALVE 3" 1 5.52 1/3
3318N 12 NPT PRESSURE REDUCING VALVE 4" 1 6.97 1/2
