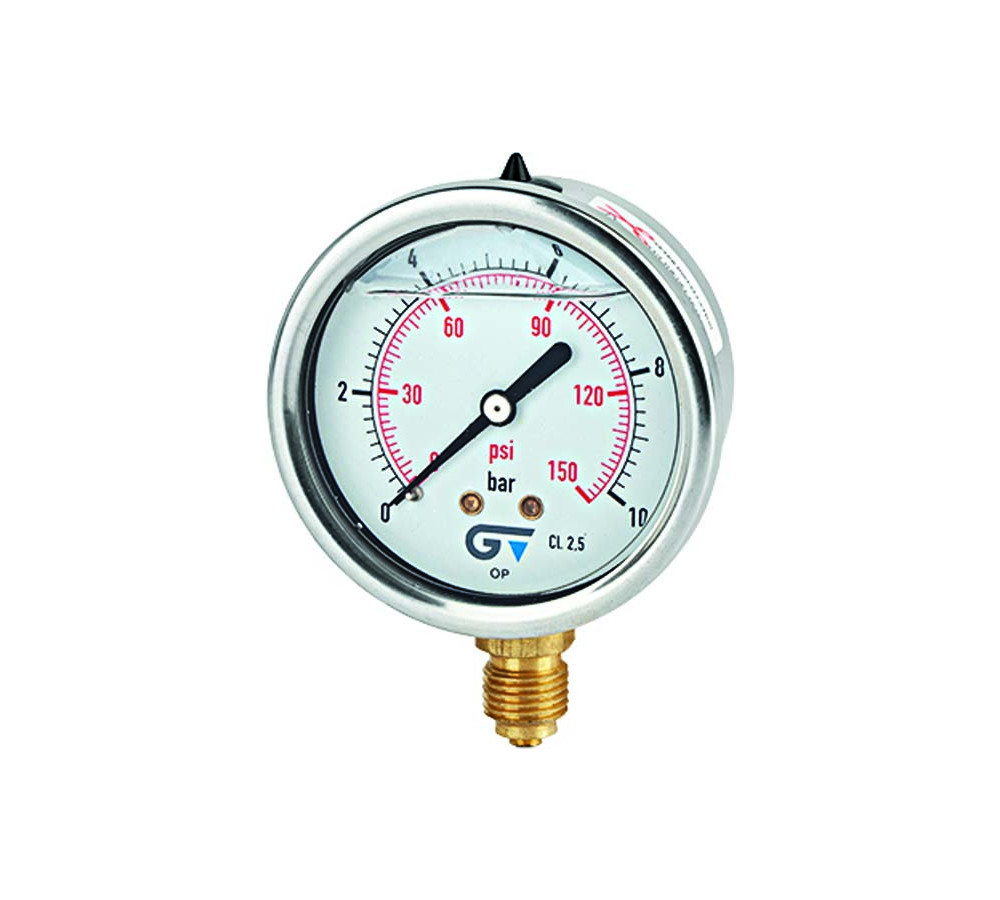

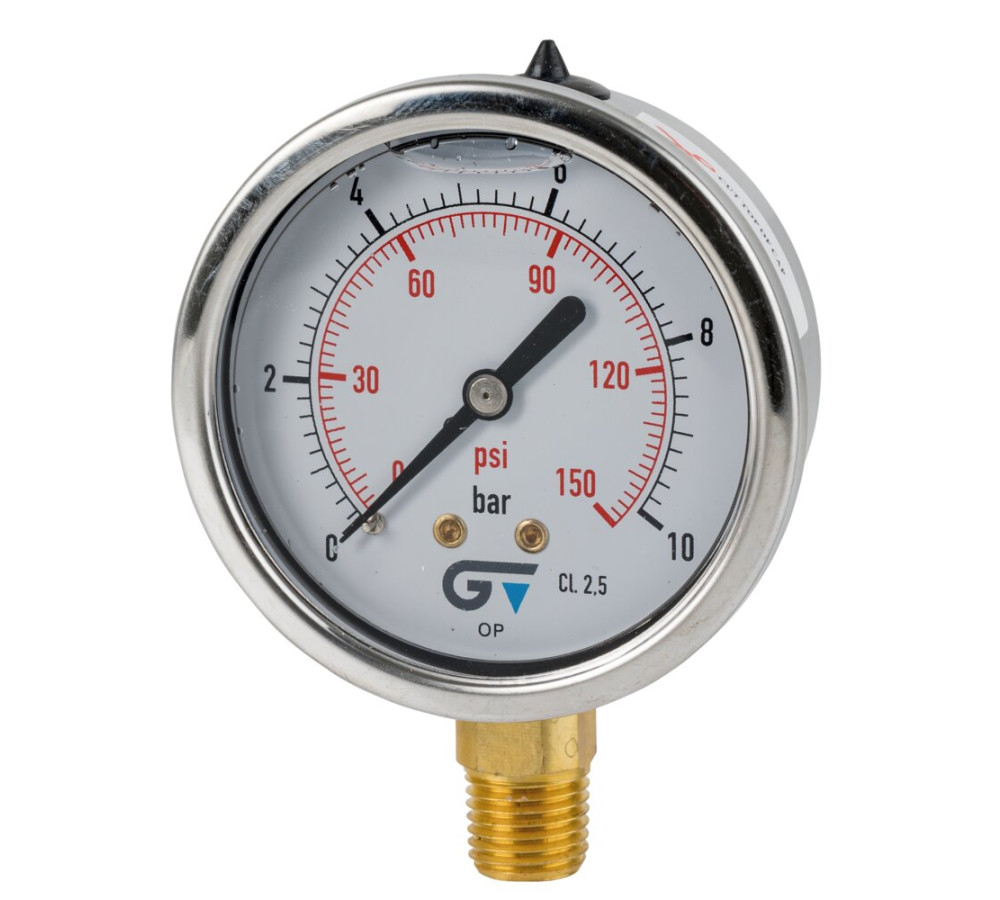

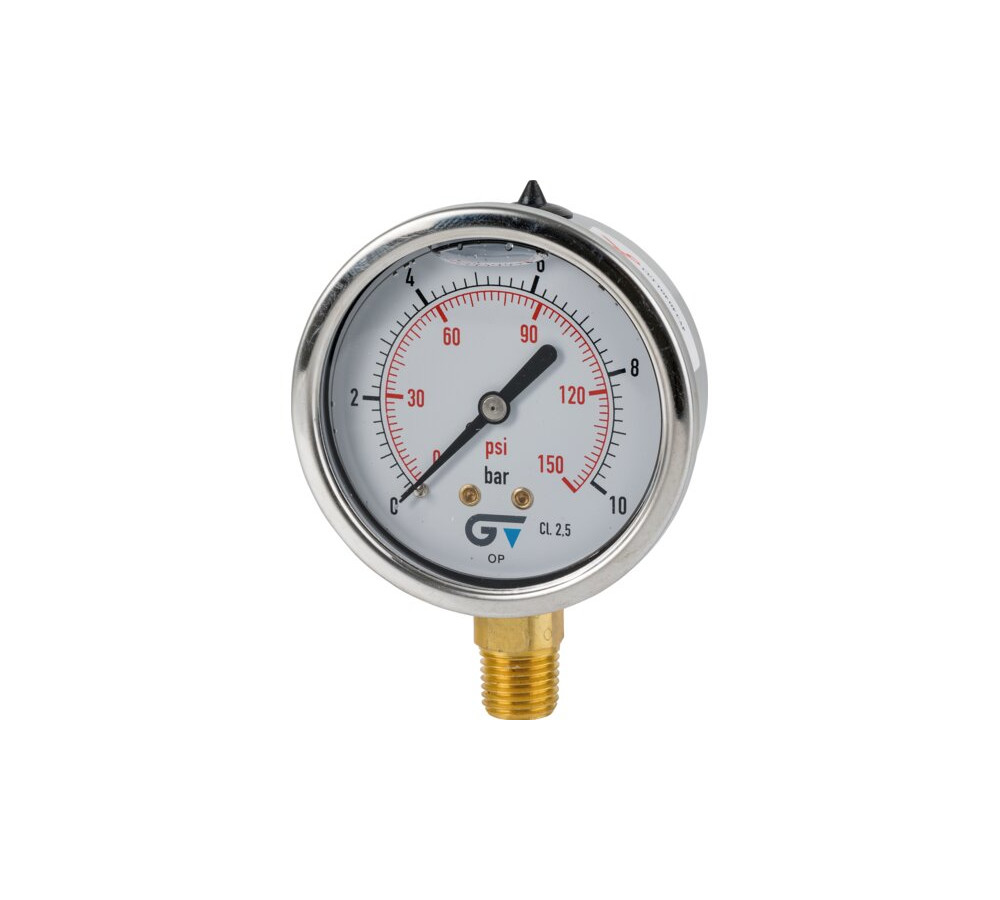

Pressure gauge Ø 63 with glycerine, bottom outlet, NPT thread 1/4".

Stainless steel box. AISI 304. Brass bourdon tube and fitting UNE-EN 12165. 1/4" male thread (NPT). Graduations available 0 to 2,5-4-6-10-16-16-25-60-100 bar. Bottom outlet (radial). Accuracy class 2,5.

Reference: 3822N

See Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
3822N 002 PRES. GAUGE D 63 GLYCERINE NPT 1 0.179 12/108
3822N 004 PRES. GAUGE D 63 GLYCERINE NPT 1 0.179 12/108
3822N 006 PRES. GAUGE D 63 GLYCERINE NPT 1 0.18 12/108
3822N 010 PRES. GAUGE D 63 GLYCERINE NPT 1 0.18 12/108
3822N 016 PRES. GAUGE D 63 GLYCERINE NPT 1 0.182 12/108
3822N 025 PRES. GAUGE D 63 GLYCERINE NPT 1 0.182 12/108
3822N 060 PRES. GAUGE D 63 GLYCERINE NPT 1 0.181 12/108
3822N 100 PRES. GAUGE D 63 GLYCERINE NPT 1 0.182 12/108
