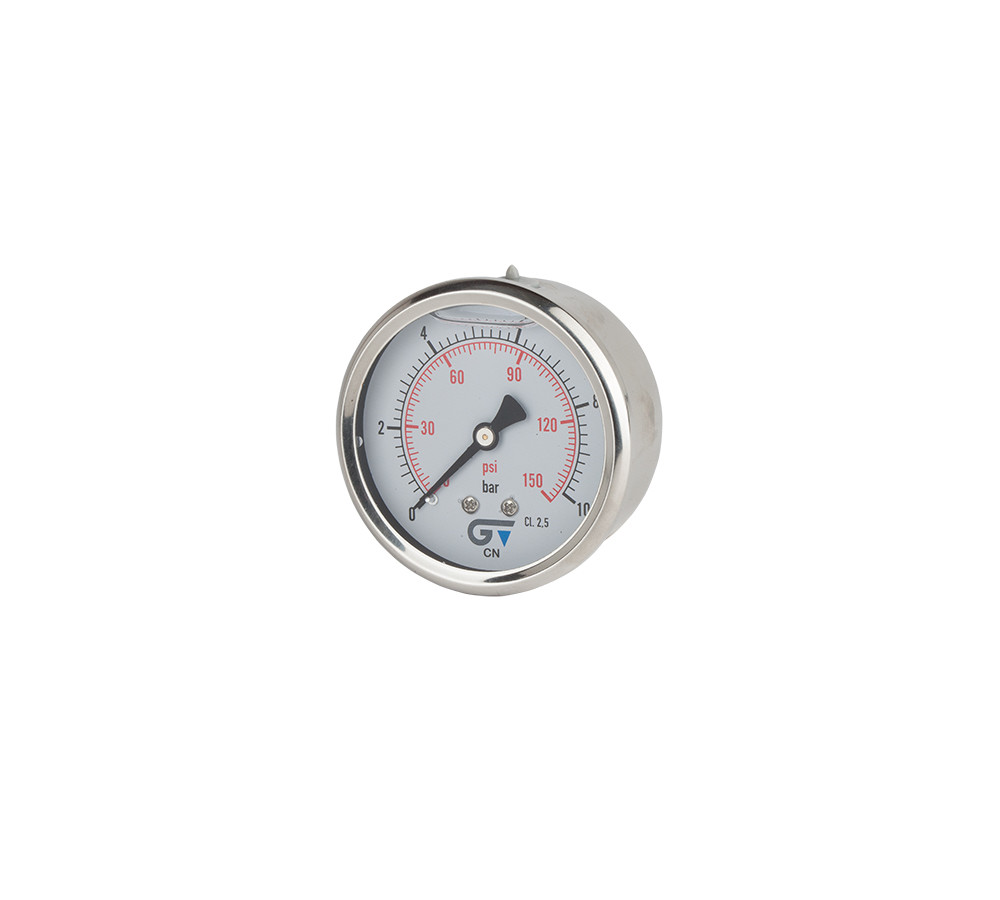

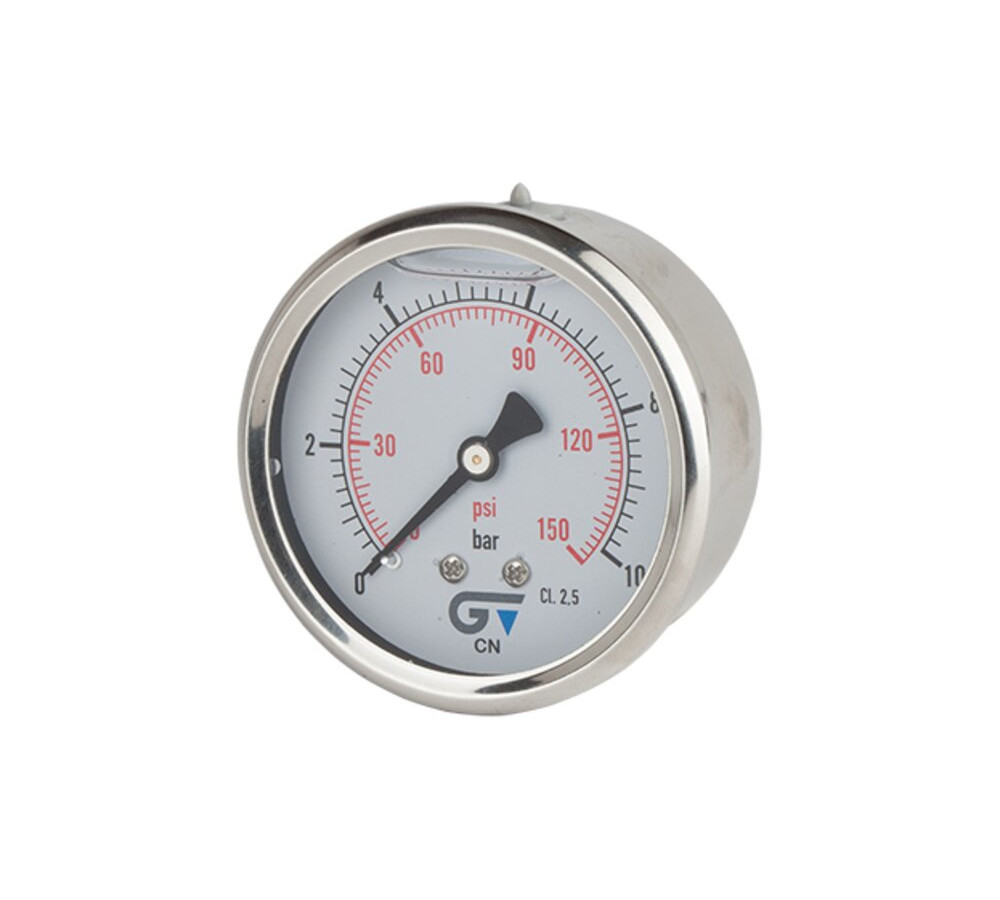

Pressure gauge Ø 63 with glycerine, rear outlet, BSP thread

Stainless steel box. AISI 304 stainless steel case. Brass bourdon tube and fitting UNE-EN 12165. 1/4" male gas thread (BSP). Graduations available 0 to 2,5-4-6-10-16-16-25-60-100 bar. Rear outlet. Precision class 1,6.

Reference: 3829

Request more information
Reference Size Minimum purchase unit Weight (Kg) Box / carton
3829 002 PRESSURE GAUGE D.63 GLYCERINE 1/4"BACK CONNECTION 0,2-5 0-40 1 0.188 6/54
3829 004 PRESSURE GAUGE D.63 W/GLYCERINE1/4" BACK CONNECTION 0-4,0-60 1 0.187 6/54
3829 006 PRESSURE GAUGE D63 W/GLYCERINE 1/4" BACK CONNECTION 0-6,0-90 1 0.188 6/54
3829 010 PRESSURE GAUGE D63 W/GLYCERINE 1/4" BACK CONN. 0-10,0-150 1 0.187 1/60
3829 016 PRESSURE GAUGE D63 W/GLYCERINE 1/4" BACK CONN. 0-16,0-240 1 0.189 6/54
3829 025 PRESSURE GAUGE D63 W/GLYCERINE 1/4" BACK CONN. 0-25, 0-400 1 0.192 6/54
3829 040 PRESSURE GAUGE D63 W/GLYCERINE 1/4" BACK CONN. 0-40, 0-600 1 0.184 1/60
3829 060 PRESSURE GAUGE D63 W/ GLYCERINE 1/4" BACK CONN. 0-60, 0-900 1 0.191 6/54
3829 100 PRESSURE GAUGE D63 W/GLYCERINE 1/4" BACK CONN. 0-100,0-1500 1 0.189 6/54
