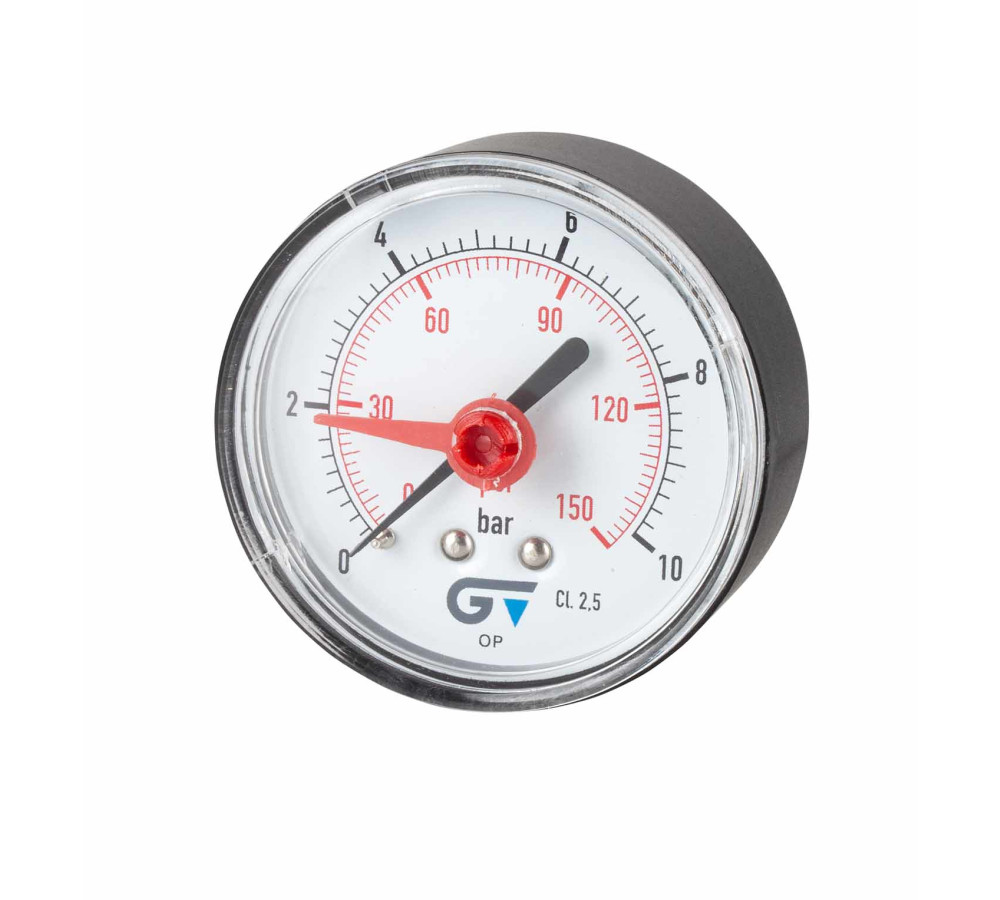

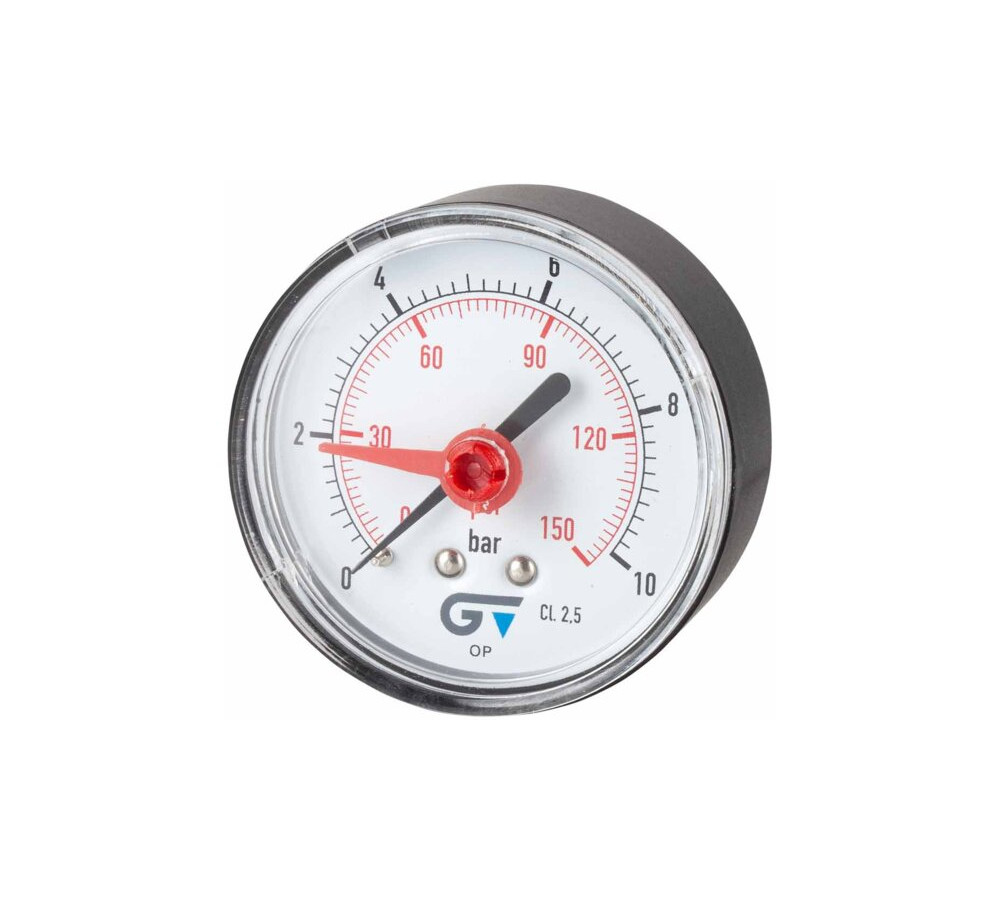

Pressure gauge Ø 63, red indicator, rear outlet 1/4".

ABS box. Brass bourdon tube and fitting UNE-EN 12165. 1/4" male gas thread (BSP). Graduations available 0 to 2,5-4-6-10-16-25 bar. Rear outlet. Accuracy class 2,5.

Reference: 3826

See Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
3826 002 PRESSURE GAUGE D.63 ABS 1/4" BACK CONNECTION 0-2,5, 0-40 1 0.085 8/72
3826 004 PRESSURE GAUGE D.63 ABS 1/4" BACK CONNECTION 0-4, 0-60 1 0.081 1/132
3826 006 PRESSURE GAUGE D.63 ABS 1/4" BACK CONNECTION 0-6, 0-90 1 0.081 8/72
3826 010 PRESSURE GAUGE D.63 ABS 1/4" BACK CONNECTION 0-10, 0-150 1 0.082 8/72
3826 016 PRESSURE GAUGE D.63 ABS 1/4" BACK CONNECTION 0-16, 0-240 1 0.082 8/72
3826 025 PRESSURE GAUGE D.63 ABS 1/4" BACK CONNECTION 0-25, 0-400 1 0.081 1/132
