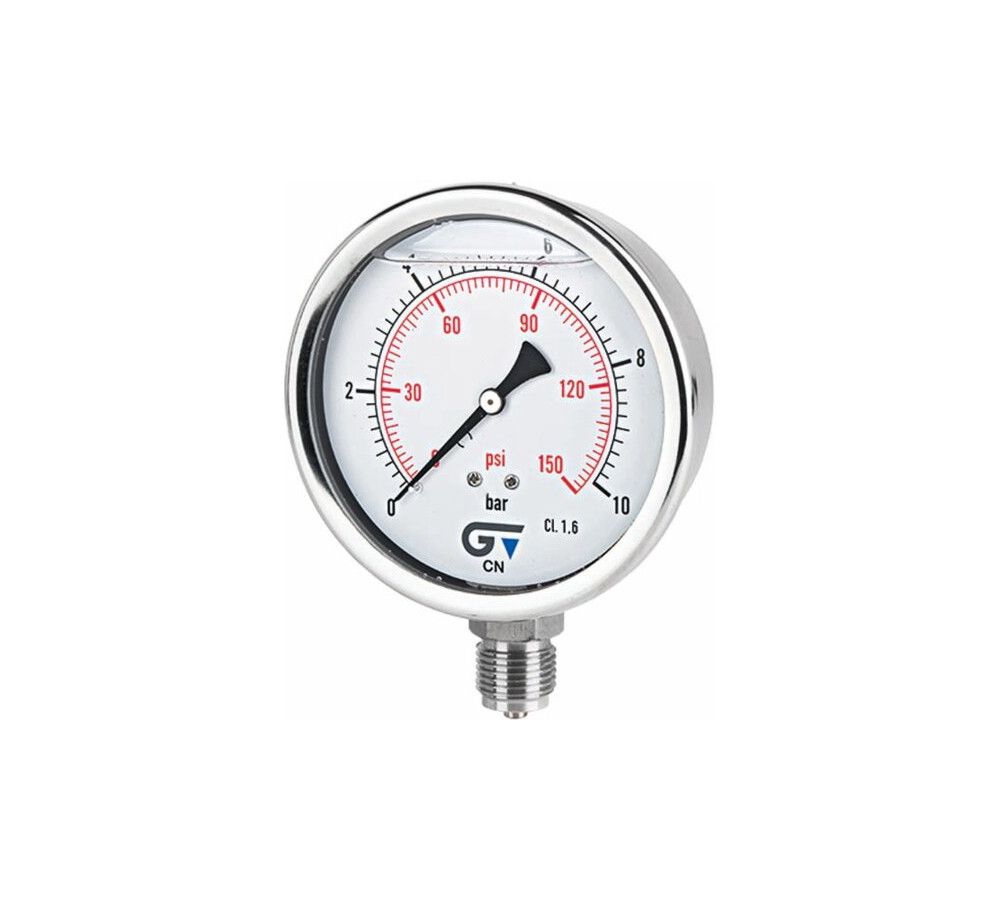

Pressure gauge Ø 100 with glycerine, bottom outlet, NPT thread 1/2".

AISI 304 stainless steel case, Bourdon tube and fitting in stainless steel. AISI 304. Thread 1/2" male (NPT). Graduations available 0 to 4-6-10-16-25-40 bar. Bottom outlet (radial). Accuracy class 1,6.

Reference: 3824N

See Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
3824N 004 PRESSURE GAUGE WITH GLYCERINE D.100NPT 0-4 0-60 1 0.551 1/44
3824N 006 PRESSURE GAUGE GLYCERINE D100NPT 0-6, 0-90 1 0.553 1/44
3824N 010 PRESSURE GAUGE W/GLYCERINE D100NPT 0-10B, 0-150PSI 1 0.548 4/36
3824N 016 PRESSURE GAUGE W/GLYCERINE D100NPT 0-16B, 0-240PSI 1 0.55 1/44
3824N 025 PRESSURE GAUGE W/ GLYCERINE D100NPT 0-25B, 0-400PSI 1 0.553 1/44
3824N 040 PRESSURE GAUGE W/GLYCERINE D100NPT 0-40B 0-600PSI 1 0.548 1/44
