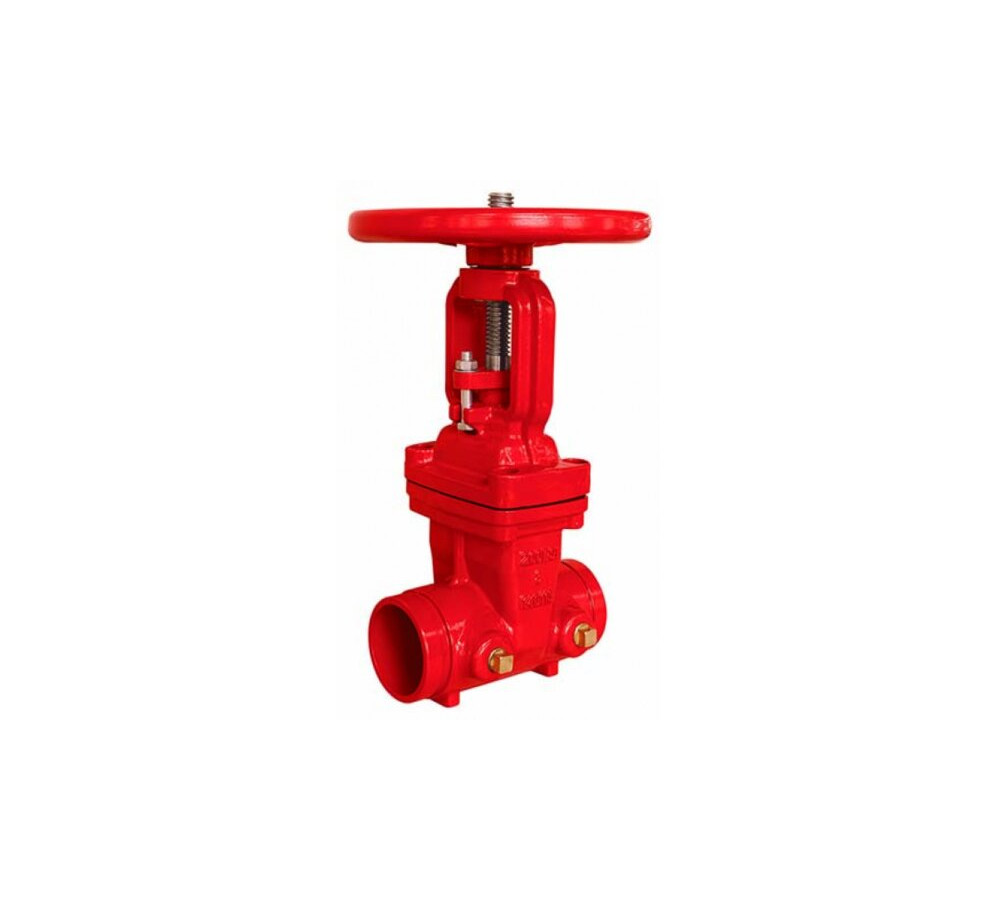

Gate valve with EPDM seat – Groove ends

Body and bonnet made of ductile iron GGG.40.
Design according to AWWA C515. Grooved standard AWWA C606.
Face to face according to ASME B16.10. Rising stem (OS&Y).
Working pressure 300 PSI. Working temperature: 0ºC +80ºC.
UL/FM certification.

Reference: 2100D

Installation Manual
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2100D 10 GATE VALVE WITH GROOVED ENDS DN65 UL/FM 1 15.76 1/1
2100D 13 GATE VALVE WITH GROOVED ENDS DN125 UL/FM 1 40 1/1
2100D 14 GATE VALVE WITH GROOVED ENDS DN150 UL/FM 1 47.7 1/1
