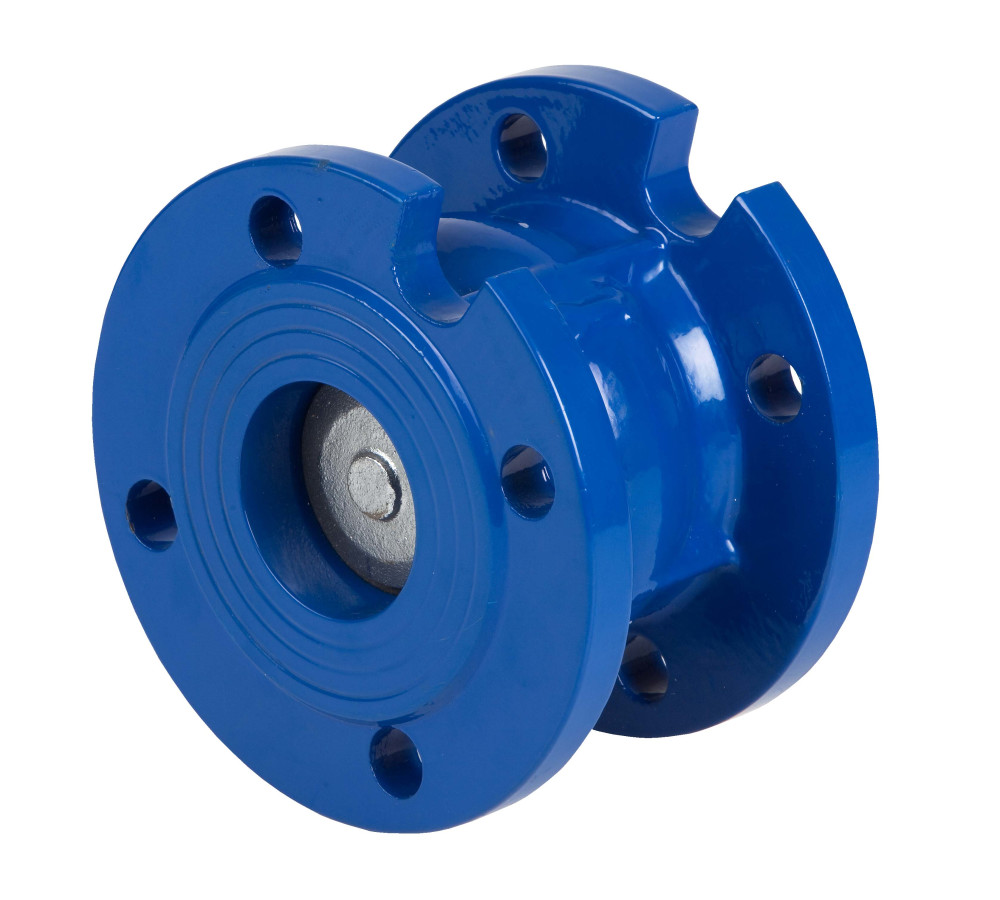

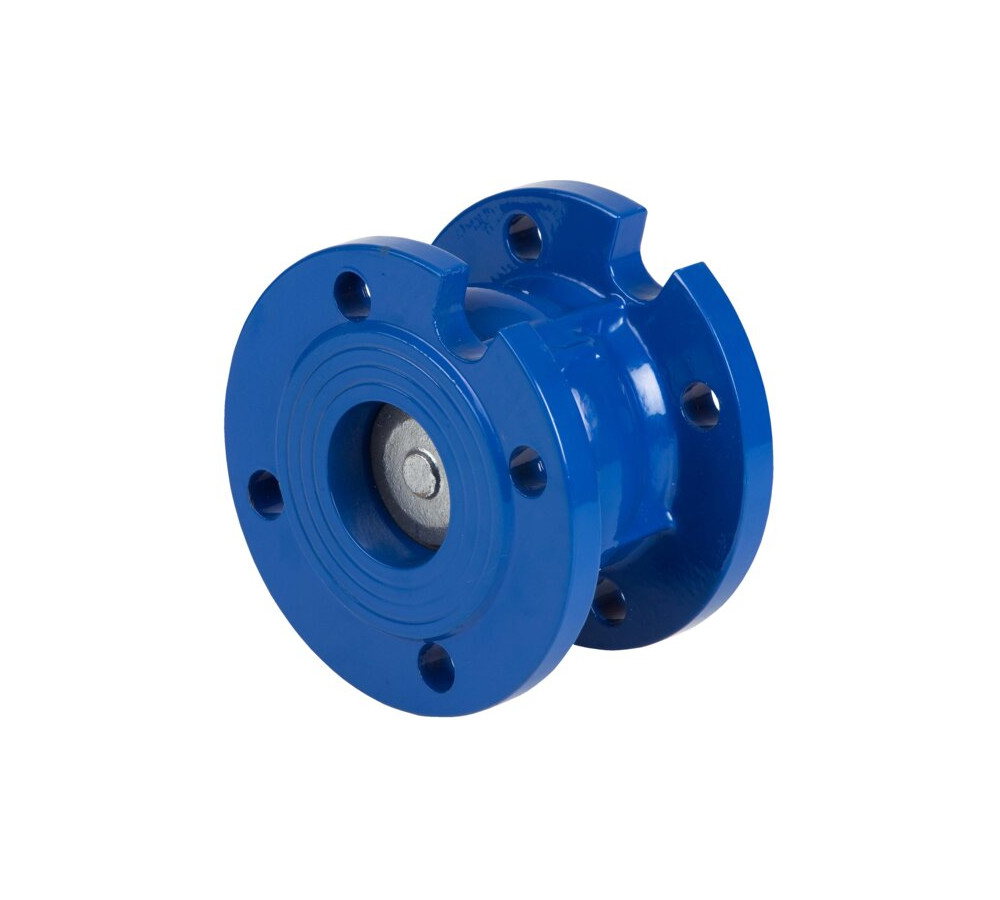

GENEBRE: Disk check valve with flanges DIN PN 16

Disk check valve with flanges DIN PN 16

Body and disk: cast iron GG-25. Guide: DN 50-80 brass DIN 17660. Guide: DN 100-250 cast iron GG-25. Bracket: brass DIN 17660. Soft sealing: NBR 80SH.

Reference: 2450

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
2450 09	DISK CHECK V. FLANGES 2"	1	5.074	1/3
2450 10	DISK CHECK V. FLANGES 2 1/2"	1	7.326	1/3
2450 11	DISK CHECK V. FLANGES 3"	1	9.347	1/2
2450 12	DISK CHECK V. FLANGES 4"	1	12.489	1/1
2450 13	DISK CHECK V. FLANGES 5"	1	20.684	1/1
2450 14	DISK CHECK V. FLANGES 6"	1	29.01	1/1
2450 16	DISK CHECK V. FLANGES 8"	1	47.06	1/1
2450 18	DISK CHECK V. FLANGES 10"	1	70.544	1/1

Reference

Size

Minimum purchase unit

Weight (Kg)

Box / carton

2450 09

DISK CHECK V. FLANGES 2"

5.074

1/3

2450 10

DISK CHECK V. FLANGES 2 1/2"

7.326

1/3

2450 11

DISK CHECK V. FLANGES 3"

9.347

1/2

2450 12

DISK CHECK V. FLANGES 4"

12.489

1/1

2450 13

DISK CHECK V. FLANGES 5"

20.684

1/1

2450 14

DISK CHECK V. FLANGES 6"

29.01

1/1

2450 16

DISK CHECK V. FLANGES 8"

47.06

1/1

2450 18

DISK CHECK V. FLANGES 10"

70.544

1/1
