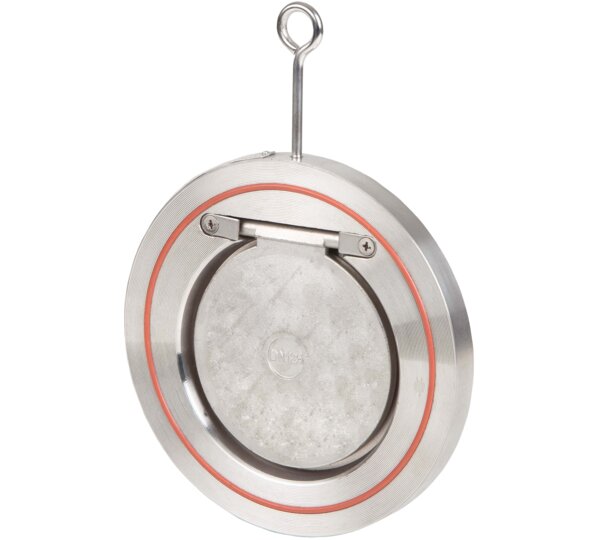

Wafer type. Disk check valve din PN 16

Body and disk in stainless steel AISI 316. O’ring: viton.
Mounting between flanges PN 10/16 - ANSI 150 lbs.

Reference: 2406

See Technical Sheet
Installation Manual
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2406 08 WAFER TYPE DISK CHECK VALVE DIN PN-16 1"1/2 1 0.43 1/27
2406 09 WAFER TYPE DISK CHECK VALVE DIN PN-16 2" 1 0.781 1/28
2406 10 WAFER TYPE DISK CHECK VALVE DIN PN-16 2"1/2 1 1.073 1/18
2406 11 WAFER TYPE DISK CHECK VALVE DIN PN-16 3" 1 1.266 1/12
2406 12 WAFER TYPE DISK CHECK VALVE DIN PN-16 4" 1 2.43 1/10
2406 13 WAFER TYPE DISK CHECK VALVE DIN PN-16 5" 1 3.151 1/7
2406 14 WAFER TYPE DISK CHECK VALVE DIN PN-16 6" 1 4.493 1/5
2406 16 WAFER TYPE DISK CHECK VALVE DIN PN-16 8" 1 7.658 1/2
2406 18 WAFER TYPE DISK CHECK VALVE DIN PN-16 10" 1 12.634 1/2
2406 20 WAFER TYPE DISK CHECK VALVE DIN PN-16 12" 1 19.329 1/2
