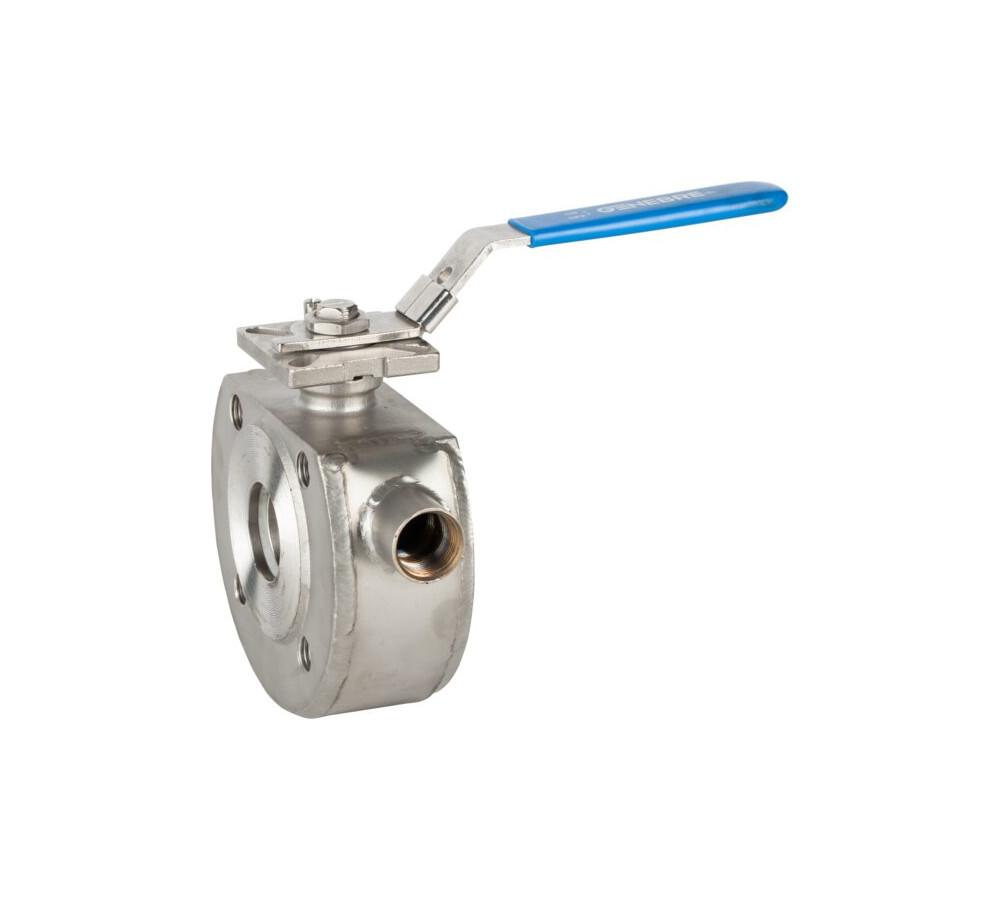

Wafer type - 1 Pc full bore ball valve with heating chamber. Mounting between flanges PN 16

Const. stainless steel CF8M (316) Investment casting. Ball and stem: stainless steel 316. Seats: PTFE + 15% GF. PN 16. Temp. -25 ºC +180 ºC. Direct assembling ISO 5211. Manually operated by handle with locking system.

Reference: 2119

Valve Technical Sheet
Installation Manual
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2119 04 V.ESF. P.T. 1-PZ C/C.CALEF. PN-16 1/2" 1 1.5 9/18
2119 05 V.ESF. P.T. 1-PZ C/C.CALEF. PN-16 3/4" 1 1.9 8/16
2119 06 V.ESF. P.T. 1-PZ C/C.CALEF. PN-16 1" 1 2.6 6/12
2119 07 V.ESF. P.T. 1-PZ C/C.CALEF. PN-16 1"1/4 1 3.85 1/8
2119 08 V.ESF. P.T. 1-PZ C/C.CALEF. PN-16 1"1/2 1 4.95 1/5
2119 09 V.ESF. P.T. 1-PZ C/C.CALEF. PN-16 2" 1 6.6 1/4
2119 10 V.ESF. P.T. 1-PZ C/C.CALEF. PN-16 2"1/2 1 10.3 1/3
2119 11 V.ESF. P.T. 1-PZ C/C.CALEF. PN-16 3" 1 14.35 1/2
2119 12 V.ESF. P.T. 1-PZ C/C.CALEF. PN-16 4" 1 20.25 1/2
