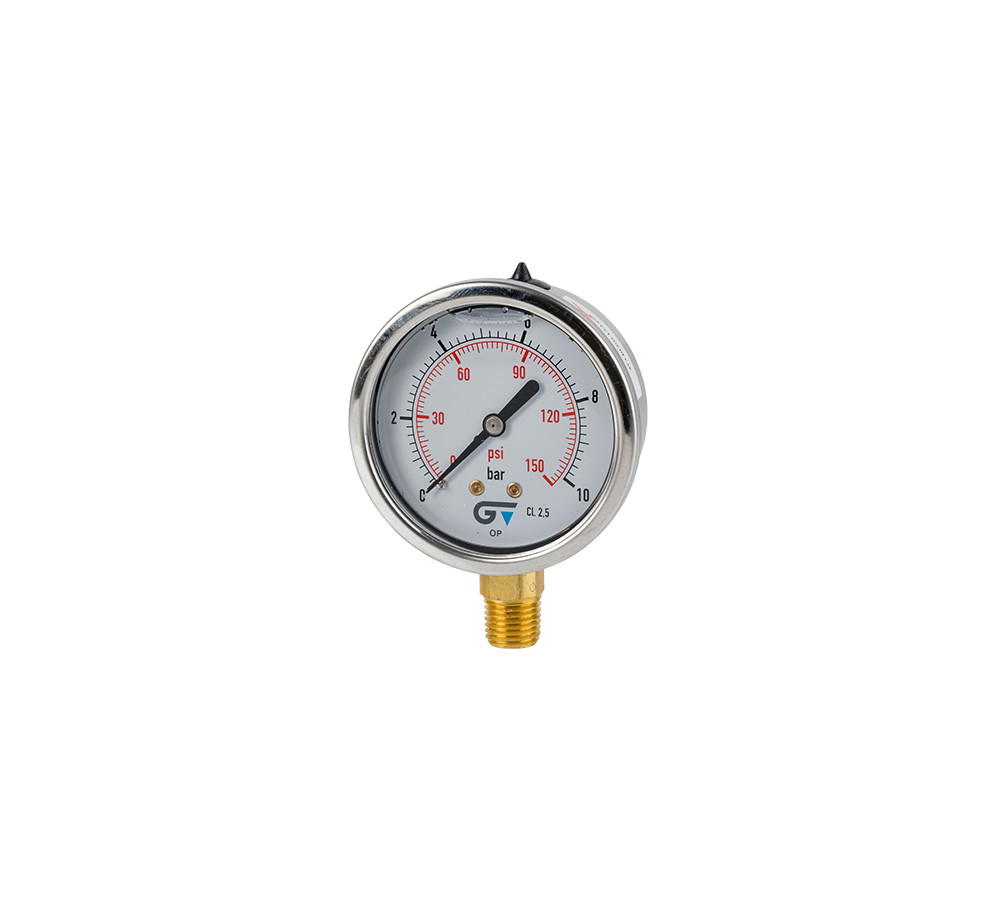

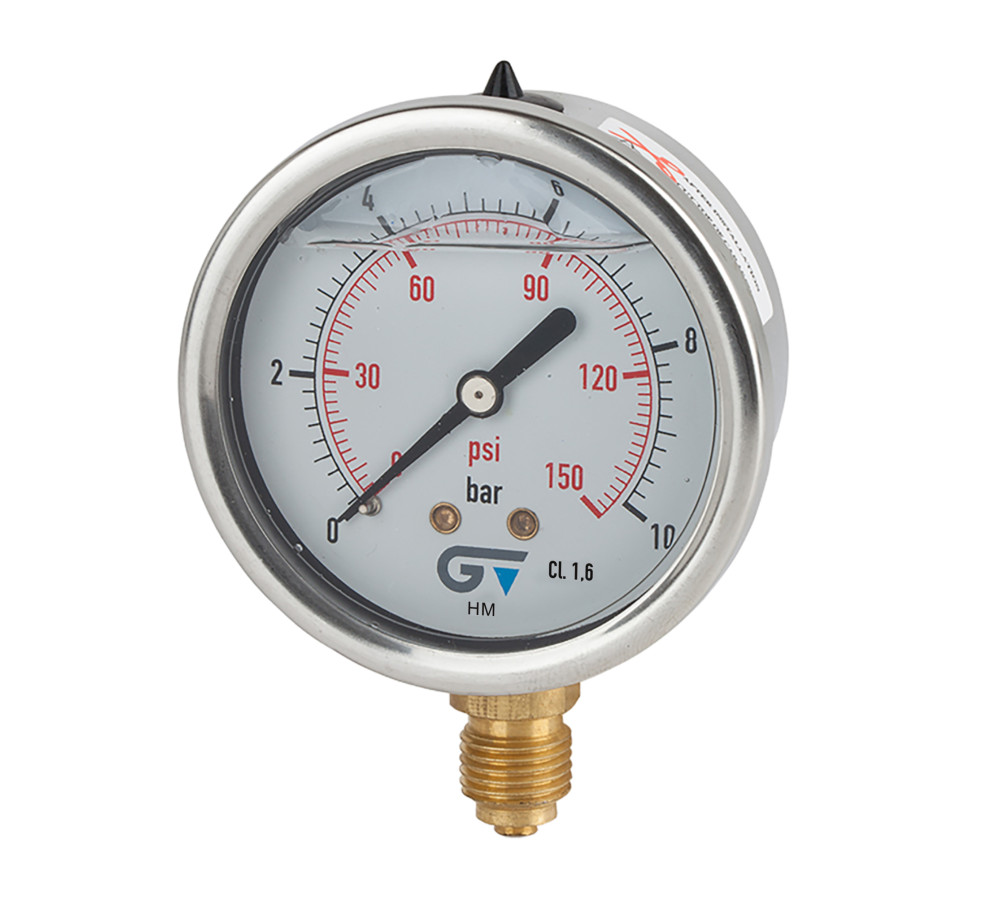

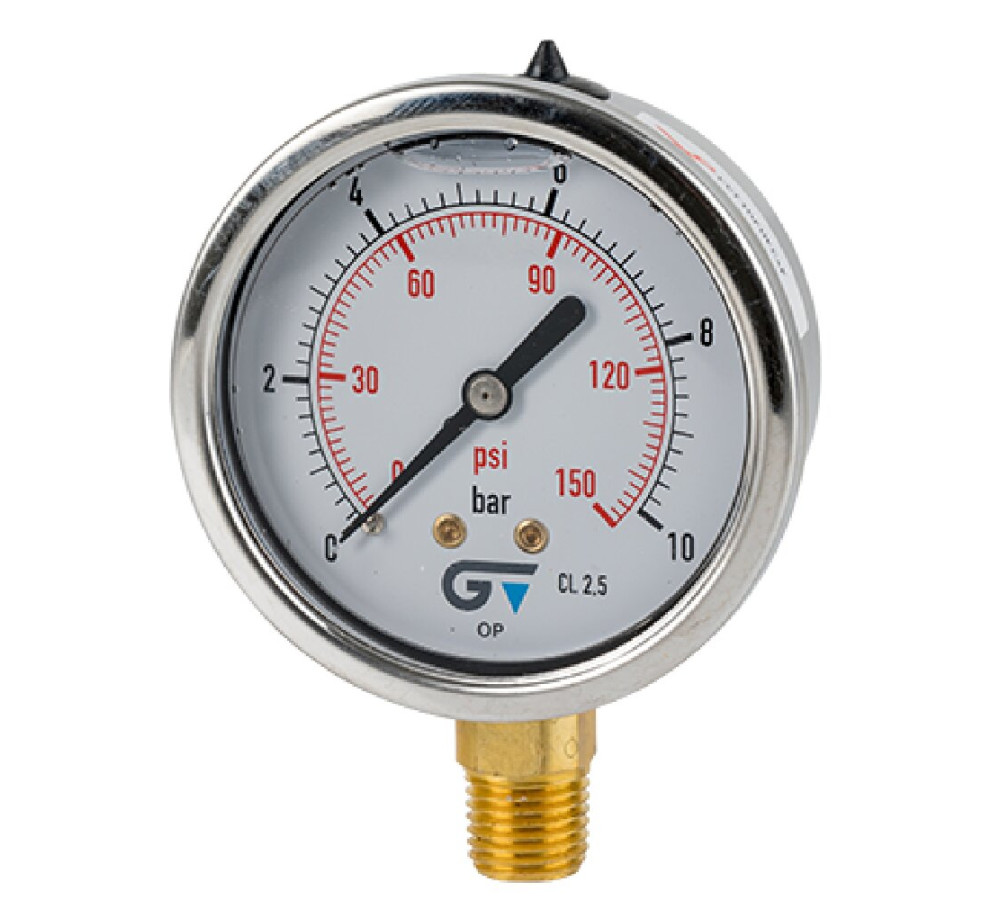

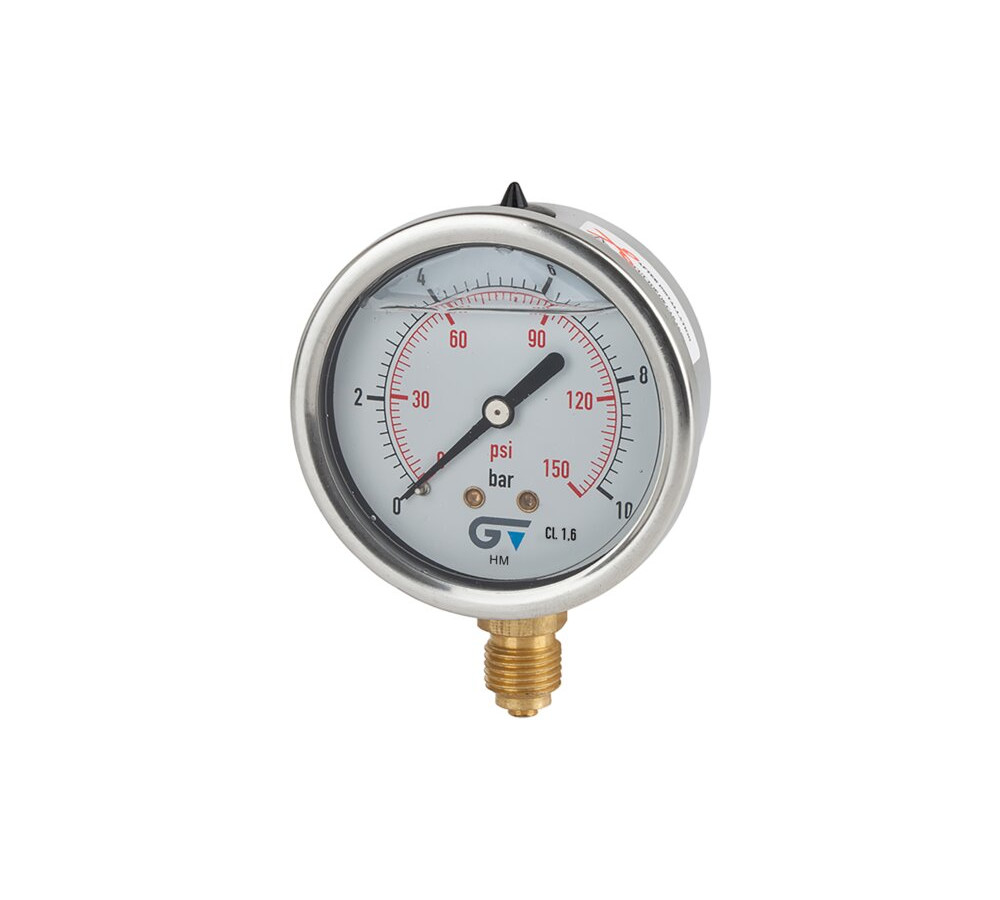

Pressure gauge Ø 63 with glycerine, bottom connection, BSP thread 1/4"

Stainless steel AISI 304 case. Brass bourdon pipe and connector UNE-EN 12165. 1/4” male gas threaded (BSP). Scale available from 0-2,5-4-6-10-16-25-60-100 bar. Bottom connection (radial). Precision class 2.5.

Reference: 3822

See Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
3822 002 PRESSURE GAUGE D 63 GLYCERINE 1 0.175 1/160
3822 004 PRESSURE GAUGE D 63 GLYCERINE 1 0.175 1/160
3822 006 PRESSURE GAUGE D 63 GLYCERINE 1 0.175 1/160
3822 010 PRESSURE GAUGE D 63 GLYCERINE 1 0.176 1/160
3822 012 PRESSURE GAUGE D 63 GLYCERINE 1 0.18 1/1
3822 016 PRESSURE GAUGE D 63 GLYCERINE 1 0.176 1/160
3822 025 PRESSURE GAUGE D 63 GLYCERINE 1 0.175 1/160
3822 060 PRESSURE GAUGE D 63 GLYCERINE 1 0.176 1/160
3822 100 PRESSURE GAUGE D 63 GLYCERINE 1 0.175 1/160
