Butterfly valve ANSI LUG type

Butterfly valve ANSI LUG type.
Body: ductil iron GGG-40. Disc: CF8M (316).
Seat: EPDM. Stem o’ring NBR.
Working temperature -20ºC +120ºC.
Mounting actuator according to ISO 5211 std.
Handle up to 10” with gear operator from 12”.

-4ºF + 248ºF

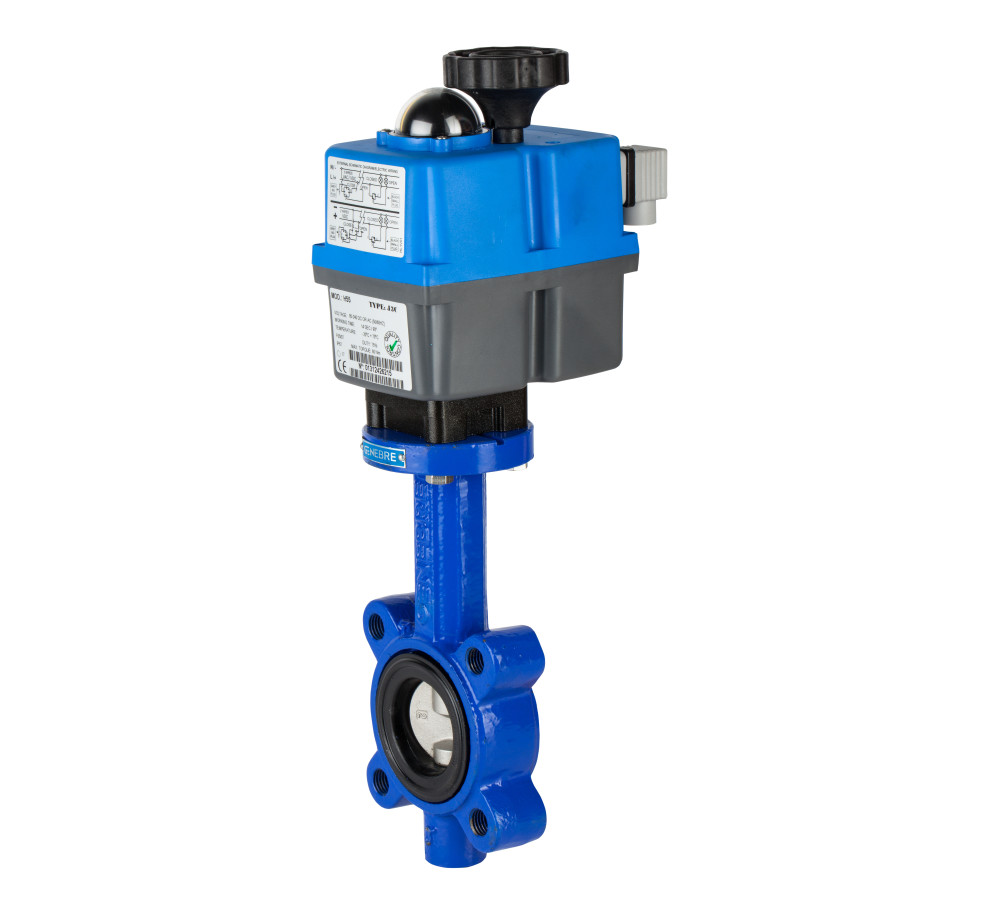

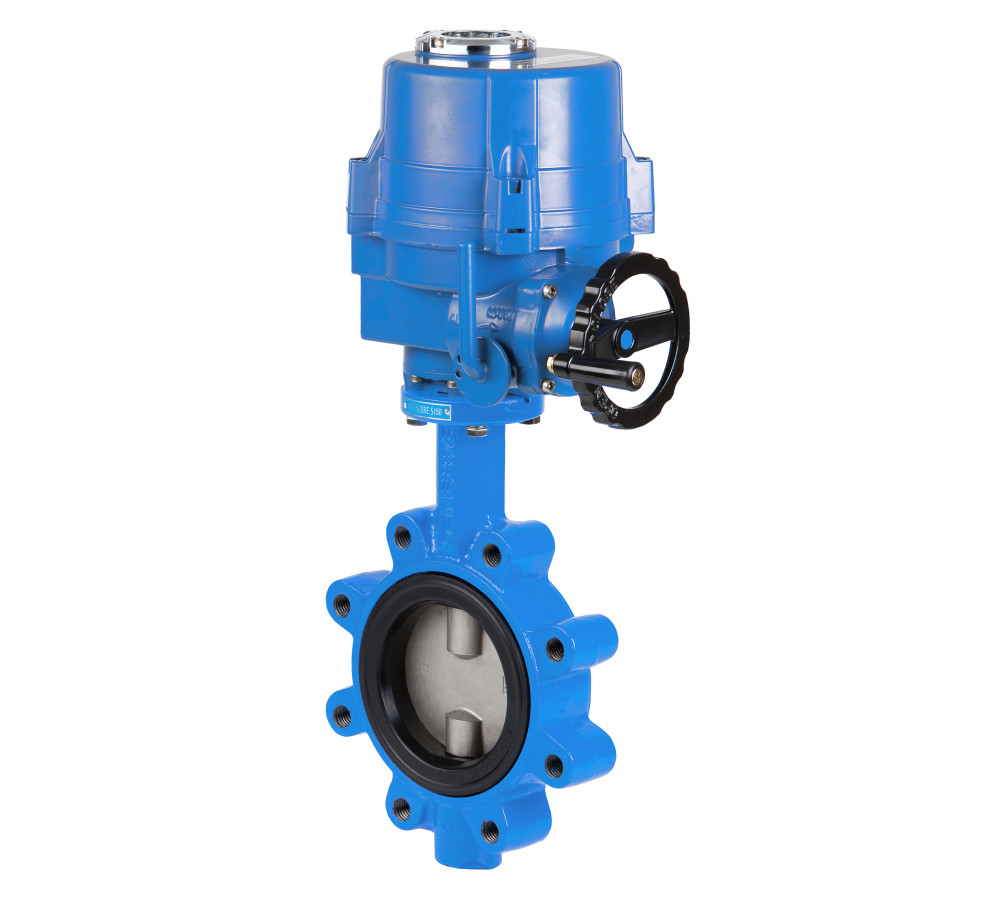

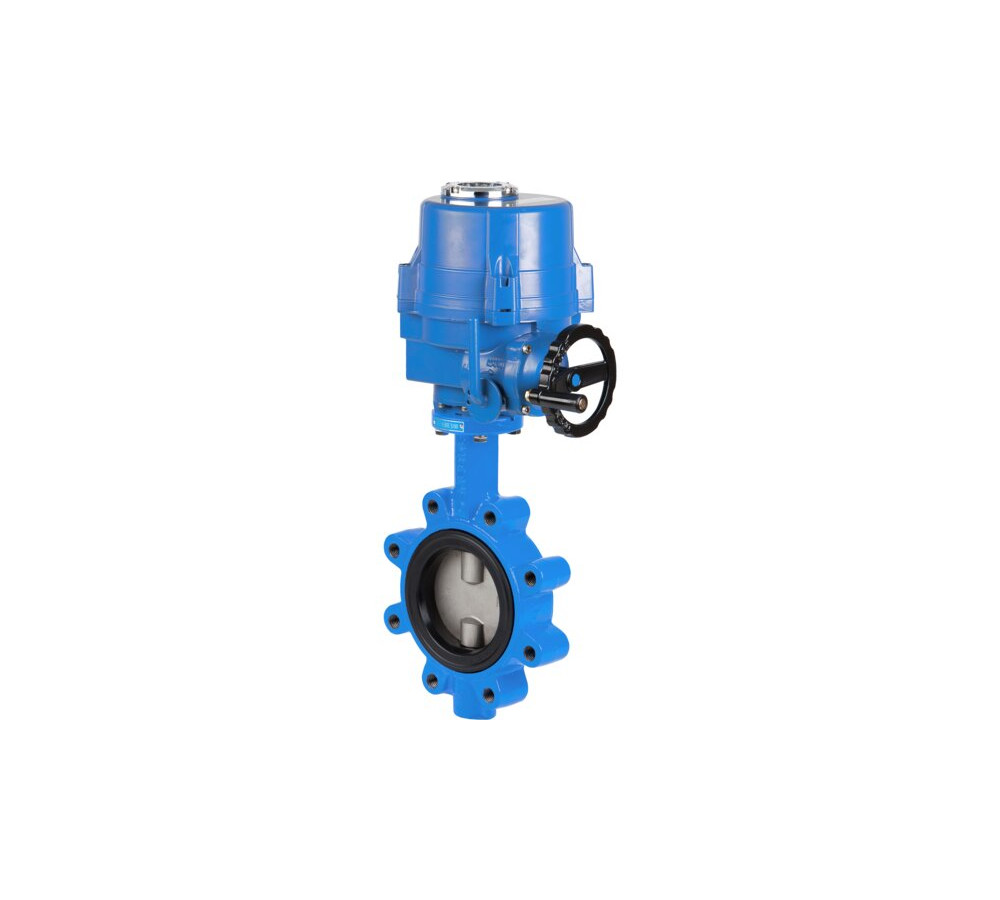

With GE multivoltage electric rotary actuator.
Required voltage must be specified.

Reference: 5608A

Butterfly valve DIN LUG type
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
5608A 16 55 V. 2108A 8" WITH GE025 1 33.9 1/1
5608A 18 56 V. 2108A 10" WITH GE035 1 49.55 1/1
5608A 20 62 V. 2108A 12" WITH GE050 1 76 1/1
5608A 22 57 V. 2108A 14" WITH GE080 1 97.5 1/1
5608A 24 60 V. 2108A 16" WITH GE110 1 126.4 1/1
