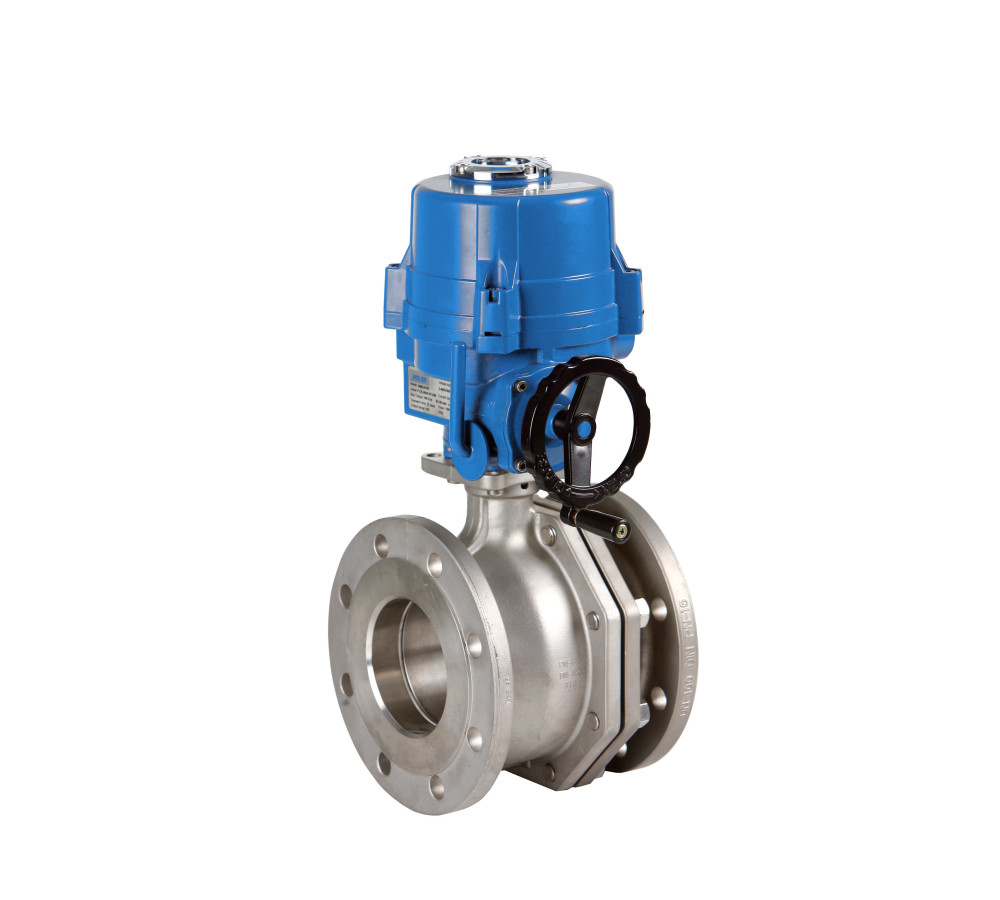

2 pieces full bore ball valve - flanges ends

2 pieces full bore ball valve - flanges ends.
Body: stainless steel. CF8M (316). Seats: PTFE + 15% GF. Stem o’ring: viton. Max. pressure: 40 BAR. temp.: -30ºC +180ºC. Manually operated by handle. L: DIN 3202 F-4 DN 65 DN0 100. F-5 DN 125 DN 200.
With triphasic servomotor (3-400 V). Other voltage please consult us.

Reference: 5629

Valve Technical Sheet
Actuator three phase data sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
5629 12 55 V. 2529 4" WITH GE025 1 47.25 1/1
5629 13 56 2PC FULL BORE B.V. FLANGES 5" 1 81.45 1/1
5629 14 57 2PC FULL BORE B.V. FLANGES 6" 1 107.06 1/1
