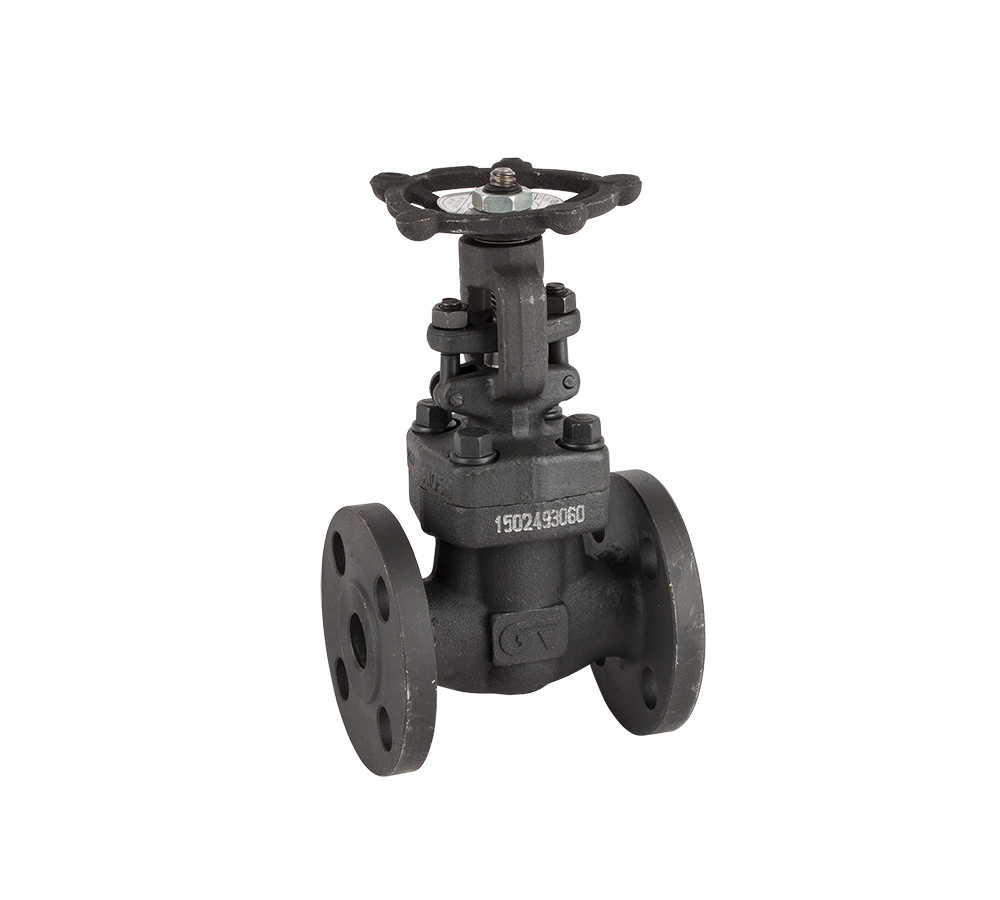

Gate valve with flanged ends ANSI 150 class

Body and bonnet made of forged steel ASTM A105N.
Seat material: stainless steel stellited.
Gate: ASTM A182 F6a (Trim #8/XU). Bolted bonnet.

Max. working pressure: 19bar/ 275 Psi
Max. working temperature: 420ºC / 788ºF

Reference: 2232A

See Technical Sheet
Installation Manual
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2232A 04 GATE V. A105 FLANGES A150 1/2" 1 2.78 1/1
2232A 05 GATE V. A105 FLANGES A150 3/4" 1 3.47 1/1
2232A 06 GATE V. A105 FLANGES A150 1" 1 5.2 1/1
2232A 07 GATE V. A105 ANSI 150 1 1/4" 1 7.64 1/1
2232A 08 GATE V. A105 ANSI 150 1 1/2" 1 9.775 1/1
2232A 09 GATE V. A105 FLANGES A150 2" 1 15.145 1/1
